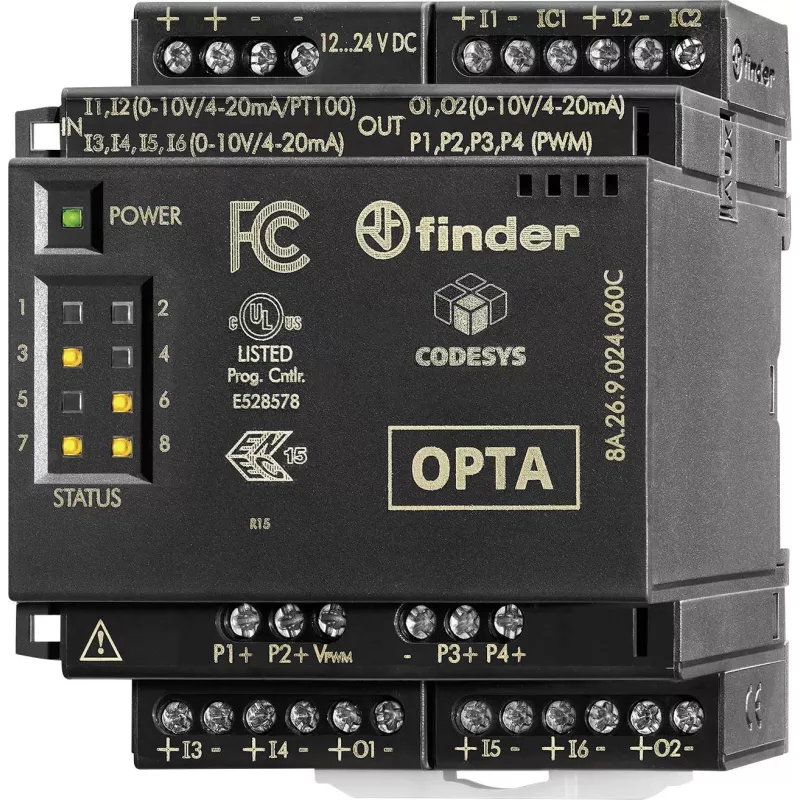

Finder 8A.26.9.024.060C analoog ingangsuitbreidingsmodule, 2 kanalen, 0-10 V DC / 0-20 mA, 12-bit, 24 V DC, DIN-rail

With 12-bit resolution and dual-channel capability, this module delivers precise analog signal acquisition for industrial control systems.

Overview

The Finder 8A.26.9.024.060C is an analog input expansion module designed to interface with PLCs and industrial controllers. It provides two independent input channels, each configurable for voltage (0-10 V DC) or current (0-20 mA DC) signals, making it versatile for a wide range of sensors and transmitters.

What stands out

• 2 analog input channels, individually selectable between voltage and current modes
• 12-bit resolution ensures accurate signal conversion
• Wide operating temperature range from -20 to +70 °C
• Compact DIN rail mounting for easy integration into control panels
• Low power consumption (< 1 W) and 24 V DC supply voltage

Technical details

• Input signal types: Voltage (0-10 V DC), Current (0-20 mA DC)
• Resolution: 12-bit
• Supply voltage: 24 V DC
• Power consumption: < 1 W
• Connection: Screw terminals
• Mounting: 35 mm DIN rail
• Operating temperature: -20 to +70 °C
• Storage temperature: -40 to +85 °C
• Protection degree: IP20
• Isolation: Input to system isolation
• Housing material: Self-extinguishing plastic
• LED indication: Power (green)

Our verdict

A reliable and precise analog input module for demanding industrial environments, offering flexibility and ease of installation.
