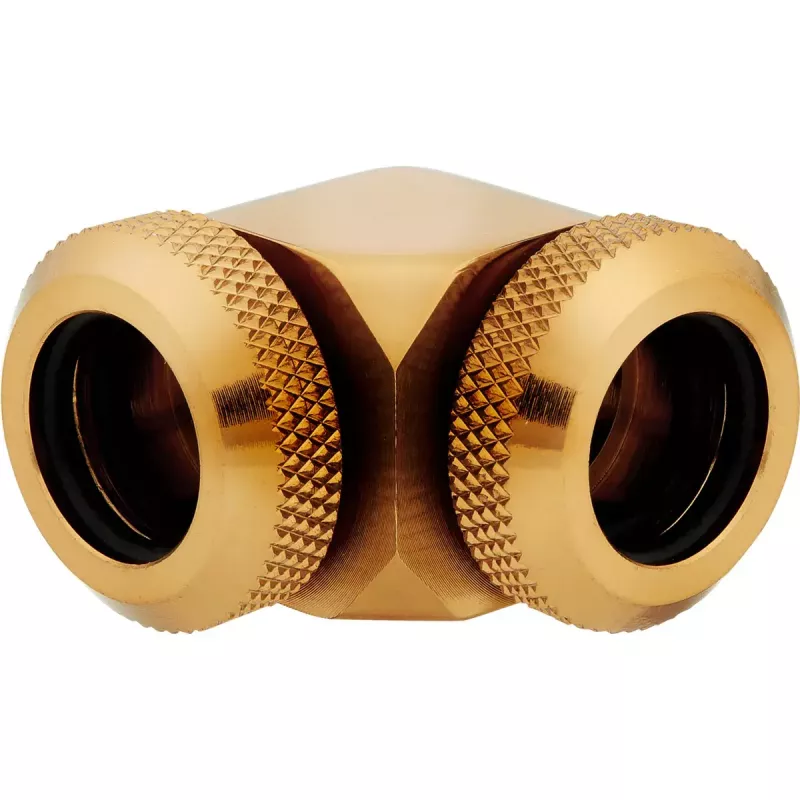

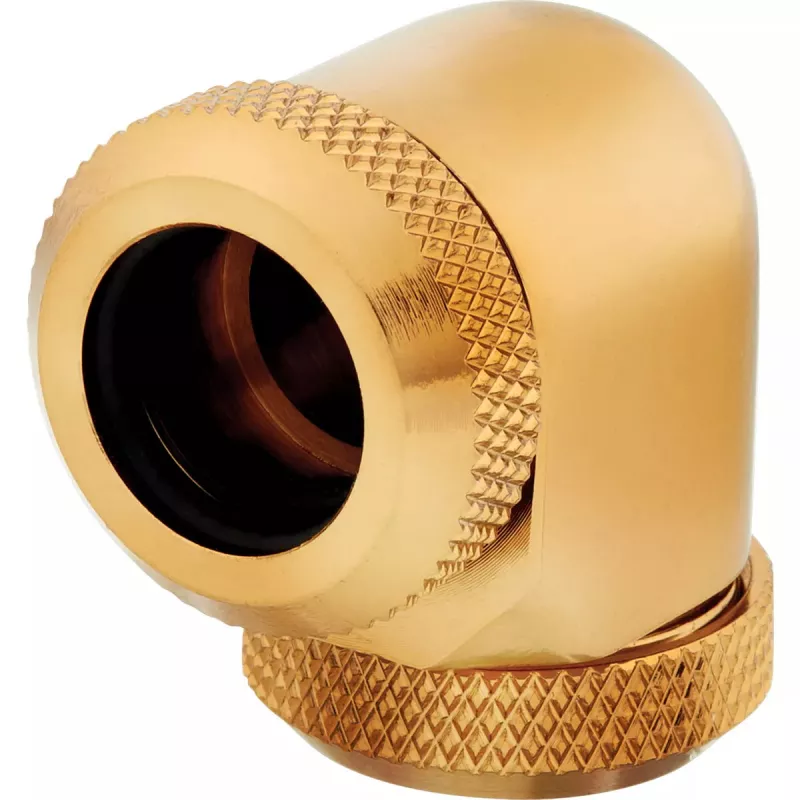

Fitting Corsair CX-9052023-WW

CORSAIR Hydro X Series XF Hardline fittings are brass connectors designed for rigid tubing custom liquid cooling systems. The CX-9052023-WW model includes two 90° hardline fittings with a 12 mm inner diameter and a gold finish, providing reliable connections and a consistent appearance in PC water-cooling loops.

Advantages

Made from high-quality brass with a durable gold finish, these fittings provide corrosion resistance and a uniform visual style. Each fitting uses a double O-ring compression seal to ensure leak-resistant connections and stable fluid flow in hardline tubing installations.

Suitable for

• Custom rigid (hardline) PC liquid cooling loops
• Connections requiring a 90° angle with 12 mm tubing
• Systems where a gold aesthetic finish is desired

Key specifications

• Brand: CORSAIR
• Model / MPN: CX-9052023-WW
• EAN: 0843591081559
• Material: Brass
• Finish: Gold

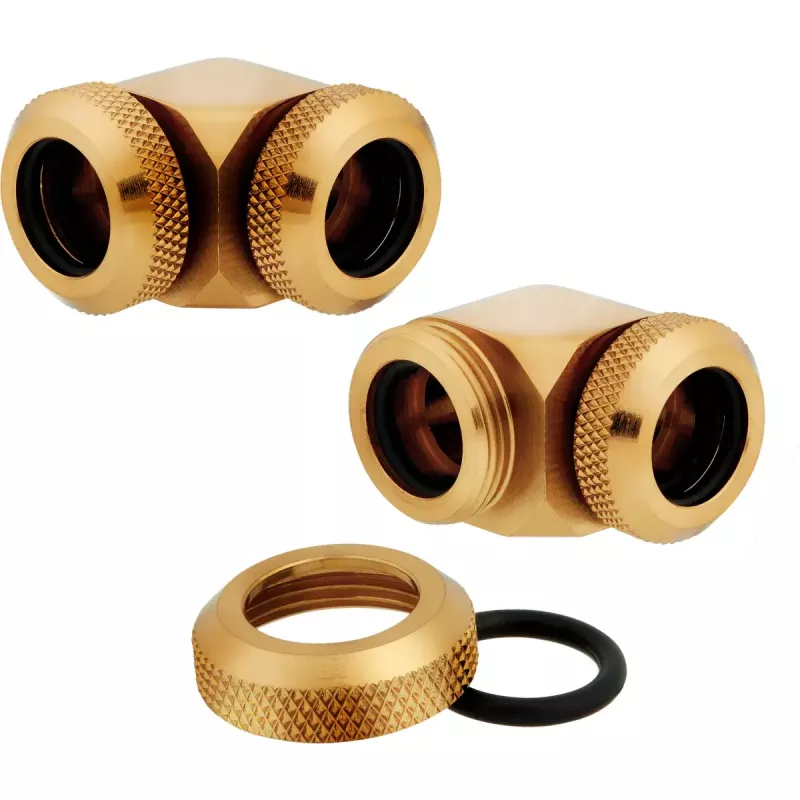

• Pack contents: 2 × 90° hardline fittings
• Inner diameter (ID): 12 mm

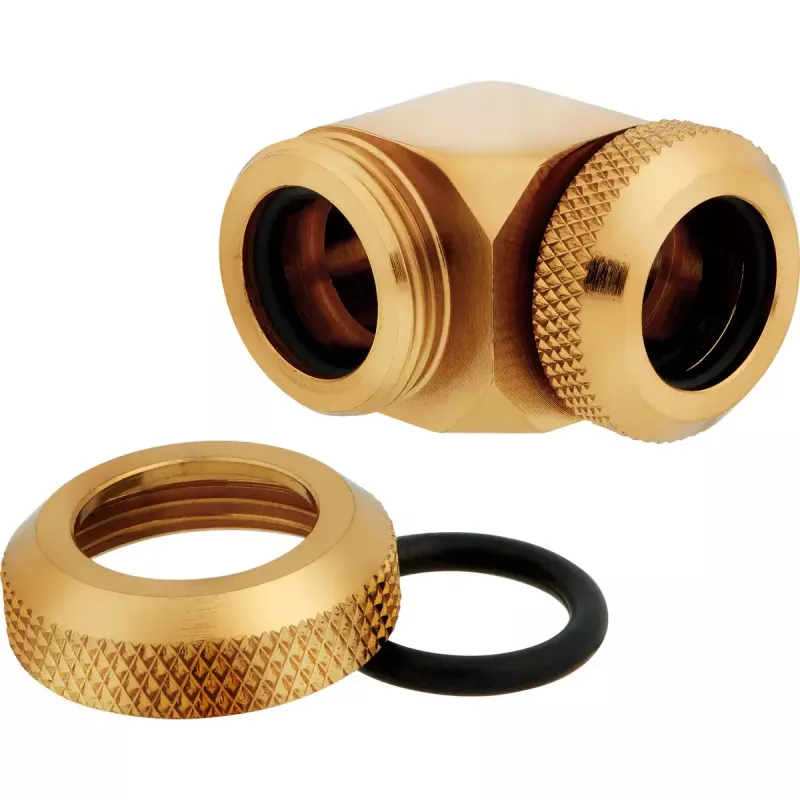

• Seal type: Double O-ring compression

How to use

Install these CX-9052023-WW fittings by cutting and deburring 12 mm hard tubing to the required lengths, then slide the tubing into the fitting until it seats against the O-rings. Tighten the compression mechanism according to your loop’s assembly method to secure a leak-resistant connection. Ensure the fittings are oriented for proper flow when assembling the loop.

Recommendations

Before filling the loop, perform a pressure or leak test with distilled water to verify all double O-ring seals are seated correctly. Use appropriate tubing bending tools and follow standard hardline assembly practices to avoid stressing the fittings or tubing.
