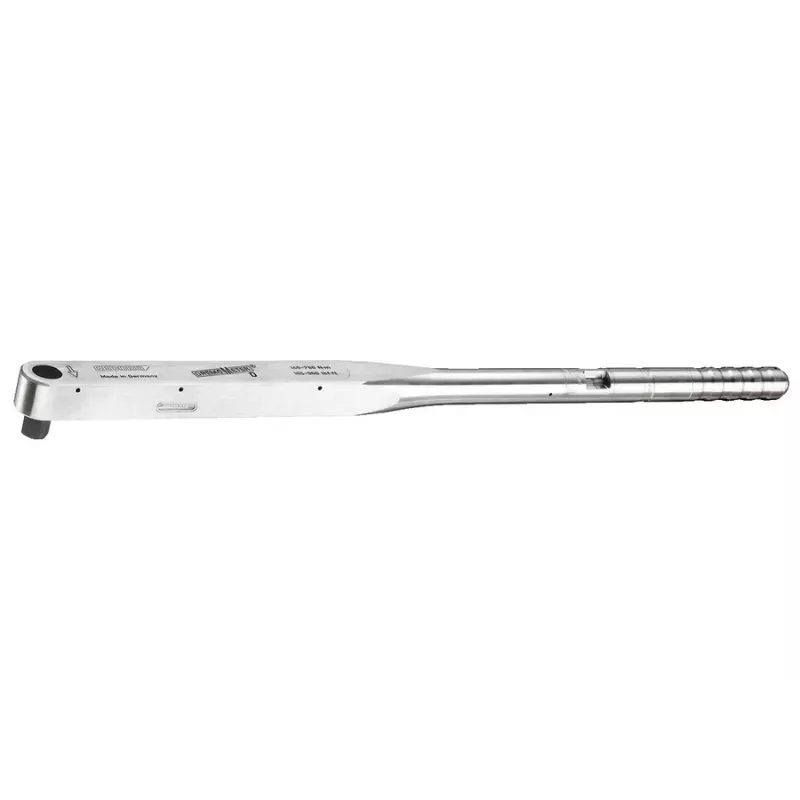

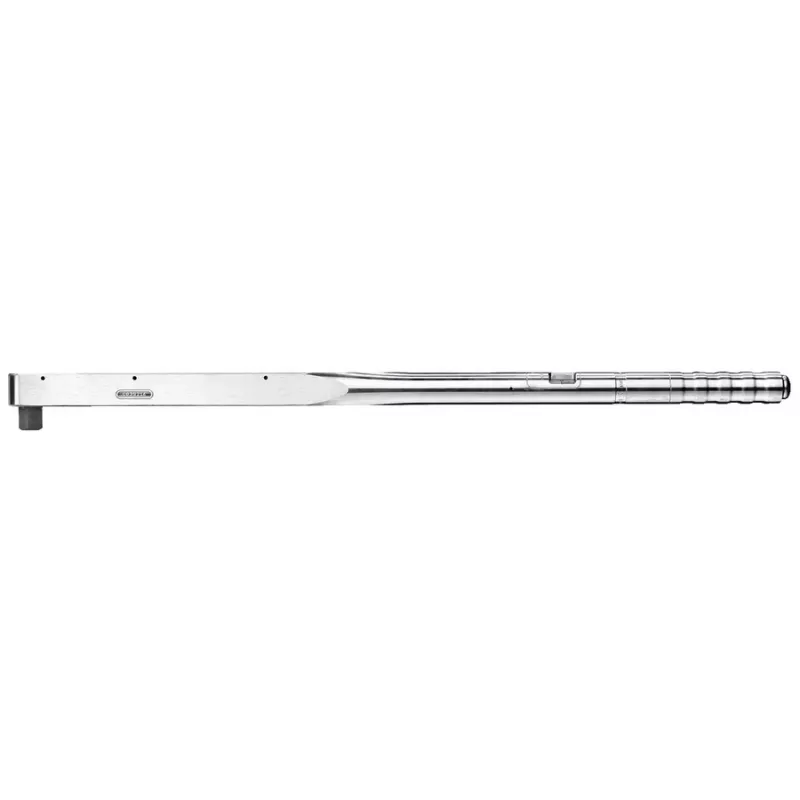

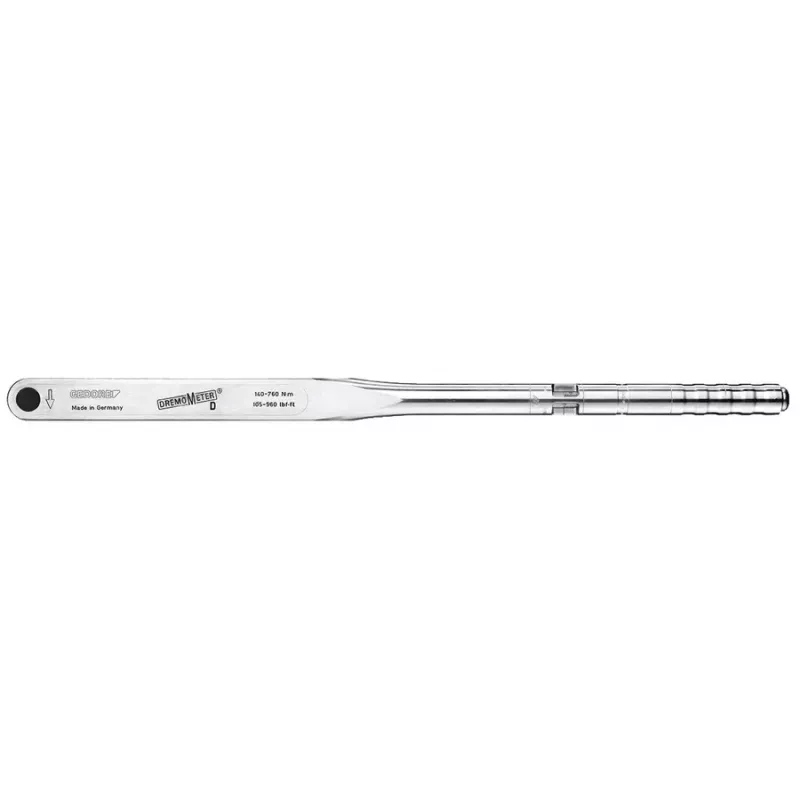

GEDORE DREMOMETER D 8563-10 momentsleutel 3/4 inch, 155-760 Nm (7691500)

This 3/4 inch drive torque wrench delivers precise, controlled tightening from 200 to 800 Nm (150 to 600 lbf·ft) with an accuracy of ±3% of the set value. The automatic short-path trigger releases with a clear tactile and audible signal, preventing over-tightening and ensuring repeatable results in demanding industrial and automotive applications.

Advantages

The dual scale (Nm and lbf·ft) and quick adjustment with locking mechanism allow for fast, secure setting changes. The ergonomic, non-slip handle provides a comfortable and secure grip, reducing operator fatigue during extended use. Supplied with a calibration certificate and a sturdy plastic case, this tool is ready for professional use right out of the box.

Suitable for

• Controlled screw tightening in industrial maintenance and assembly
• Automotive repair and heavy equipment service
• Applications requiring traceable torque documentation
• Use with 3/4" square drive sockets and accessories

Key specifications

• Drive size: 3/4 inch (19 mm)
• Torque range: 200 - 800 Nm (150 - 600 lbf·ft)
• Accuracy: ±3% of set value
• Standard: DIN EN ISO 6789:2017 Type II Class A
• Operating direction: clockwise
• Release mechanism: automatic short-path trigger
• Signal: tactile and audible
• Scale: dual scale (Nm and lbf·ft)
• Adjustment: quick adjustment with locking mechanism
• Drive type: square drive with pin-locking mechanism
• Material: high-quality steel
• Handle: ergonomic, non-slip
• Calibration certificate: included
• Storage: sturdy plastic case
• Length: 1200 mm

Recommendations

For professional torque applications requiring traceability and precision, pair with GEDORE 3/4" sockets and accessories. Always store in the provided case and recalibrate periodically to maintain accuracy.
