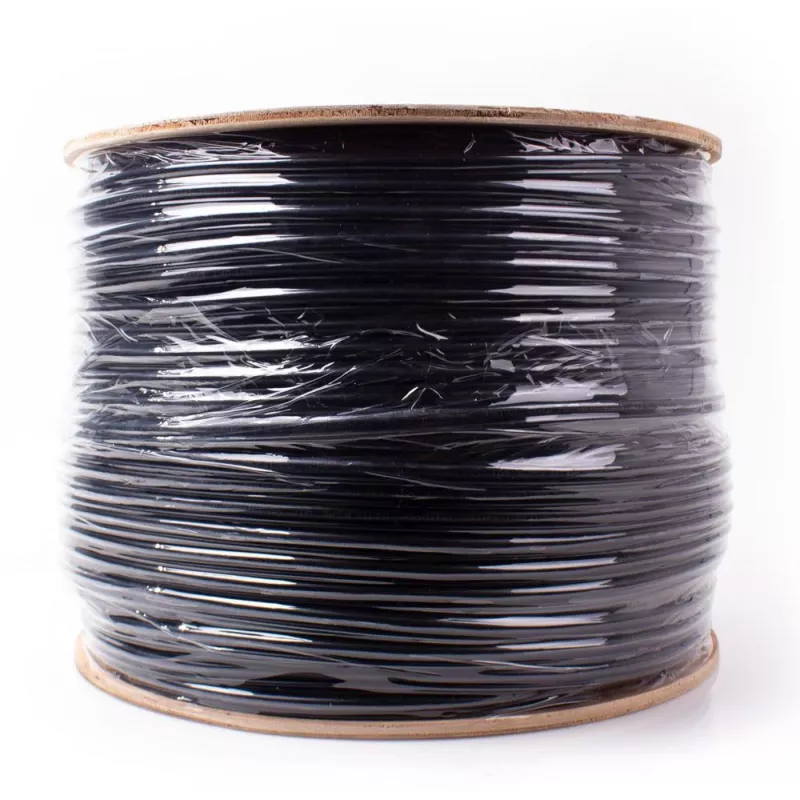

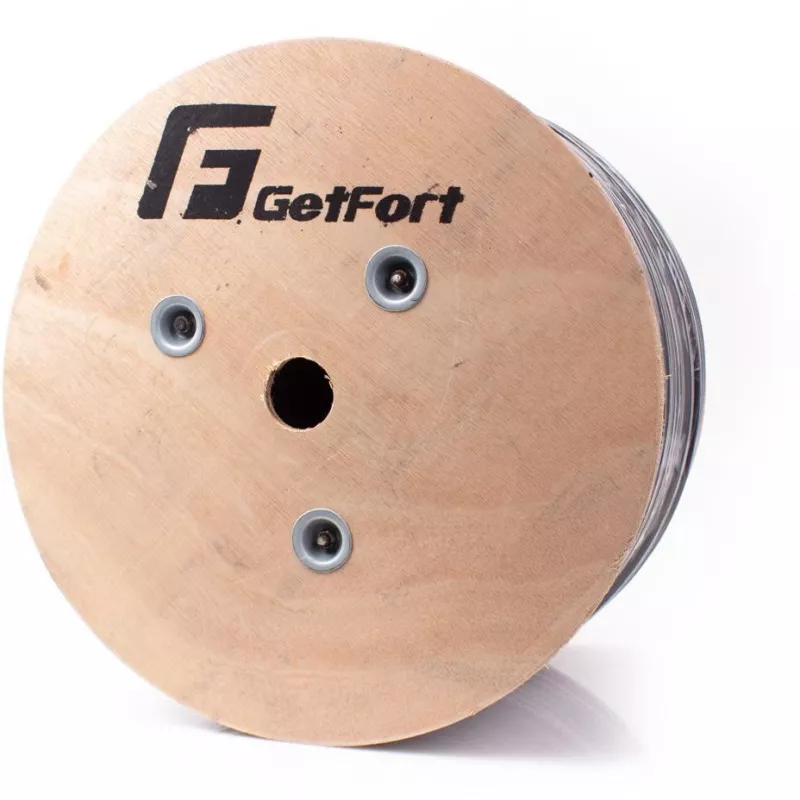

GETFORT Cat.5e U/UTP buitenkabel met draagkabel 305m zwart

The GETFORT GF-5UTP-E-UVL-V2-305 is a high-performance Cat.5e U/UTP outdoor cable designed for reliable data transmission in aerial installations. With a length of 305 meters (1000 feet) and an integrated steel messenger wire, this cable is ideal for long-distance outdoor runs where strength and durability are essential. The UV-resistant PE jacket protects against harsh weather conditions, while the solid bare copper conductors ensure excellent signal integrity for Gigabit Ethernet networks.

Advantages

This cable offers a cost-effective solution for outdoor networking without compromising on performance. The integrated messenger wire simplifies installation by eliminating the need for separate support structures. The UV-resistant jacket ensures long-term reliability in direct sunlight, and the dry core water blocking provides protection against moisture ingress.

Suitable for

• Outdoor aerial installations between buildings
• Long-distance Ethernet runs up to 100 meters per segment
• 10/100/1000BASE-T networks
• Security camera systems and outdoor access points

Key specifications

• Cable Standard: Cat.5e
• Shielding: U/UTP (Unshielded)
• Length: 305 m (1000 ft)
• Conductor: 24 AWG Solid Bare Copper
• Pairs: 4 Twisted Pairs
• Jacket: UV-Resistant PE, Black

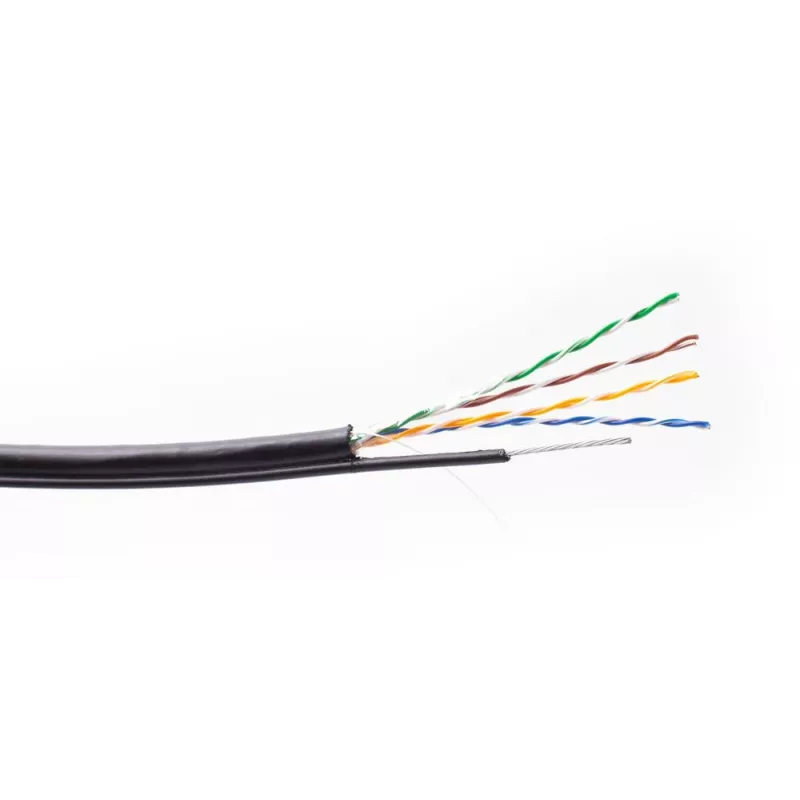

• Messenger Wire: Integrated Steel Support Wire
• Water Blocking: Dry Core
• Max Frequency: 100 MHz
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173

Recommendations

For optimal performance, ensure proper grounding and avoid sharp bends during installation. This cable is not suitable for direct burial; use appropriate conduit if underground installation is required.
