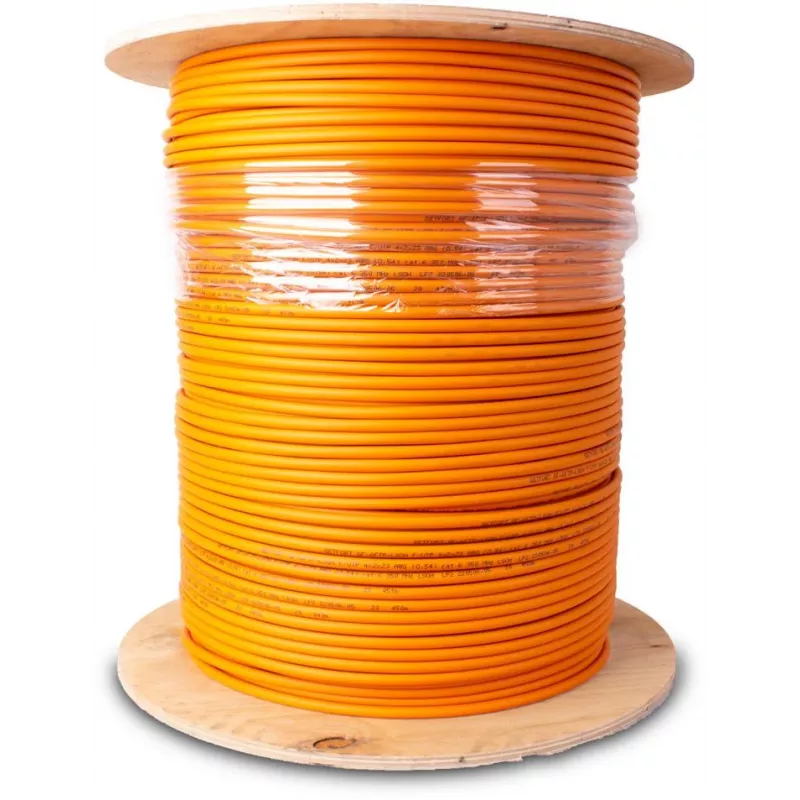

GETFORT Premium Cat.6 F/UTP LSOH netwerkkabel 500m

The GETFORT Premium Cat.6 F/UTP LSOH Network Cable is a high-performance installation cable designed for structured cabling systems. With a length of 500 meters, it is ideal for large-scale network deployments requiring reliable data transmission. The cable features solid bare copper conductors (AWG 23) and a foiled overall shield (F/UTP) to minimize electromagnetic interference, ensuring stable connectivity for Gigabit Ethernet and 10 Gigabit Ethernet applications up to 55 meters.

Advantages

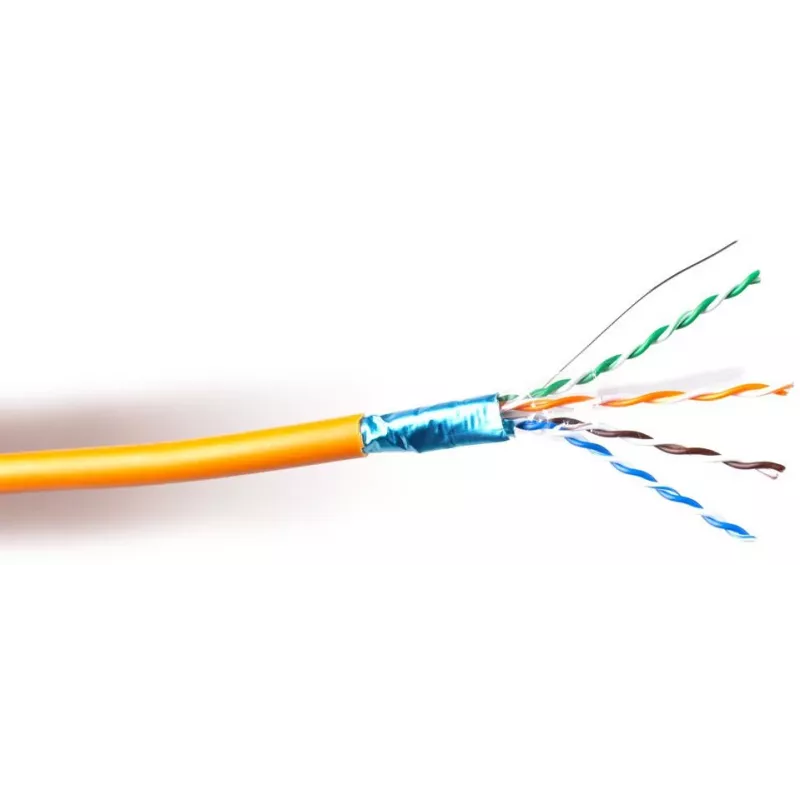

This cable offers excellent signal integrity and reduced crosstalk thanks to its 4-pair twisted pair construction and overall foil shielding. The LSOH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces by emitting low smoke and no toxic halogens in case of fire. It complies with international standards ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2, making it suitable for professional installations.

Suitable for

• Indoor network installations in offices, data centers, and commercial buildings
• 10GBASE-T applications up to 55 meters and 1GBASE-T up to 100 meters
• Structured cabling systems requiring high bandwidth (250 MHz)

Key specifications

• Cable Type: Twisted Pair Installation Cable
• Category: Cat.6
• Shielding: F/UTP (Foiled overall shield, Unshielded Twisted Pair)
• Conductor: Solid Bare Copper, AWG 23
• Number of Pairs: 4
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Length: 500 m
• Max Bandwidth: 250 MHz
• Max Data Rate: 10 Gigabit Ethernet (10GBASE-T) up to 55m, 1 Gigabit Ethernet (1GBASE-T) up to 100m
• Outer Diameter: 7.2 mm (approx.)
• Colour: Grey
• Flame Retardancy: IEC 60332-1
• Halogen Free: Yes (IEC 60754-2)
• Smoke Density: Low (IEC 61034-2)
• Operating Temperature: -20°C to +60°C

Recommendations

For optimal performance, use with compatible Cat.6 connectors and patch panels. Ensure proper installation practices to maintain cable specifications.
