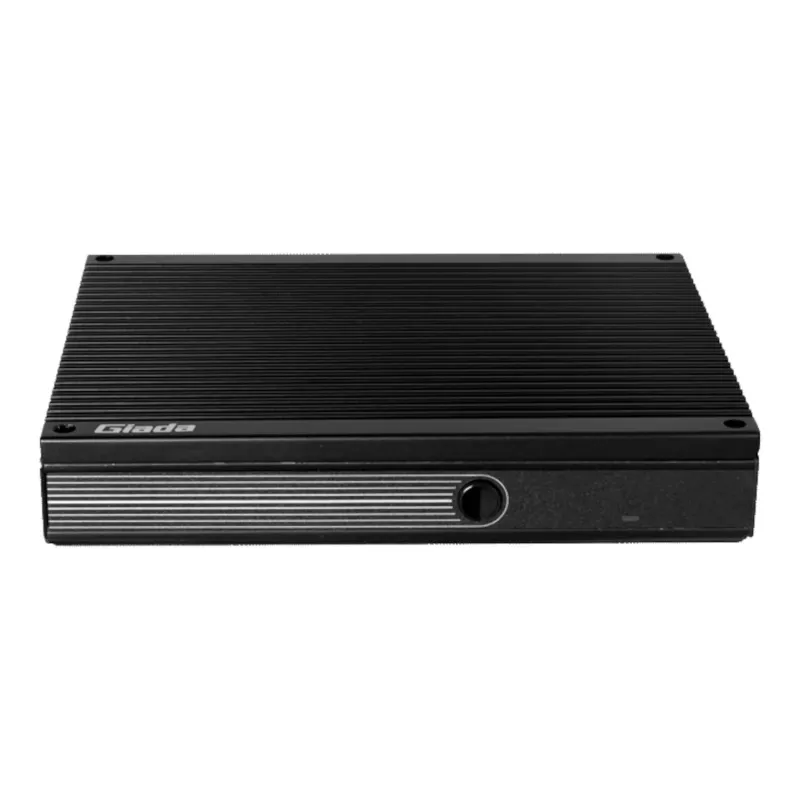

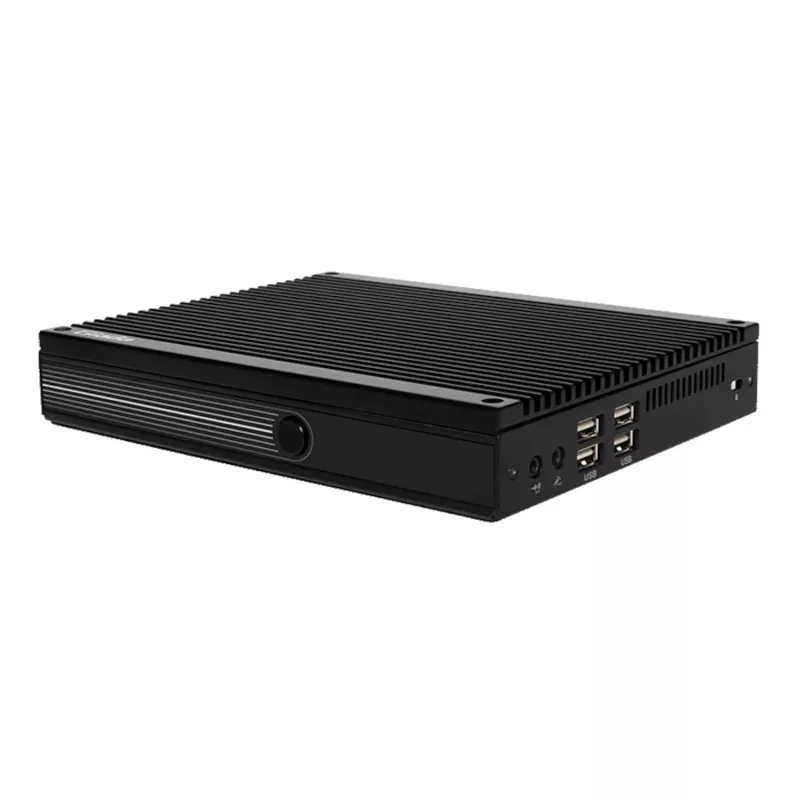

GIADA F109D Ventilatorloze Mini PC Barebone Intel Celeron N150

The GIADA F109D is a compact, fanless Mini PC barebone designed for silent and reliable operation. Powered by an Intel Celeron N150 processor with Intel UHD Graphics, it offers efficient performance for office, digital signage, and embedded applications. The barebone system includes no RAM, storage, or operating system, allowing full customization.

Advantages

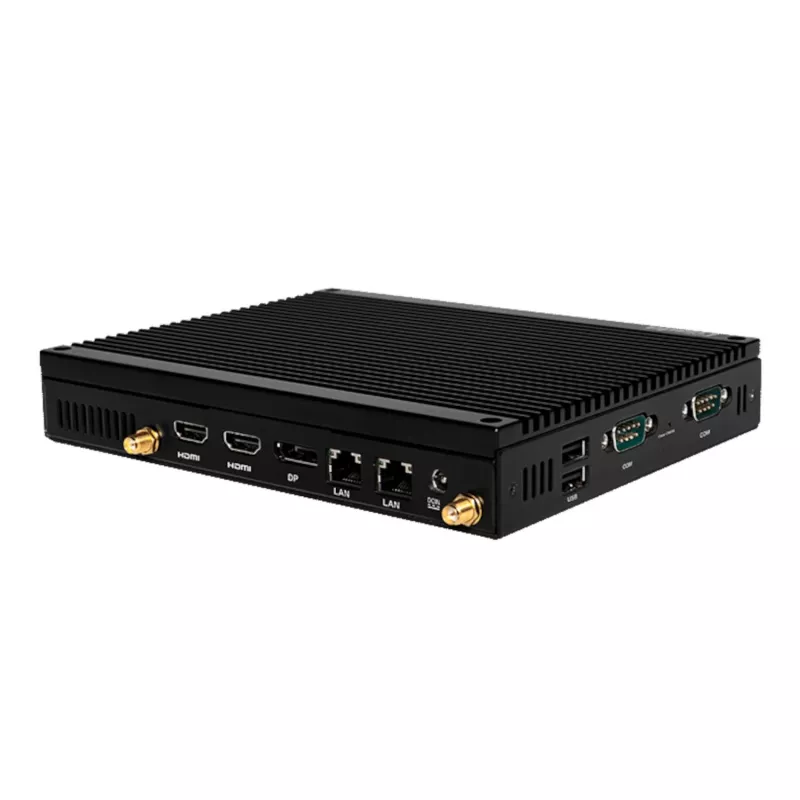

Fanless design ensures silent operation and reduced maintenance. Dual Gigabit Ethernet and multiple display outputs (HDMI 2.0, DisplayPort 1.4) provide versatile connectivity. Compact metal chassis supports VESA mounting for space-saving installation.

Suitable for

• Office workstations and thin clients
• Digital signage and kiosks
• Industrial automation and embedded systems
• Home servers and media centers

Key specifications

• Processor: Intel Celeron N150 (4 cores, 4 threads, 1.1 GHz base, 3.7 GHz turbo)
• Graphics: Intel UHD Graphics
• Memory: 1 x DDR5 SO-DIMM slot, max 16GB DDR5-4800MHz
• Storage: 1 x M.2 2280 (PCIe Gen3 x2 / SATA), 1 x SATA 3.0 for 2.5" drive
• Ethernet: 2 x Gigabit Ethernet (RJ45)
• Video Output: 1 x HDMI 2.0, 1 x DisplayPort 1.4
• USB Ports: 2 x USB 3.2 Gen 2, 2 x USB 2.0
• Serial Ports: 2 x RS232
• Wireless: M.2 2230 slot for optional Wi-Fi/Bluetooth module
• Cooling: Fanless
• Chassis Material: Metal
• Power Input: DC 12V
• OS Compatibility: Windows 10/11, Linux

Recommendations

This barebone system requires DDR5 SO-DIMM RAM and M.2 or SATA storage to be installed. Ideal for users seeking a quiet, low-power, and customizable Mini PC.
