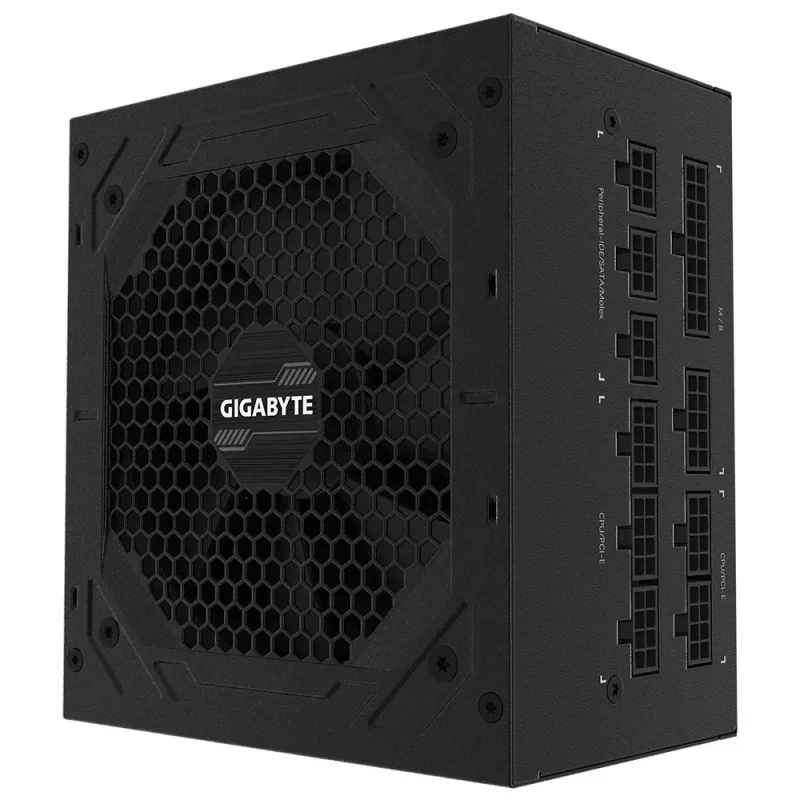

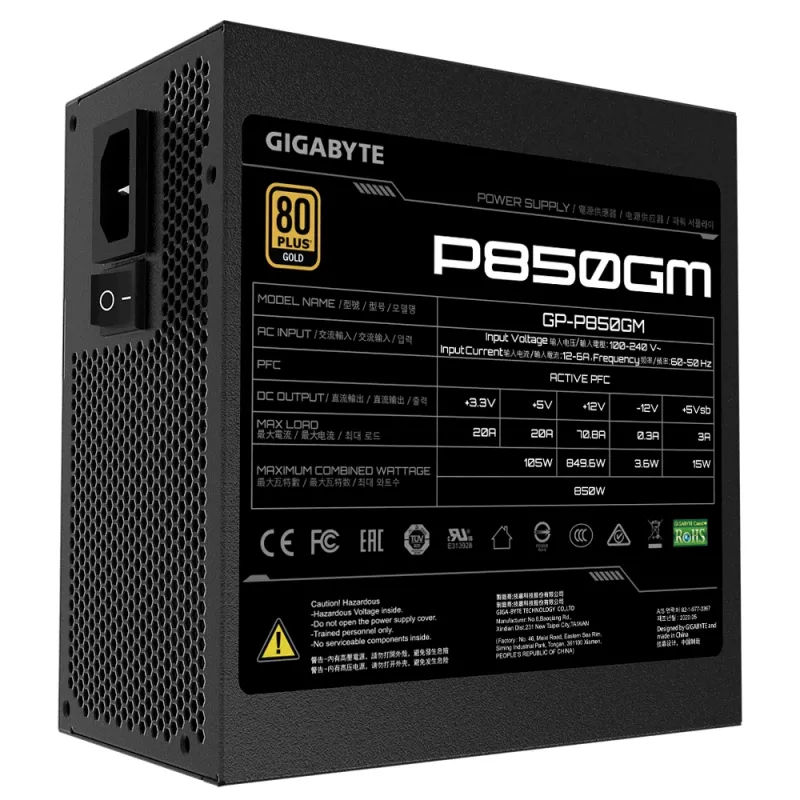

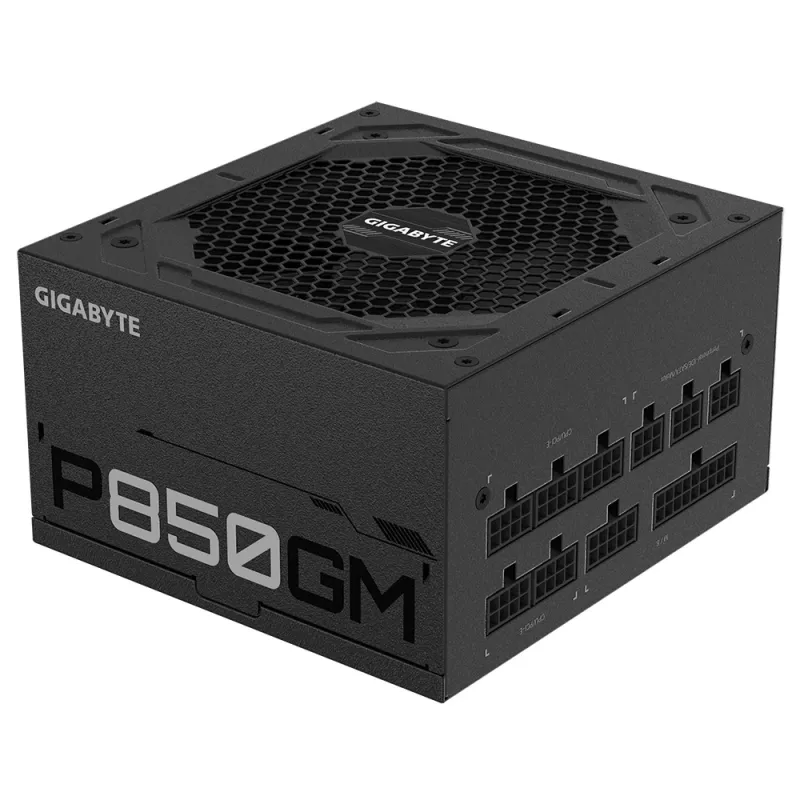

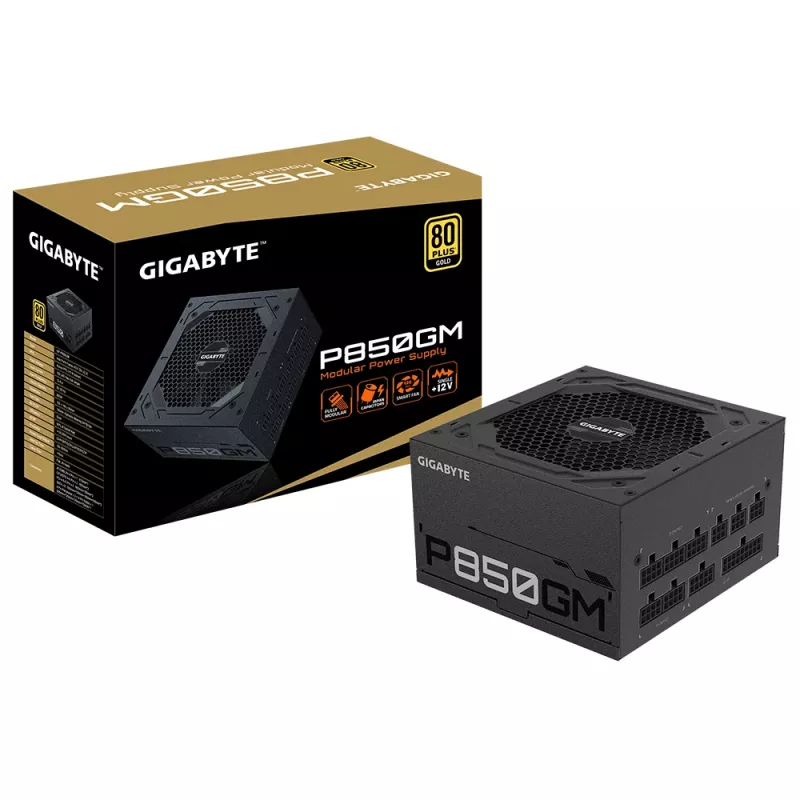

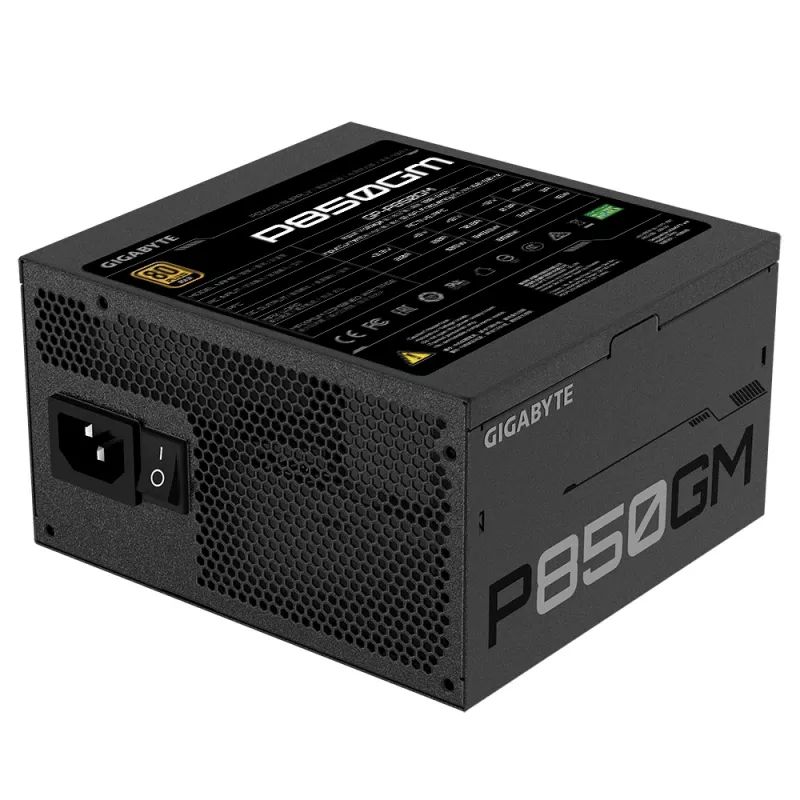

GIGABYTE P850GM voeding 850 W 20+4 pin ATX ATX zwart

GIGABYTE P850GM voeding 850 W 20+4 pin ATX ATX zwart
GIGABYTE P850GM voeding 850 W 20+4 pin ATX ATX zwart
GIGABYTE P850GM voeding 850 W 20+4 pin ATX ATX zwart
GIGABYTE P850GM voeding 850 W 20+4 pin ATX ATX zwart
GIGABYTE P850GM voeding 850 W 20+4 pin ATX ATX zwart
GIGABYTE P850GM voeding 850 W 20+4 pin ATX ATX zwart
GIGABYTE P850GM voeding 850 W 20+4 pin ATX ATX zwart
GIGABYTE P850GM voeding 850 W 20+4 pin ATX ATX zwart
GIGABYTE P850GM voeding 850 W 20+4 pin ATX ATX zwart
GIGABYTE P850GM voeding 850 W 20+4 pin ATX ATX zwart
GIGABYTE P850GM voeding 850 W 20+4 pin ATX ATX zwart
GIGABYTE P850GM voeding 850 W 20+4 pin ATX ATX zwart
GIGABYTE P850GM voeding 850 W 20+4 pin ATX ATX zwart
GIGABYTE P850GM voeding 850 W 20+4 pin ATX ATX zwart
123,41 €
FULLY MODULAR DESIGNAll the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.80 PLUS GOLD CERTIFIED80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power... Lees meer
Voorraad Niet op voorraadGeen voorraad Code 2556207 Merk GIGABYTE Model GP-P850GM Garantie 2 jaar
CategoriePC-voedingen

Bezorging & retourneren

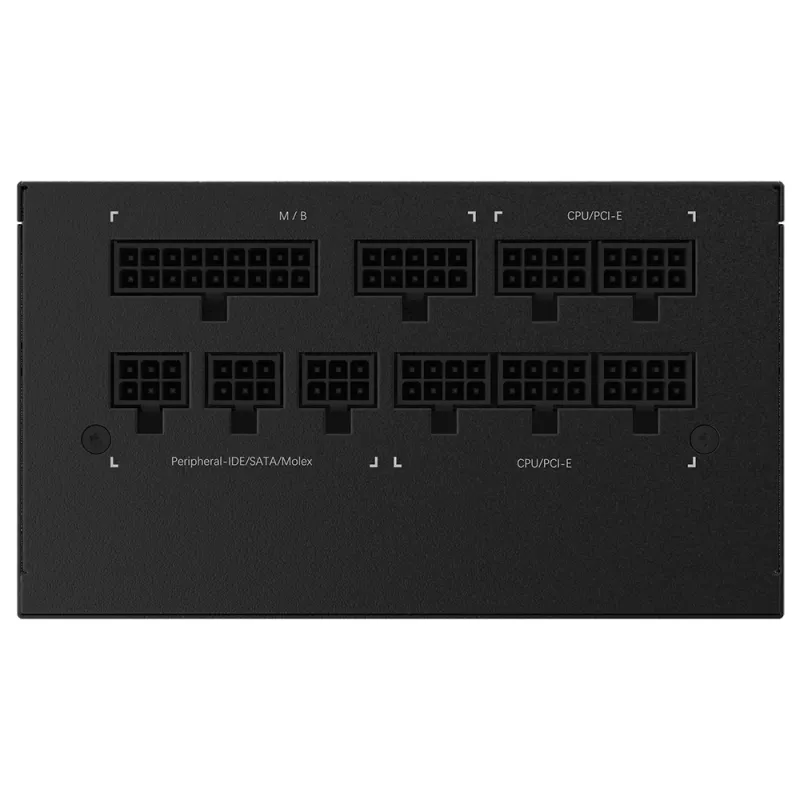

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.

HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

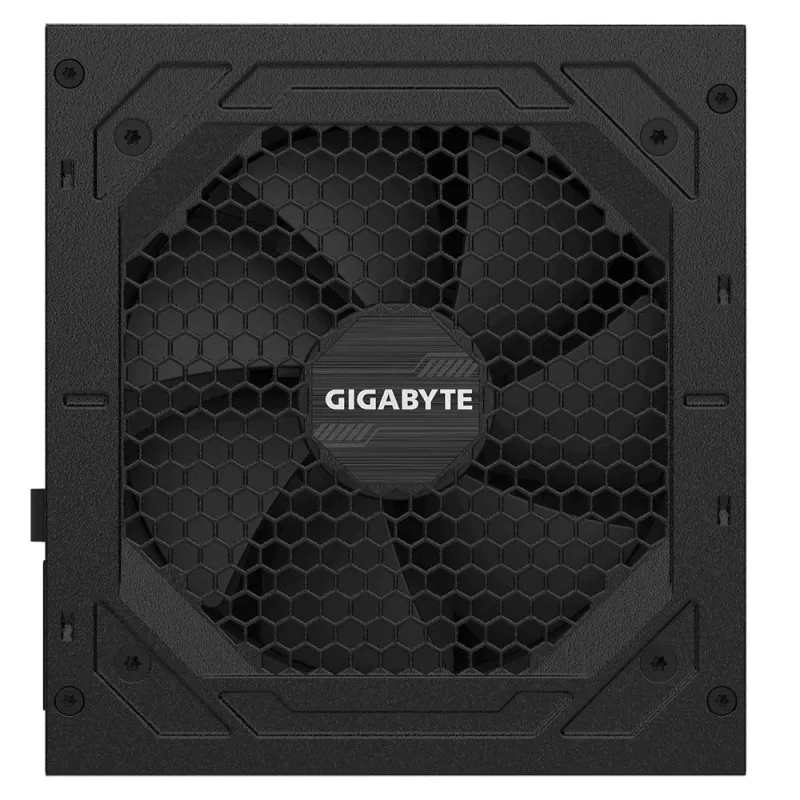

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.

SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

DIMENSIONS
Compact size to fit any small chassis.
Belangrijkste kenmerken
  • 80 PLUS Gold certified
  • Fully modular design
  • 120mm Smart Hydraulic Bearing (HYB) Fan
  • Main Japanese capacitors
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • Compact size
  • 850 W 100 - 240 V 50 - 60 Hz
  • Motherboard power connector: 20+4 pin ATX
  • PC ATX 80 PLUS Gold
  • Active 12 cm
  • Black
Specificaties
80 PLUS-certificering
80 PLUS Gold
Aan-/uitschakelaar
Yes
Aantal SATA-stroomconnectoren
8
Aantal ventilatoren
1 fan(s)
AC-ingangsfrequentie
50 - 60 Hz
AC-ingangsspanning
100 - 240 V
ATX-stroomconnector (20+4-pins)
Yes
ATX-versie
2.31
Breedte
150 mm
Connector floppydrive
Yes
CPU-voedingsaansluiting (4+4-pins)
Yes
Diepte
140 mm
Doel
PC
Gecombineerd vermogen (+12V)
846 W
Gecombineerd vermogen (+3,3V)
120 W
Gecombineerd vermogen (+5V)
120 W
Gecombineerd vermogen (+5Vsb)
15 W
Gecombineerd vermogen (-12V)
3.6 W
Geharmoniseerd Systeem (HS)-code
84733020
Gemiddelde tijd tussen storingen (MTBF)
100000 h
Hold-up time
16 ms
Hoogte
86 mm
Kabellengte CPU-voeding
60 cm
Kabellengte diskettestation
89 cm
Kabellengte moederbordvoeding
61 cm
Kabellengte PCI Express-voeding
75 cm
Kabeltype
Fully-Modular
Lengte SATA-stroomkabel
600,750,900 mm
Locatie ventilator
Top
Max. uitgangsstroom (+12V)
70.5 A
Max. uitgangsstroom (+3,3V)
20 A
Max. uitgangsstroom (+5V)
20 A
Max. uitgangsstroom (+5Vsb)
3 A
Max. uitgangsstroom (-12V)
0.3 A
Maximale ingangsstroom (@110V)
12 A
Maximale ingangsstroom (@220V)
6 A
PCI Express-stroomconnectoren (6+2-pins)
4
Perifere (Molex) stroomconnectoren (4-pins)
3
Productkleur
Black
Rendement
90%
Stroombeveiligingsfuncties
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Stroomconnector floppydrive
2
Totaalvermogen
850 W
Type koeling
Active
Type Power Factor Correction (PFC)
Active
Type verpakking
Box
Ventilatordiameter
12 cm
Vermogensfactor
0.9
Voedingsaansluiting moederbord
20+4 pin ATX
Vormfactor voeding (PSU)
ATX

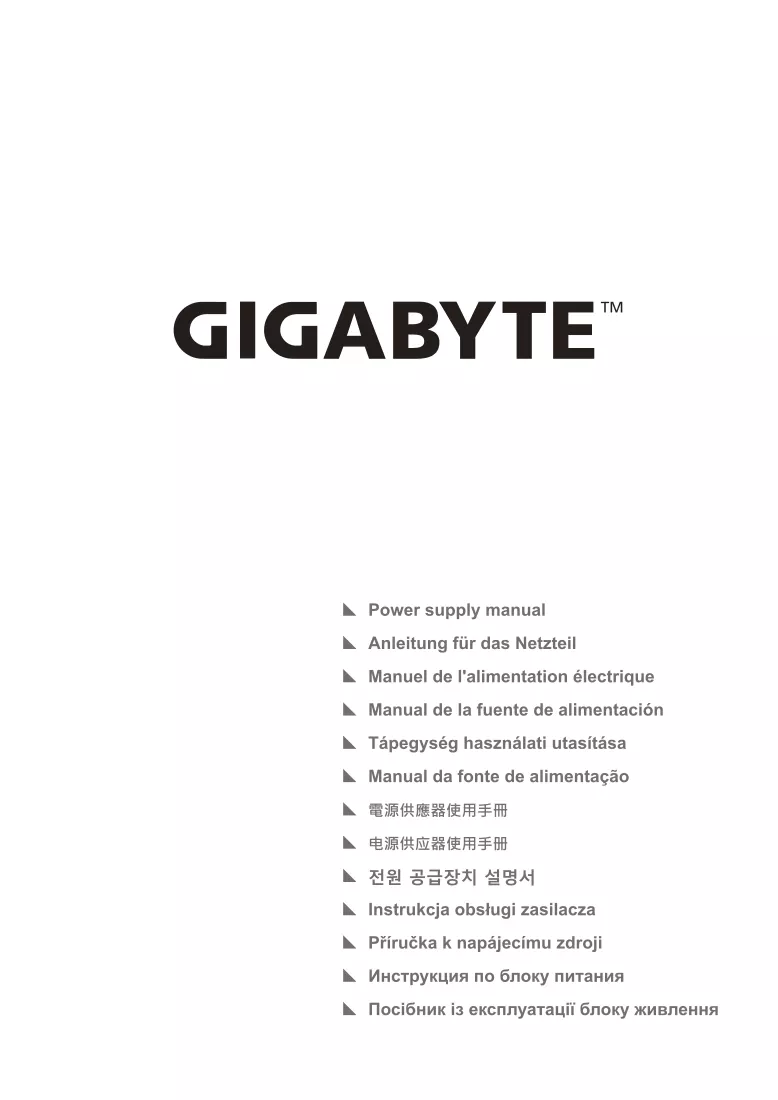

Handleiding

Document openen
