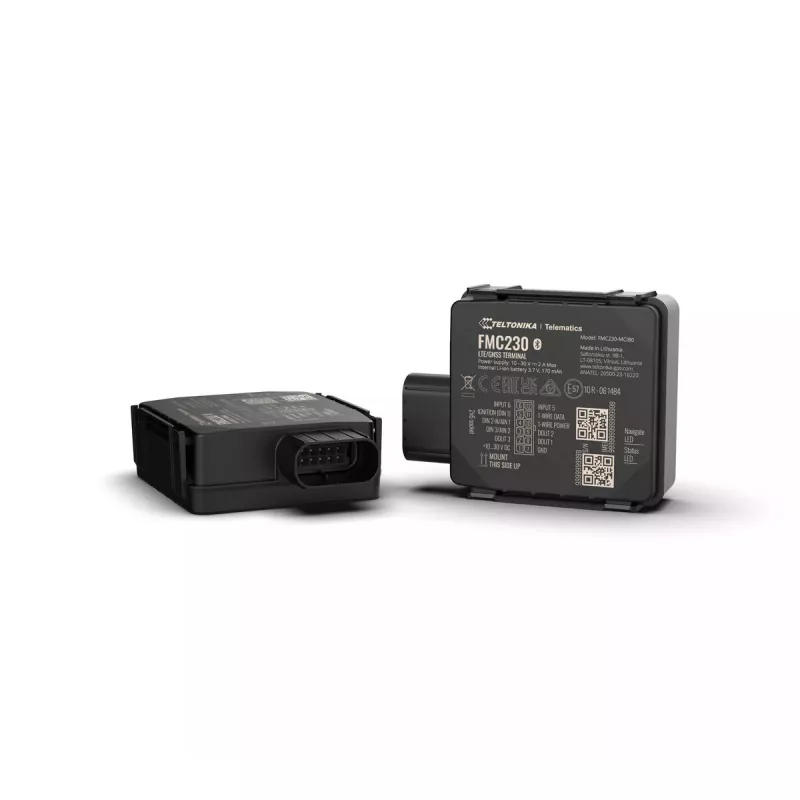

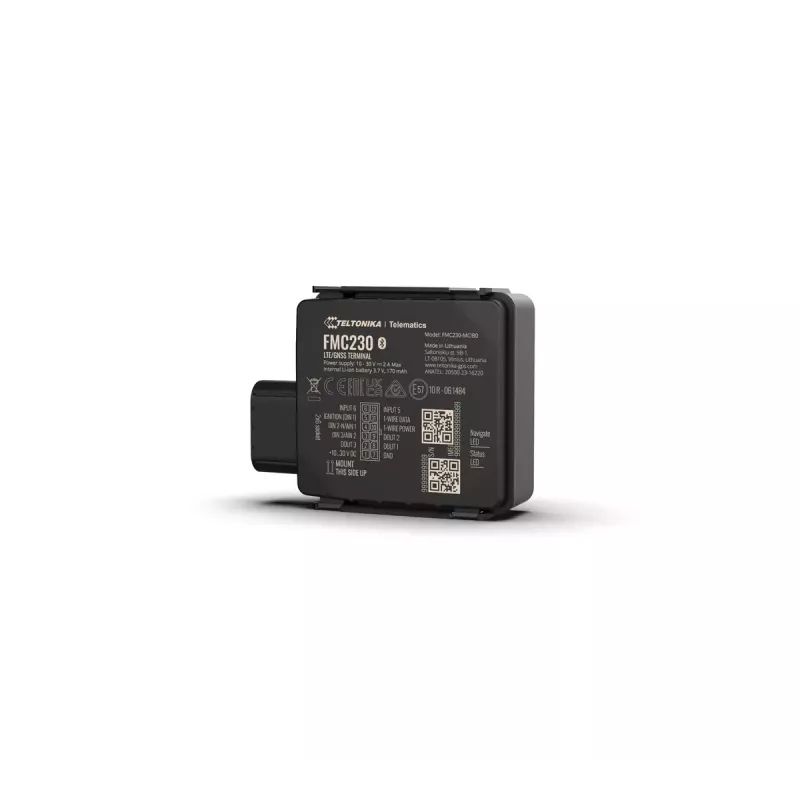

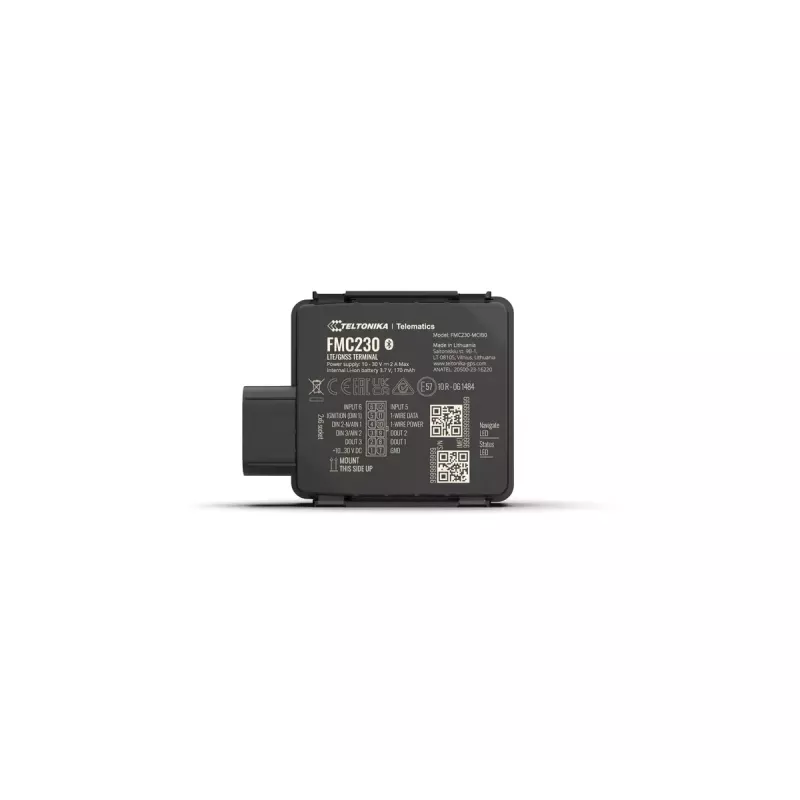

GPS-tracker Teltonika FMC230 waterdicht LTE CAT 1 zwart

The Teltonika FMC230 Waterproof LTE CAT 1 Black is a compact GPS tracker for universal use. Housed in an IP67-rated casing, it provides dust protection and water resistance for reliable operation in demanding environments. The device supports LTE CAT 1 connectivity, includes 0.128 GB built-in memory and a rechargeable battery with an approximate runtime of up to 6 hours. It also offers Bluetooth® LE-based wireless connection for external Low Energy beacons and sensors to monitor temperature, humidity, magnet detection and movement.

Advantages

The IP67 enclosure ensures protection against dust and temporary immersion in water, while the click-type two-phase closing enables tool-free installation and maintenance. Available in standard and U-type cable options, the FMC230 allows flexible and fast wiring. Bluetooth® LE support expands functionality with wireless sensors and beacons for extended monitoring scenarios.

Suitable for

• Vehicle and asset tracking in outdoor or wet environments
• Use cases requiring temporary water resistance and dust protection
• Installations where quick, tool-free mounting is preferred
• Monitoring temperature, humidity, magnetic tamper events and movement via external BLE sensors

Key specifications

• Brand: TELTONIKA
• Model / MPN: FMC230
• Network: LTE CAT 1
• Ingress protection: IP67
• Memory: 0.128 GB built-in
• Battery life: up to 6 hours (approx.)
• Weight: 125 g
• Size (approx.): 67 mm width × 25.6 mm depth
• Wireless: Bluetooth® LE for external beacons and sensors

How to use

Mount the FMC230 in a suitable location protected from direct mechanical damage. Select the appropriate cable option (standard or U-type) and secure the enclosure using the click-type two-phase closing — no additional tools required. Configure network and tracking settings via the manufacturer's setup software or platform, pair Bluetooth® LE sensors if needed, and verify connectivity and sensor readings before regular operation.

Recommendations

For optimal performance, place the tracker where it has a clear cellular signal and minimal metal obstructions. Use the U-type cable option when routing wiring through narrow channels. Regularly check seals and cable entries after exposure to harsh conditions to maintain IP67 protection.
