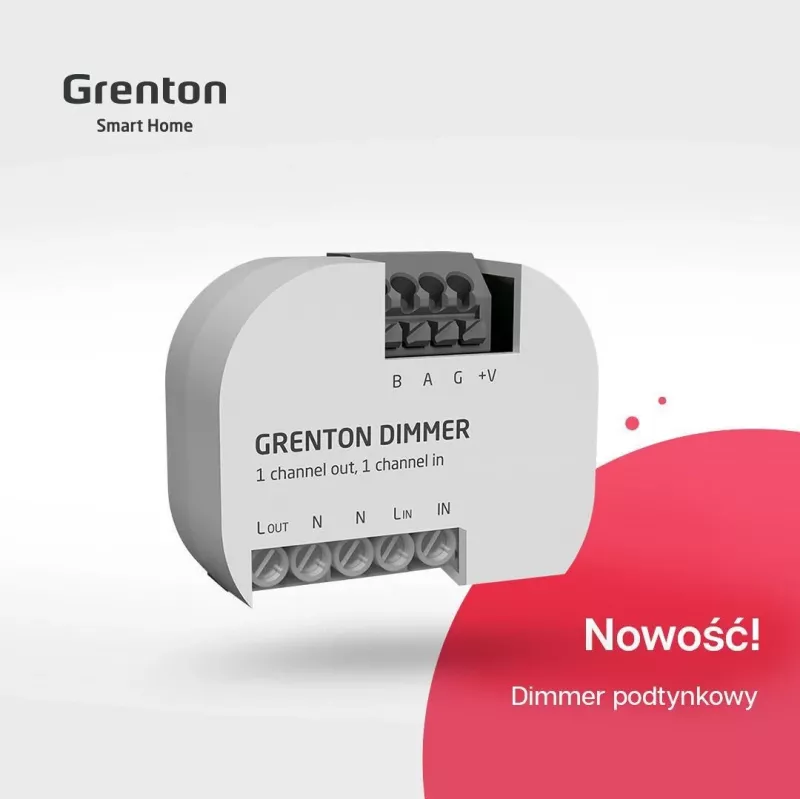

Grenton Dimmodule (1 Uitgang) TF-Bus Cushion Mounting

The Grenton Dimming Module (1 output) is a smart dimming module designed for seamless integration into the Grenton TF-Bus smart home system. It enables precise control of lighting loads, supporting both leading and trailing edge dimming for compatibility with a wide range of bulbs, including incandescent, halogen, dimmable LED, and dimmable CFL. The module features cushion mounting for easy installation behind switches or in junction boxes, making it ideal for both new builds and retrofits.

Advantages

Universal dimming compatibility ensures smooth operation with various load types. The compact design with cushion mounting simplifies installation, while overload, short-circuit, and thermal protection guarantee safe and reliable performance. Low standby power consumption (<0.5W) contributes to energy efficiency.

Suitable for

• Residential smart home lighting control
• Commercial spaces requiring dimmable lighting
• Retrofit projects where space is limited

Key specifications

• Product Type: Smart Dimming Module
• Number of Channels: 1
• Communication Protocol: Grenton TF-Bus
• Input Voltage: 230V AC, 50/60Hz
• Output Voltage: 230V AC, 50/60Hz (dimmed)
• Max Load (Resistive/Capacitive): 200W
• Max Load (Inductive): 100W
• Dimming Type: Universal (Leading/Trailing Edge)
• Mounting Type: In-wall / Junction Box (behind switch)
• Operating Temperature: 0°C to +45°C
• Operating Humidity: 5% to 90% RH (non-condensing)
• Standby Power Consumption: < 0.5W
• Protection Features: Overload, Short-circuit, Thermal protection
• Housing Material: Flame-retardant plastic
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with Grenton TF-Bus compatible controllers and ensure proper load matching. Professional installation is recommended.
