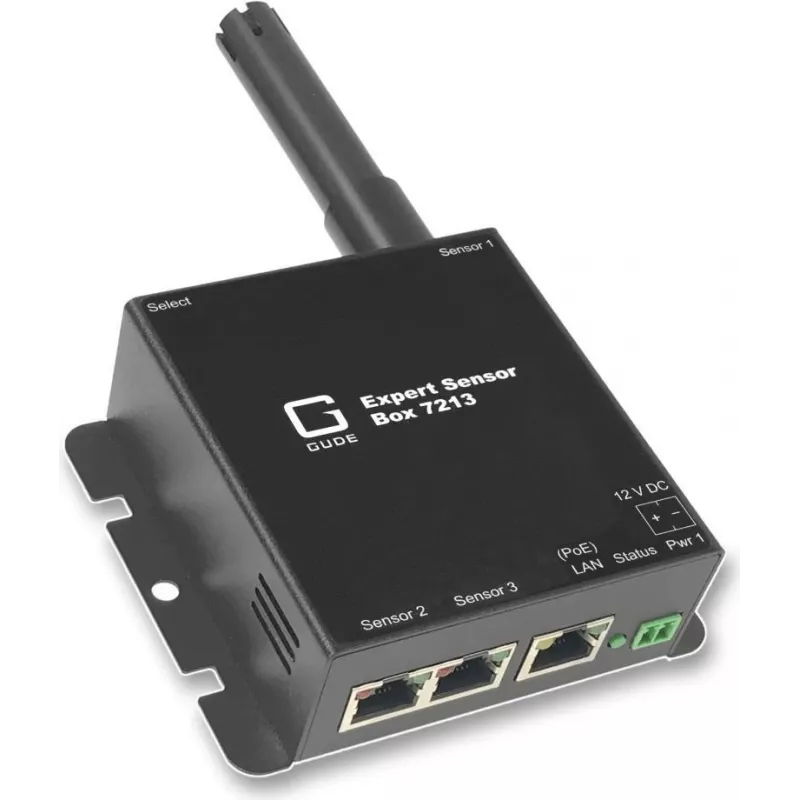

Gude Expert Sensor Box 7213-1 - netwerk-omgevingsmonitoringapparaat

The Gude Expert Sensor Box 7213-1 is a standalone network environment monitoring device designed for professional IT environments. It provides real-time monitoring of temperature, humidity, air pressure, water leakage, smoke, motion, and door contact using Gude-specific sensors. With 4 RJ11/RJ12 sensor ports and a USB 2.0 port, it offers flexible connectivity. The device supports HTTP, HTTPS, SNMPv1/v2c/v3, Syslog, SMTP, and NTP for management and alerting. Its powder-coated steel housing is wall-mountable or DIN rail mountable (optional accessory).

Advantages

Reliable 24/7 environmental monitoring with configurable alerts via email, SNMP traps, or Syslog. Easy web-based configuration and firmware updates. Compact design with low power consumption (max. 3W).

Suitable for

• Data centers and server rooms
• Telecommunications cabinets
• Industrial control rooms
• Warehouses and storage facilities

Key specifications

• Network interface: 10/100Base-T Ethernet (RJ45)
• Sensor ports: 4x RJ11/RJ12 for Gude sensors
• USB ports: 1x USB 2.0 Type A
• Power supply: External 5V DC (adapter included)
• Operating temperature: 0°C to +50°C
• Housing: Powder-coated steel
• Mounting: Wall mountable, DIN rail optional

Recommendations

For comprehensive environmental monitoring, pair with Gude temperature, humidity, or water leakage sensors. Use the optional DIN rail kit for easy installation in electrical cabinets.
