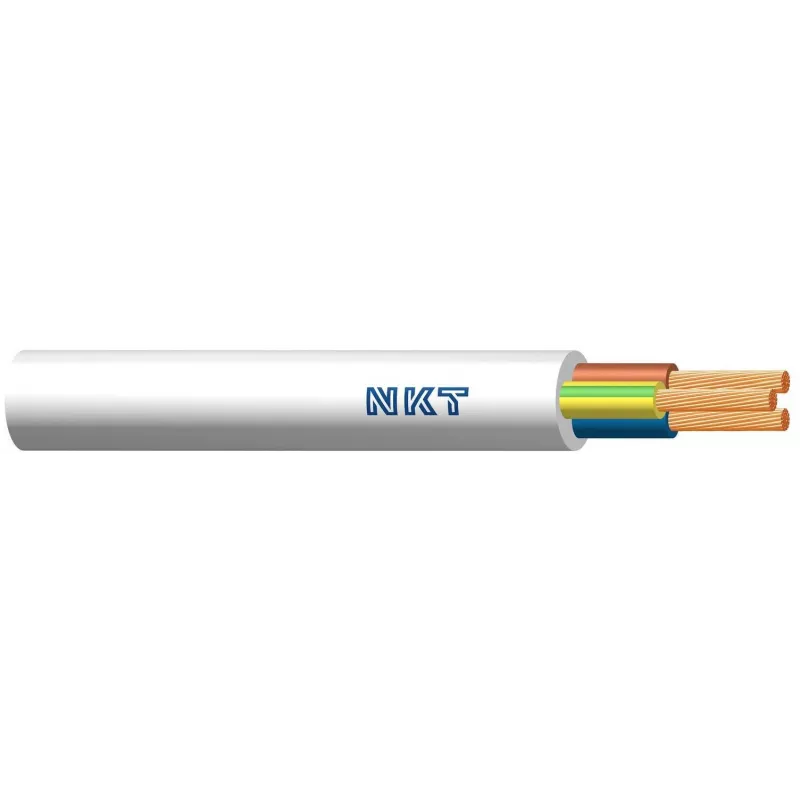

H05VV-F OWY 3x2,5mm2 300/500V flexibele elektrokabel wit 100m

The H05VV-F OWY 3x2.5mm2 flexible electrical cable is a high-quality power cable designed for general-purpose wiring in dry and damp environments. With three cores of 2.5 mm² each, it is suitable for a wide range of applications including household appliances, power tools, and light industrial equipment. The cable is manufactured with electrolytic copper conductors (Class 5 flexible stranded) and PVC insulation and sheath, ensuring durability and flexibility. Rated for 300/500 V and a maximum conductor temperature of +70°C, it meets the harmonized standard H05VV-F (equivalent to Polish OWY). The white sheath provides a clean appearance, and the cable is flame retardant according to IEC 60332-1-2.

Advantages

This cable offers excellent flexibility due to its fine-stranded copper conductors, making it easy to install in tight spaces. The PVC sheath provides good resistance to moisture and mechanical stress, while the flame retardant properties enhance safety. The 100-meter length allows for multiple installations or long runs.

Suitable for

• Household appliances (washing machines, refrigerators, etc.)
• Power tools and portable equipment
• Light industrial machinery
• Extension cords and power distribution
• Indoor wiring in dry and damp locations

Key specifications

• Cable type: H05VV-F (OWY)
• Number of cores: 3
• Conductor cross-section: 2.5 mm² per core
• Rated voltage: 300/500 V
• Conductor material: Electrolytic copper (Class 5)
• Insulation: PVC
• Sheath: PVC, white
• Cable length: 100 m
• Outer diameter: approx. 10.5 mm
• Max. conductor temperature: +70°C
• Min. operating temperature (flexible): -5°C
• Min. operating temperature (fixed): -30°C
• Flame retardant: IEC 60332-1-2
• Bending radius (flexible): 6 x outer diameter

Recommendations

Ensure that the cable is used within its rated voltage and temperature limits. For outdoor or direct burial applications, a different cable type may be required. Always follow local electrical codes and regulations.
