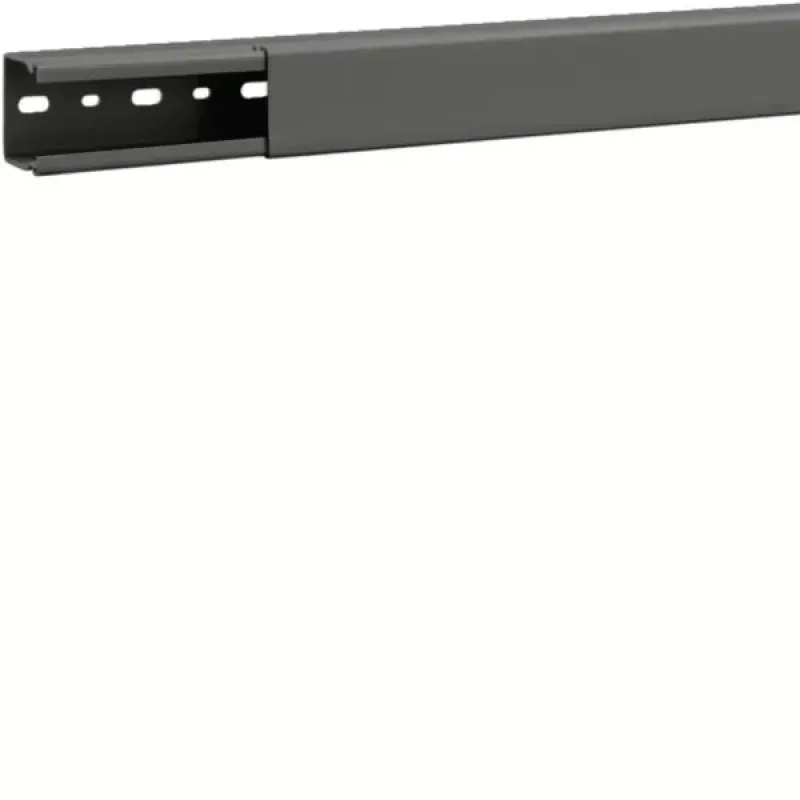

Hager B4004007030B draadkanaal 2000 x 45 x 44 mm grijs

The Hager B4004007030B is a slotted wiring duct designed for neat cable routing in control cabinets and electrical installations. Its 2000 mm length, 45 mm width, and 44 mm height provide ample capacity, while the grey RAL 7030 finish blends with standard enclosures.

Highlights

• Slotted side walls with 4 mm slots and 6.5 mm fingers for easy cable entry
• Perforated base for screw mounting
• Self-extinguishing PVC material
• Includes cover
• Operating temperature range -5°C to +60°C

In daily use

This duct simplifies cable management: insert wires through the slots, snap on the cover, and mount using the base perforations. The PVC construction is flame-retardant, meeting EN 50085-2-3, and suitable for temperatures from -5°C to +60°C during operation.

Full specifications

• Material: PVC
• Length: 2000 mm
• Width: 45 mm
• Height: 44 mm
• Slot width: 4 mm
• Finger width: 6.5 mm
• Operating temperature: -5°C to +60°C
• Installation temperature: -25°C to +60°C
• Fire behavior: Self-extinguishing, flame-retardant
• Halogen-free: No
• Cover included: Yes
• Mounting type: Base perforation for screw mounting
• Standard: EN 50085-2-3
• Application: Control cabinets, electrical installations
• Base type: Perforated
• UV resistant: No
• Certifications: VDE

Final note

The Hager B4004007030B provides reliable cable routing with a secure cover and straightforward screw mounting.
