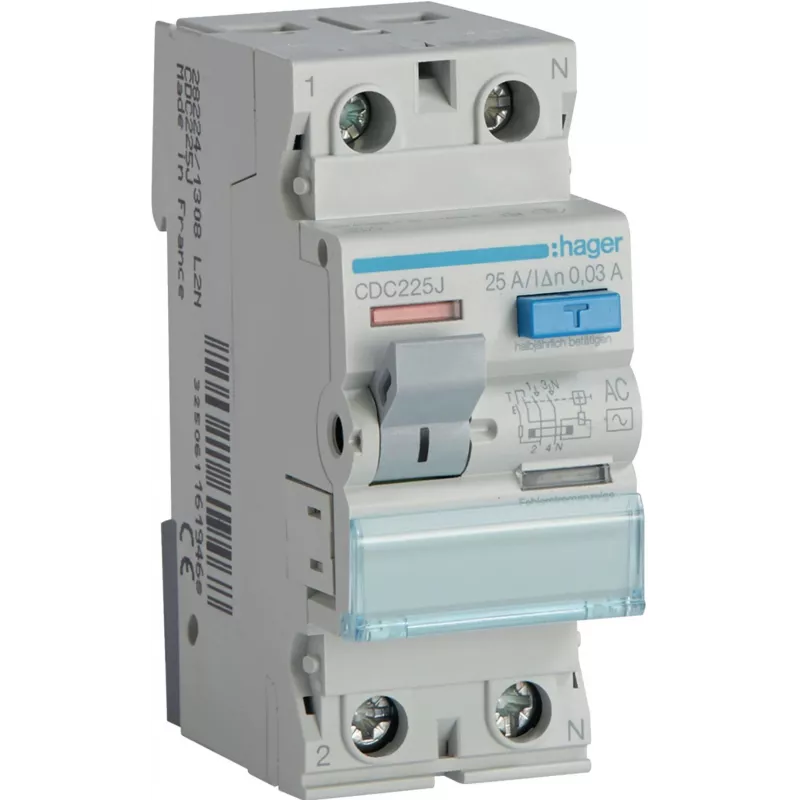

HAGER CDC225J aardlekschakelaar 1P+N 25A 30mA 6kA AC

The HAGER CDC225J is a high-quality residual current circuit breaker (RCCB) designed for reliable protection against earth faults. With a rated current of 25A and a sensitivity of 30mA, it ensures safety in residential and commercial installations. This 1P+N device features a compact 2-module design for easy DIN rail mounting.

Advantages

Compact 2-module design saves space in distribution boards. High breaking capacity of 6kA ensures robust protection. Complies with IEC 61008-1 standards for safety and reliability. Suitable for AC residual current detection.

Suitable for

• Residential electrical panels
• Commercial buildings
• Industrial control systems
• Protection against indirect contact and fire risk

Key specifications

• Brand: HAGER
• Model: CDC225J
• Type: RCCB (Residual Current Circuit Breaker)
• Number of Poles: 1P+N (2P)
• Rated Current: 25A
• Rated Residual Current: 30mA
• Residual Current Type: AC
• Rated Short-Circuit Breaking Capacity: 6kA
• Rated Voltage: 230V AC
• Frequency: 50/60Hz
• Mounting: DIN Rail
• Modular Spacing: 2 Modules
• Terminal Capacity (Rigid): 35mm²
• Terminal Capacity (Flexible): 25mm²
• Degree of Protection: IP20 (terminals), IP40 (device in enclosure)
• Operating Temperature: -25°C to 40°C
• Electrical Endurance: 2000 cycles
• Mechanical Endurance: 20000 cycles
• Standard: IEC 61008-1

Recommendations

For optimal safety, pair this RCCB with a compatible MCB from HAGER. Ensure installation by a qualified electrician.
