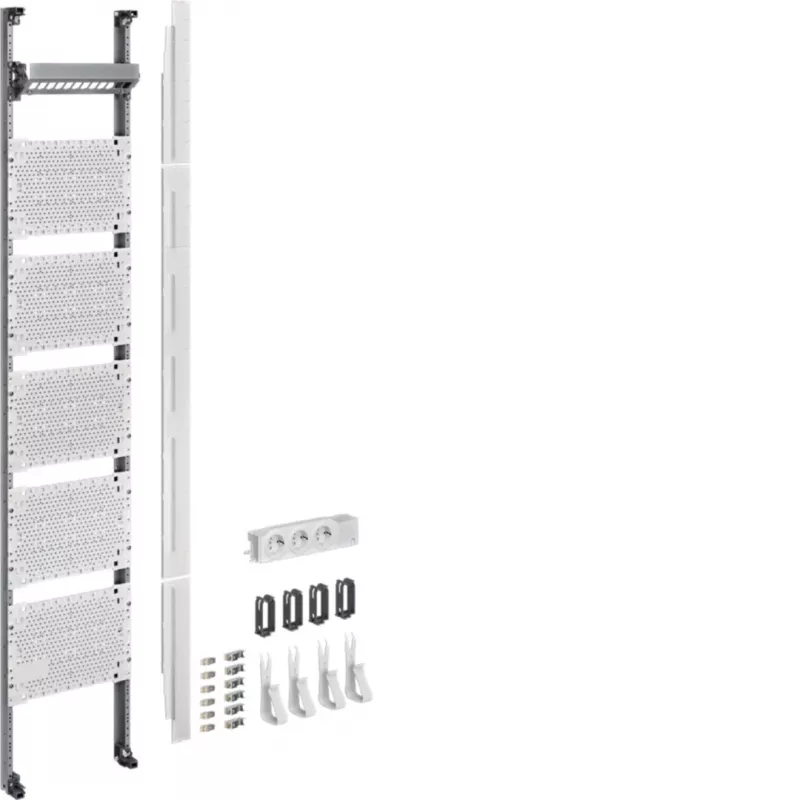

HAGER UF511NW universele meterplaatskast, 1 veld, H 1350 mm, 3-punt/5-punt

This HAGER UF511NW is a single-field universal meter cabinet from the universZ system, engineered for 3-point or 5-point mounting on Z-profiles. Unlike conventional cabinets that require separate enclosures for main breaker and APZ space, this unit integrates both in one 1350 mm high housing, simplifying planning and installation in residential and commercial electrical distribution.

Highlights

• Pre-configured for a 3-pole main circuit breaker (SLS switch) and APZ connection space
• 5-pole busbar system (L1, L2, L3, N, PE) with 12 x 5 mm cross-section
• Galvanized steel sheet construction for durability
• Top and bottom cable entry options
• Rated current 63 A, 3-phase

In daily use

The cabinet's Z-profile mounting allows quick alignment and secure fixing in meter installations. Terminal blocks for main incoming and outgoing lines are included, reducing wiring time. The finger-safe design (IP2XC when installed) supports safe operation during maintenance.

Full specifications

• Height: 1350 mm
• Width: 250 mm
• Depth: 120 mm
• Material: Galvanized steel sheet
• Number of meter positions: 1
• Rated current: 63 A
• Number of fields: 1
• Busbar system: 5-pole (L1, L2, L3, N, PE), 12 x 5 mm
• Mounting type: Z-profile
• Space for main circuit breaker: Yes, 3-pole SLS
• Space for APZ: Yes
• Cable entry: Top and bottom
• Standards compliance: DIN VDE 0603-1, DIN 43870-1
• Protection class: IP2XC (when installed)
• Number of phases: 3

Final note

A complete single-field meter cabinet solution for universal Z mounting, integrating main breaker and APZ space in one robust enclosure.
