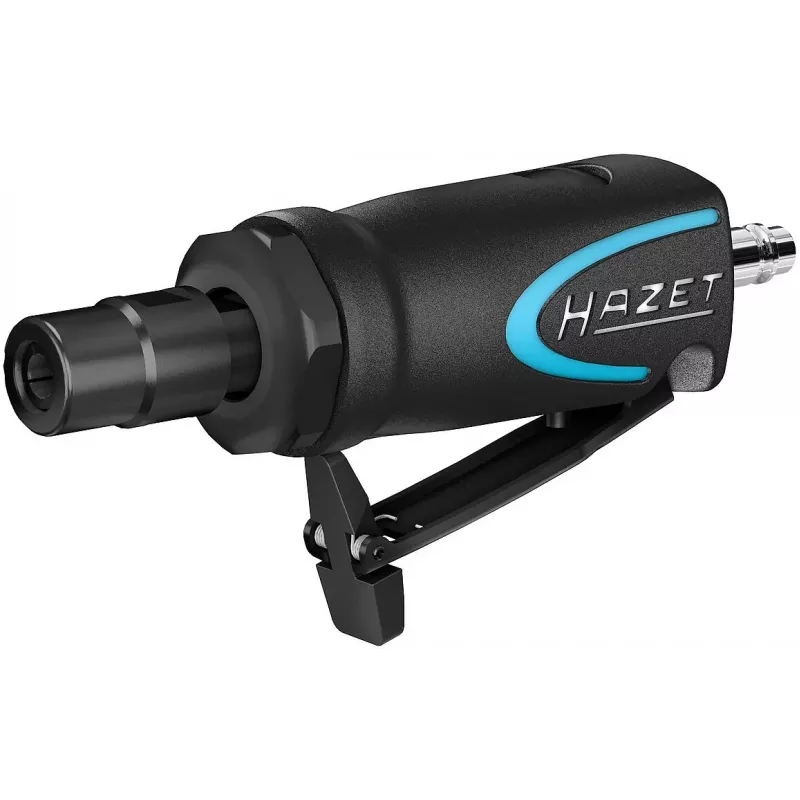

HAZET 9032M-1 perslucht-rechtslijper 25000 t/min 6 mm spantang

With a free speed of 25,000 RPM and a 6 mm collet, the HAZET 9032M-1 pneumatic straight die grinder delivers precise material removal for deburring, grinding, and finishing in tight spaces. Its composite housing keeps weight low without sacrificing durability, while the rear exhaust directs air away from the work surface.

Overview

The HAZET 9032M-1 is a compact straight die grinder engineered for professional use in metalworking, mold making, and automotive repair. It accepts mounted points and grinding pins up to 25 mm in diameter, making it suitable for a wide range of shaping and surface preparation tasks. The tool operates at an air pressure of 6.3 bar and consumes 85 liters per minute, requiring a 3/8-inch (10 mm) air hose for optimal performance.

What stands out

• High-speed 25,000 RPM spindle for fast stock removal and fine finishing
• 6 mm collet accepts standard mounted points and carbide burrs
• Lightweight composite body reduces operator fatigue during extended use
• Rear exhaust keeps chips and dust clear of the workpiece
• Safety trigger prevents accidental start-ups
• Low vibration level of 0.8 m/s² for comfortable handling

Technical details

• Power source: Pneumatic (compressed air)
• Operating pressure: 6.3 bar (91 psi)
• Air consumption: 85 l/min (3.0 CFM)
• Air inlet thread: 1/4 inch NPT
• Recommended hose diameter: 10 mm (3/8 inch)
• Collet diameter: 6 mm
• Max. grinding pin diameter: 25 mm
• No-load speed: 25,000 RPM
• Power output: 220 W (0.3 HP)
• Sound pressure level: 80 dB(A)
• Sound power level: 91 dB(A)
• Vibration level: 0.8 m/s²
• Total length: 155 mm
• Housing material: Composite
• Exhaust direction: Rear
• Safety feature: Safety trigger
• Tool type: Straight die grinder

Our verdict

The HAZET 9032M-1 combines high-speed performance with ergonomic design, making it a reliable choice for professionals who need precision and control in demanding grinding applications.
