HighPoint Rocket 1508 8x M.2-poort naar PCIe 4.0 x16 NVMe HBA C interfacekaart

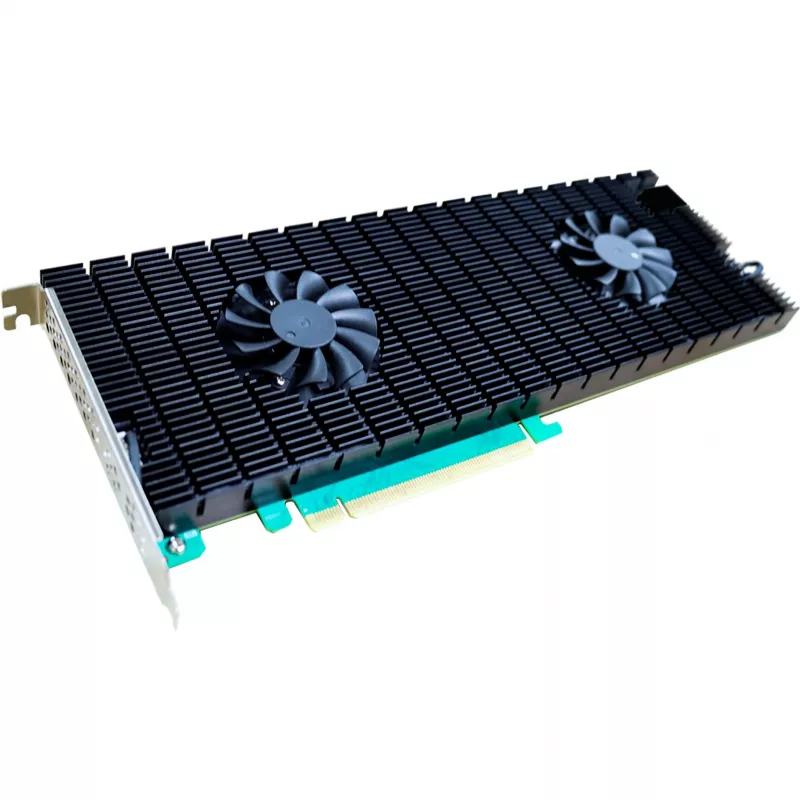

The HighPoint Rocket 1508 is a high-performance NVMe HBA (Host Bus Adapter) designed to connect up to eight M.2 NVMe SSDs to a single PCIe 4.0 x16 slot. Ideal for content creators, data scientists, and IT professionals requiring ultra-fast storage, this card delivers aggregate bandwidth up to 28,000 MB/s with dedicated PCIe 4.0 x4 lanes per M.2 slot. Active cooling ensures sustained performance under heavy workloads.

Advantages

Unlock the full potential of NVMe storage with eight independent M.2 slots, each with dedicated PCIe 4.0 bandwidth. The Rocket 1508 supports RAID 0, 1, 10, and Single Drive configurations for performance or redundancy. Browser-based management via HighPoint WebGUI simplifies setup and monitoring. Bootable support allows direct OS installation on NVMe RAID arrays.

Suitable for

• High-speed storage for video editing, 3D rendering, and scientific computing
• NVMe RAID arrays for enterprise servers and workstations
• Upgrading existing systems with M.2 NVMe SSDs without native support

Key specifications

• Host Interface: PCIe 4.0 x16
• Drive Interface: NVMe (PCIe Gen3/Gen4)
• Number of M.2 Slots: 8
• M.2 Form Factors Supported: 2242, 2260, 2280, 22110
• M.2 Key Type: M-Key
• RAID Levels: RAID 0, 1, 10, Single Drive
• Maximum Aggregate Bandwidth: Up to 28,000 MB/s
• Cooling: Active (Heatsink with Fan)
• Auxiliary Power: 1x 6-pin PCIe Power
• Operating Systems: Windows 10/11, Windows Server 2019/2022, Linux Kernel 3.10+, macOS 10.13+
• Bootable: Yes (NVMe RAID & Single Drive)
• Management: HighPoint WebGUI (Browser-based)
• PCIe Lane Allocation: Dedicated PCIe 4.0 x4 per M.2 slot
• Bracket Profile: Full-height
• LED Indicators: Per-drive activity/status LEDs
• Operating Temperature: 5°C to 55°C (41°F to 131°F)

Recommendations

For optimal performance, use with PCIe 4.0 capable motherboards and high-quality NVMe M.2 SSDs. Ensure adequate airflow in the system chassis. The auxiliary 6-pin PCIe power connector must be connected for full power delivery.
