Hikvision DS-1280ZJ-S-Y(O-STD) aansluitdoos / montageadapter - wit

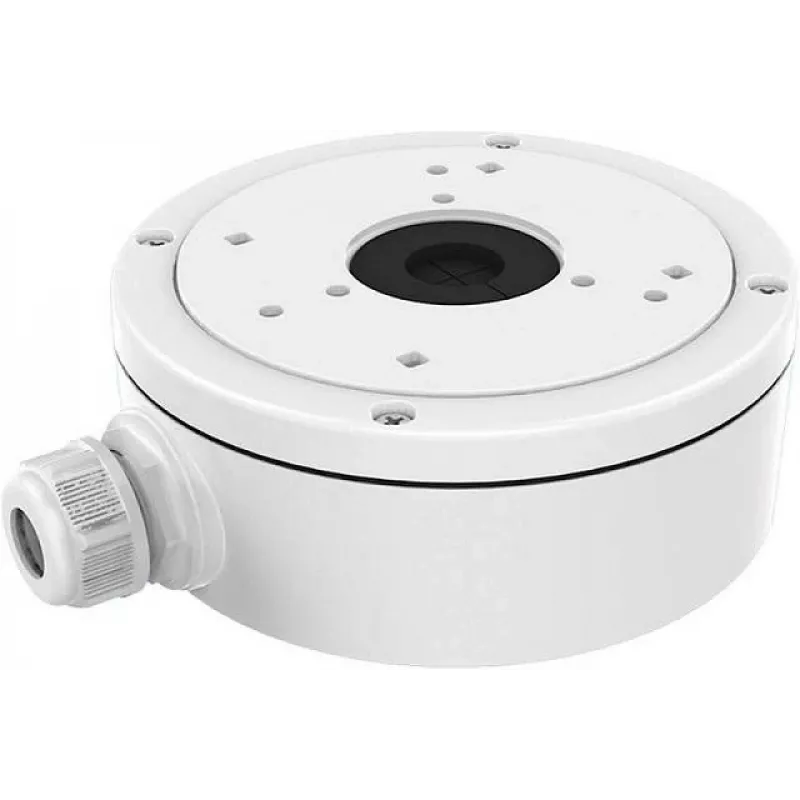

The Hikvision DS-1280ZJ-S-Y(O-STD) is a high-quality junction box and mount adapter designed specifically for Hikvision dome cameras. Constructed from durable aluminum alloy with a powder-coated finish, this adapter provides a secure and weather-resistant mounting solution for both indoor and outdoor environments. It features integrated cable routing and multiple cable entry points for easy installation and neat cable management.

Advantages

This junction box offers robust construction and reliable performance. Its aluminum alloy material ensures long-lasting durability, while the powder-coated surface provides excellent corrosion resistance. The compact design (Ø111 mm × 34.5 mm) allows for discreet installation, and the pre-drilled holes simplify mounting on walls or ceilings. With a load-bearing capacity of up to 4.5 kg, it supports a wide range of Hikvision dome cameras.

Suitable for

• Hikvision dome cameras (e.g., DS-2CD21xx series, DS-2CE56xx series)
• Indoor and outdoor surveillance installations
• Wall mount or ceiling mount applications
• Professional security system integrators

Key specifications

• Product Type: Junction Box / Mount Adapter
• Material: Aluminum Alloy
• Color: White (Hikvision White)
• Dimensions: Ø111 mm × 34.5 mm (Ø4.37" × 1.36")
• Load Bearing Capacity: Max. 4.5 kg (9.9 lb)
• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Humidity: 0% to 90% (non-condensing)
• Surface Treatment: Powder Coated
• Corrosion Resistance: Yes
• Mounting Type: Wall Mount, Ceiling Mount
• Cable Management: Integrated Cable Routing
• Cable Entry Points: Multiple (Side/Bottom)
• Mounting Holes: Standard Hikvision pattern
• Compatibility: Hikvision Dome Cameras

Recommendations

For optimal performance and ease of installation, pair this junction box with compatible Hikvision dome cameras. Ensure proper cable routing to maintain weatherproofing in outdoor environments. This adapter is an essential accessory for professional security camera setups.
