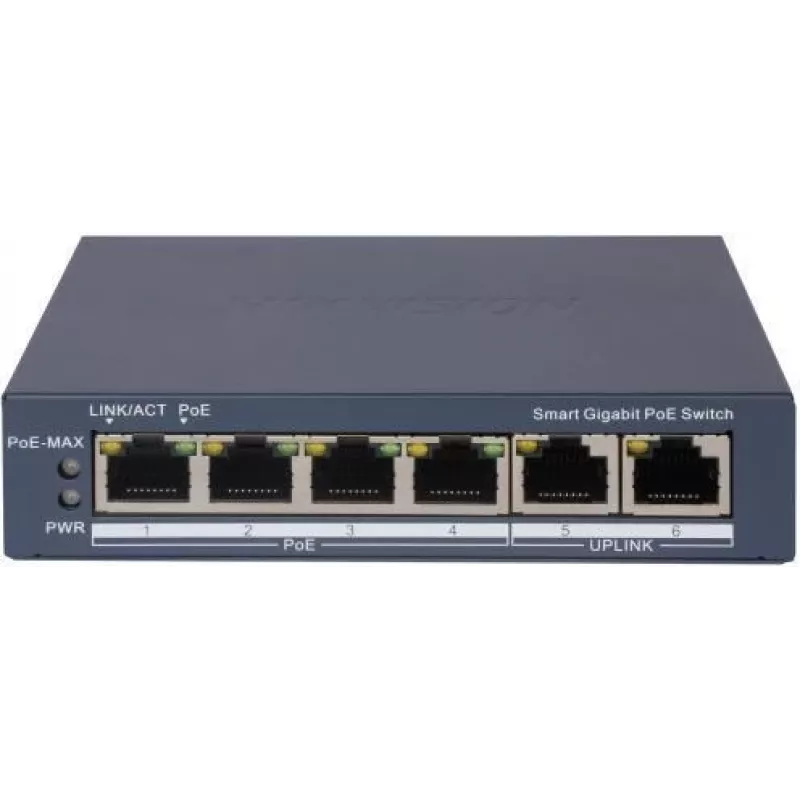

Hikvision DS-3E1506P-EI(O-STD) 6-poorts Gigabit PoE-switch

The Hikvision DS-3E1506P-EI(O-STD) is a high-performance 6-port Gigabit PoE switch designed for small to medium-sized network deployments. With 4 PoE ports and a total PoE budget of 60W, it provides reliable power and data transmission for IP cameras, access points, and other PoE devices. This switch supports IEEE 802.3af/at standards, delivering up to 30W per port, and features advanced PoE watchdog and long-range PoE capabilities up to 300 meters at 10 Mbps.

Advantages

Cost-effective and easy to deploy, this switch offers plug-and-play installation with no configuration required. Its compact desktop design saves space, while the external power supply ensures stable operation. The PoE watchdog automatically reboots connected devices if they become unresponsive, enhancing network reliability.

Suitable for

• IP surveillance systems
• Wireless access points
• VoIP phones
• Small office/home office networks

Key specifications

• 6 Gigabit Ethernet ports (4 PoE + 2 uplink)
• PoE standard: IEEE 802.3af/at
• Max PoE power per port: 30W
• Total PoE budget: 60W
• Switching capacity: 12 Gbps
• Packet forwarding rate: 8.928 Mpps
• MAC address table: 4K
• Jumbo frame support: 9 KB
• Power supply: External 48V DC, 1.35A
• Operating temperature: -10°C to 55°C

Recommendations

Ideal for powering and connecting up to 4 PoE devices, this switch is a reliable choice for expanding your network. Its long-range PoE feature allows flexible placement of devices up to 300 meters away.
