Hoekbeugel Extralink wandbeugel L400 400 mm staal verzinkt 13 kg

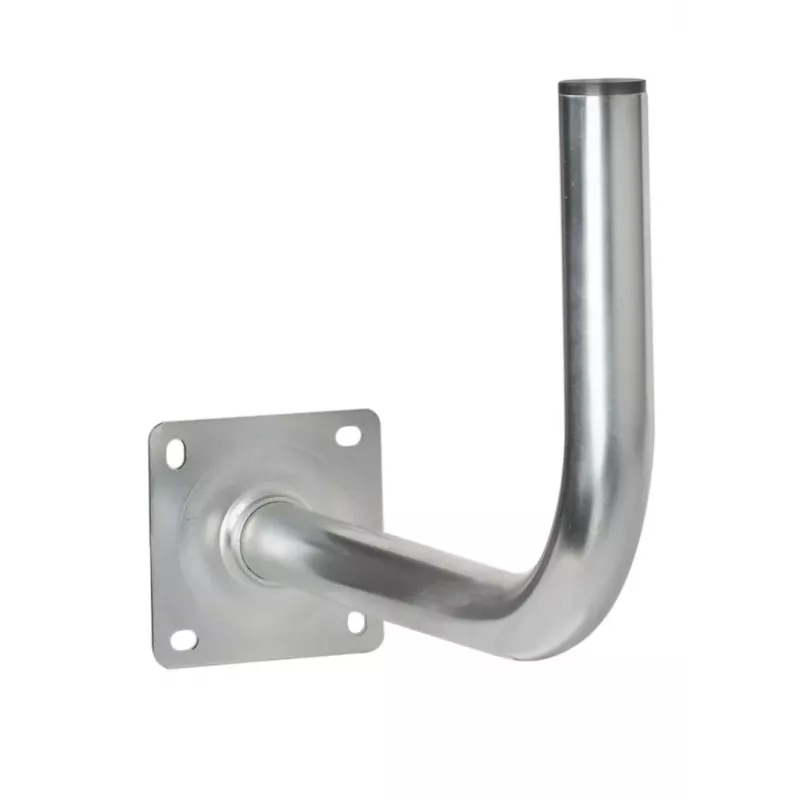

The Extralink Wall mount L400 is a galvanized steel angle bracket designed for wall installation of antennas and similar equipment. With a 400 mm arm and corrosion-resistant finish, it provides a stable support point for satellite or terrestrial antennas and other devices up to 13 kg.

Advantages

Constructed from galvanized steel to resist rust and outdoor wear, this wall bracket offers reliable load capacity and dimensional strength. Its simple L-shape with a 400 mm projection and a 250 mm high masonry holder makes mounting straightforward on facades and other flat surfaces. The bracket is compatible with standard mast diameters and is intended for long-term external use.

Suitable for

• Mounting satellite and terrestrial antennas on building facades
• Securing small satellite dishes and TV aerials up to 13 kg
• Fixing antennas or small poles to brick, concrete or flat walls

Key specifications

• Material: galvanized steel
• Arm length: 400 mm
• Masonry holder height: 250 mm
• Tube diameter: 38 x 1.5 mm
• Maximum load capacity: 13 kg
• Brand: Extralink, MPN: EX.6631, EAN: 5902560366631

How to use

Position the bracket on the chosen wall or facade and mark fixing points corresponding to the 250 mm masonry holder. Drill appropriate holes into the substrate and secure the bracket using suitable anchors or bolts for the wall material. Insert the mast or antenna tube (38 x 1.5 mm) into the bracket arm and fasten with clamps or U-bolts. Verify alignment and tighten all fasteners to ensure stable support before mounting the antenna.

Recommendations

For safe and durable installation, use corrosion-resistant anchors and hardware compatible with the wall material. Check the local wind load requirements and ensure the combined weight of antenna and accessories does not exceed the 13 kg limit. Periodically inspect the galvanized coating and fixings for signs of corrosion or loosening.
