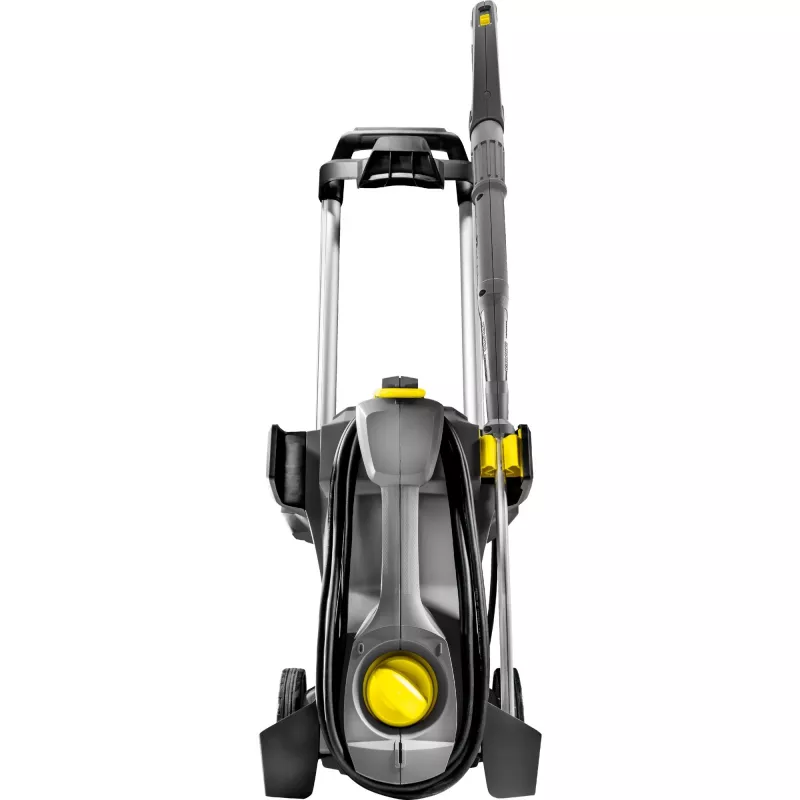

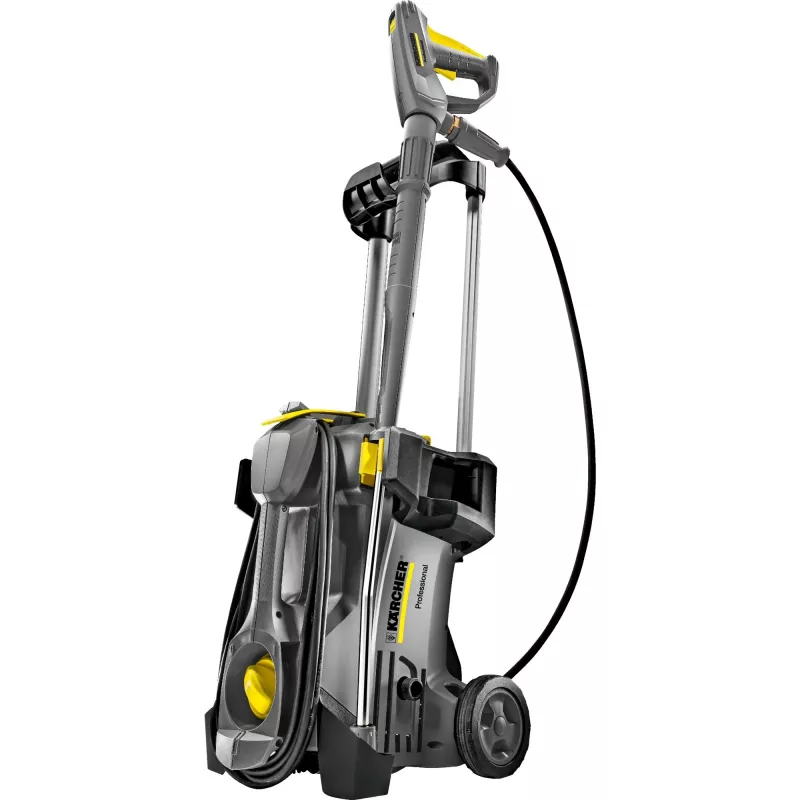

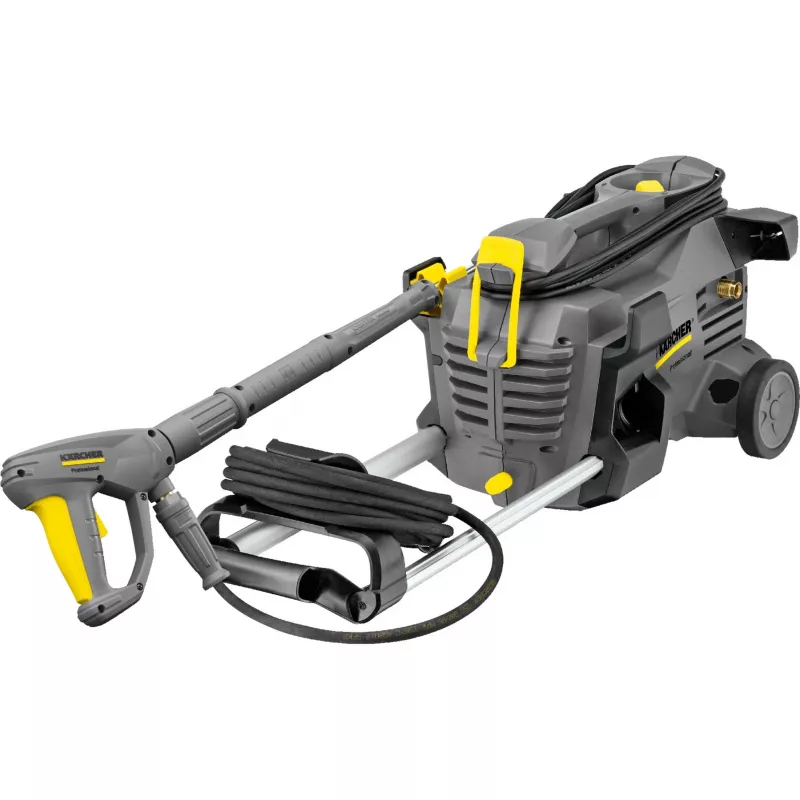

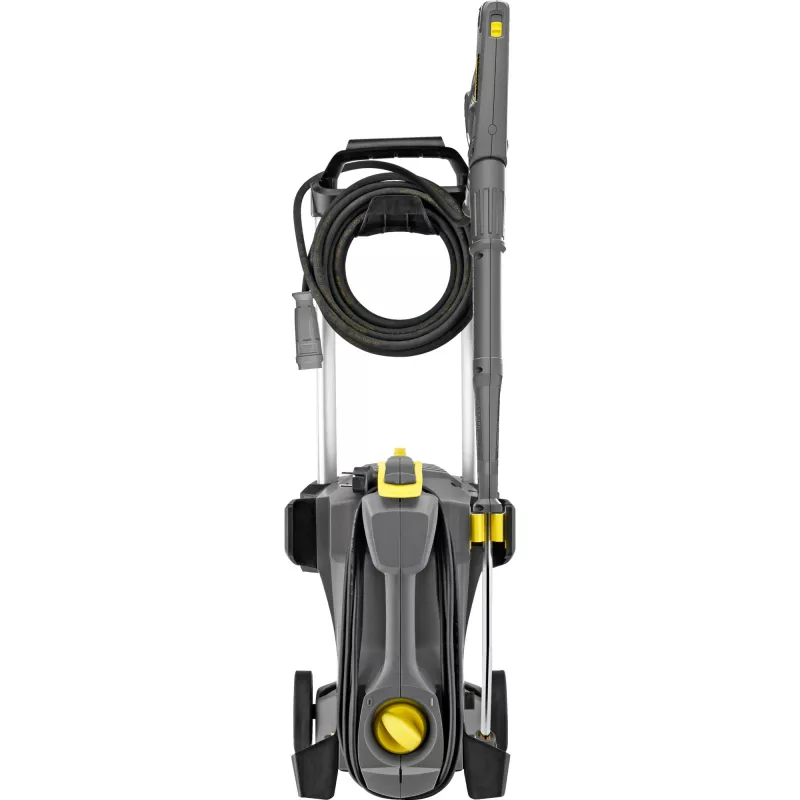

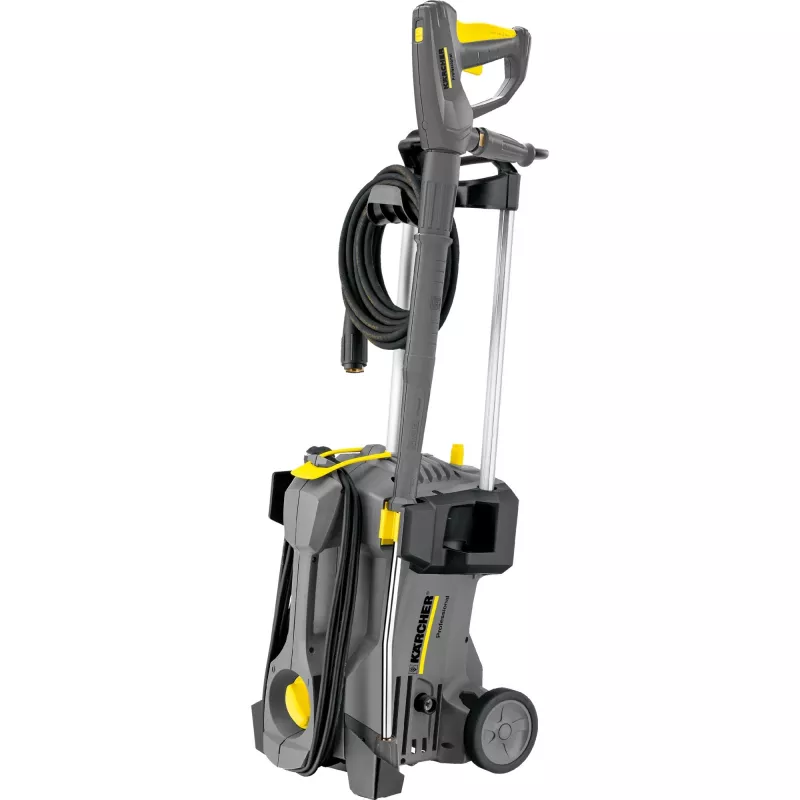

Hogedrukreiniger Kärcher HD 5/11 P Plus

The Pressure Washer Kärcher HD 5/11 P Plus is a compact, mobile high-pressure cleaner designed for efficient removal of stubborn dirt. It features a reliable three-piston axial pump with a brass cylinder head and is built for versatile use in both horizontal and vertical positions. The machine includes innovations that simplify operation and speed up assembly and disassembly while maintaining durability and component protection.

Advantages

The EASY!Force high-pressure gun uses the recoil of the high-pressure jet to reduce the operator’s holding force to zero, improving handling during prolonged use. EASY!Lock quick-release fasteners enable connection and disconnection up to five times faster than conventional screw fittings without compromising robustness. An automatic pressure relief system protects components, reduces wear and maintenance, and lowers the pull force on the high-pressure gun. The unit’s compact dimensions and well-organised accessory storage increase manoeuvrability and convenience.

Suitable for

• Cleaning of vehicles and machinery
• Removal of stubborn dirt on patios, driveways and terraces
• Maintenance cleaning of workshops and garages
• Small to medium commercial and professional cleaning tasks

Key specifications

• Brand: Karcher
• Model: HD 5/11 P Plus (MPN 1.520-961.0, EAN 4054278144948)
• Connected load: 2200 W
• Operating voltage: 230 V, 50 Hz
• Maximum working pressure: 110 bar
• Maximum pressure: 160 bar
• Weight: 20.5 kg
• Dimensions (W×D×H): 351 × 312 × 904 mm
• Cable length: 5 m

How to use

Connect the high-pressure washer to a 230 V power supply and attach the water supply according to the manufacturer’s instructions. Use the EASY!Lock fittings to quickly connect the high-pressure hose and accessories. Hold and operate the EASY!Force gun normally; the gun’s design will neutralise the recoil, reducing the need to apply a holding force. Select the appropriate nozzle or accessory for the task and adjust the distance and pressure as required. After use, activate the pressure relief system if applicable, disconnect accessories using EASY!Lock fasteners and store hoses and accessories in the on-board storage.

Recommendations

Use personal protective equipment such as safety goggles and non-slip footwear when operating the pressure washer. For best results on heavily soiled surfaces, combine the appropriate detergent with the suitable nozzle and maintain a consistent working distance. Follow the manufacturer’s maintenance schedule to ensure long service life.
