HomePilot rolluikautomatiseringsset Premium Smart, motor m20 SW60, 20 Nm, 16 tpm, met alle toebehoren

Roller shutter automation kit with a powerful 20 Nm tubular motor and comprehensive smart control via the HomePilot system. The motor operates at 16 RPM and fits octagonal shafts with a 60 mm diameter (SW60).

Advantages

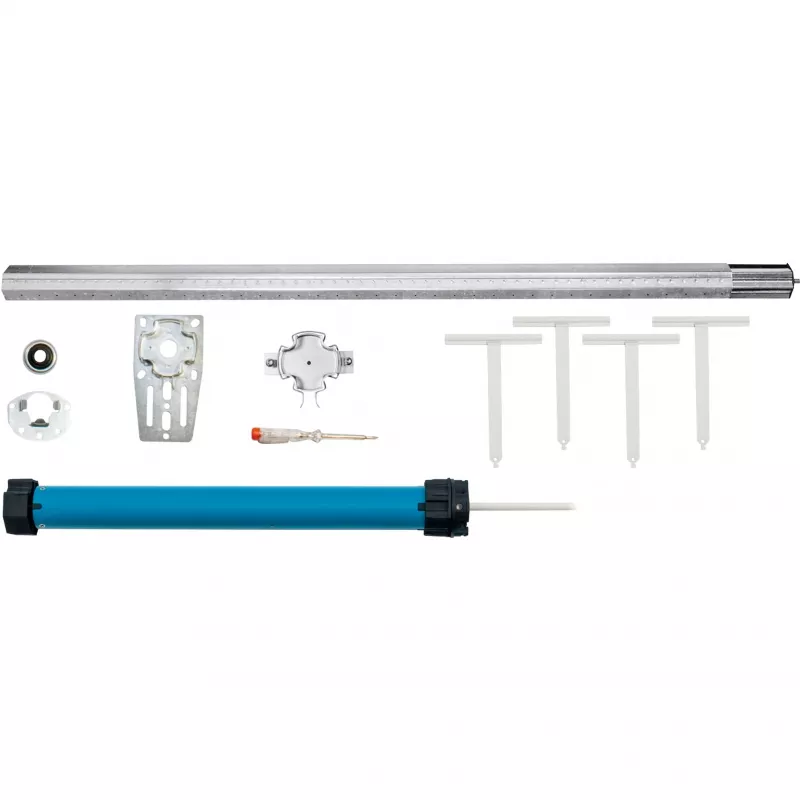

Complete set for motorising roller shutters: includes DuoFern tubular motor, wall switch, and HomePilot Bridge for app control. Schedule automatic opening and closing, integrate with scenes, and expand with optional sun/wind sensors. Motor is protected to IP44 and has a 2.5 m connection cable.

Suitable for

• Roller shutters with plastic curtains up to approx. 8 m² and 40 kg
• Built-in installation in 60 mm octagonal shafts
• Smart home users of the Rademacher HomePilot system

Key specifications

• Torque: 20 Nm
• Speed: 16 RPM
• Shaft compatibility: SW60 (60 mm octagonal)
• Power supply: 230 V AC, 50 Hz
• Wireless protocol: Rademacher DuoFern
• Protection class: IP44
• Operating temperature: -10 °C to +40 °C
• Motor cable length: 2.5 m

Recommendations

Ideal for upgrading existing roller shutters to smart control. For sun and wind automation, add compatible DuoFern sensors.
