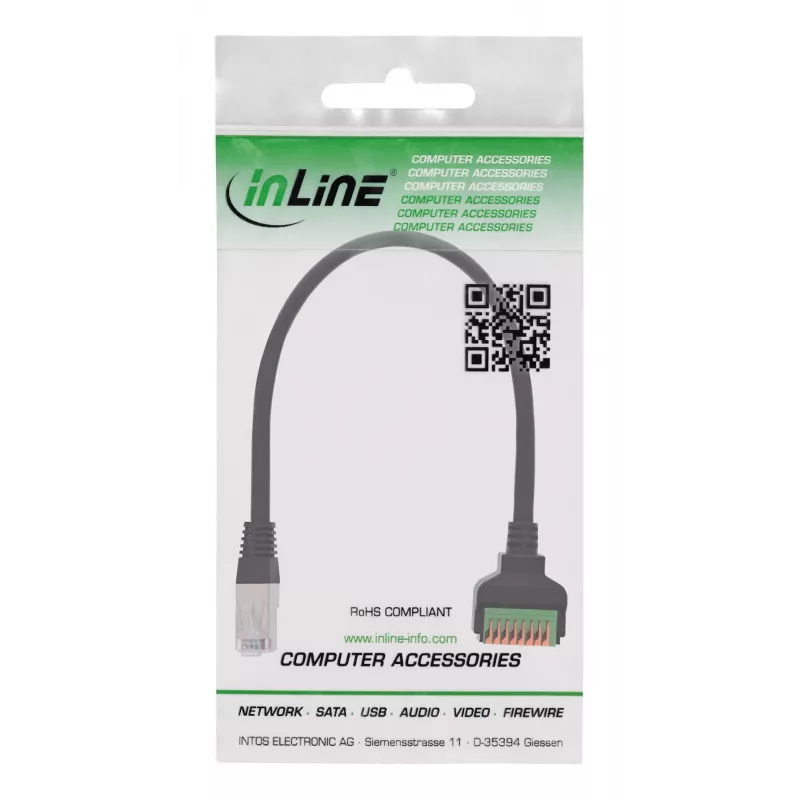

InLine 92505I draadverbinder RJ45 Cat.5e 8P8C / klemmenstrook, 8-polig zwart

Push-in terminal for quick wiring:Single wires (18–26 AWG) can be quickly plugged in—all you need to remove them is a flat-head screwdriver ≤ 2.5 mm.
Cat.5e RJ45 plug with fixed 15 cm connection cable:Shielded RJ45 plug (8P8C) with permanently integrated, flexible Cat.5e cable for direct connection to network components – ideal for confined spaces.
Space-saving cable solution for flexible integration:The short, flexible cable decouples the connector and terminal – facilitating routing in flat enclosures, racks, or densely populated test setups.
Versatile industrial use:For temporary network connections, diagnostics, control technology, embedded systems, and prototyping – particularly suitable for frequent wire changes.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable signal transmission – even in continuous industrial operation.

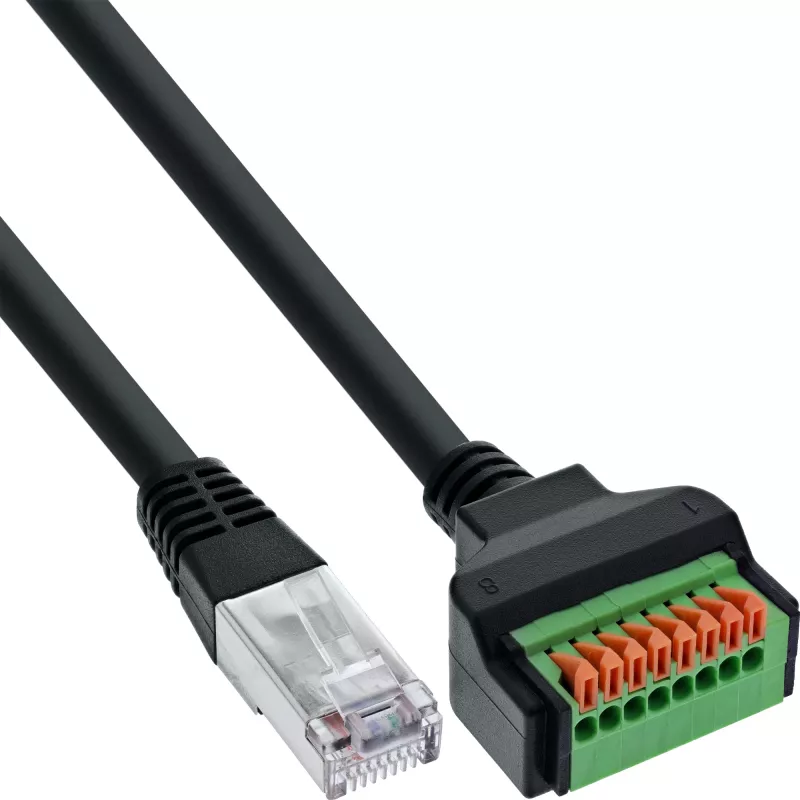

The InLine® RJ45 terminal block adapter with permanently integrated 15 cm cable and 8-pin push-in terminal connects structured Ethernet signals (Cat.5e) with open wire ends – without soldering or screws. The shielded RJ45 connector (8P8C) is connected directly to the push-in terminal via a robust cable.
The push-in technology allows tool-free connection of wires in the 18–26 AWG range. If necessary, the connection can be loosened using the color-coded buttons with a flat-head screwdriver ≤ 2.5 mm – ideal for frequent rewiring in test or prototype environments.
With a cable length of approx. 15 cm and an outer diameter of approx. 6 mm (shielded round cable), the adapter is ideal for compact installations in test equipment, control cabinets, or mobile test systems. Its shielded design and tested quality (short-circuit and wiring test) make it a robust solution for industrial networks and embedded applications.

RJ45 interface:Cat.5e, 8P8C connector (shielded)
Cable length:15 cm (Cat.5e, shielded, 4×2 wires, 24 AWG, flexible)
Terminal system:Push-in terminal (spring force technology)
Number of poles:8 signals (1:1 connected)
Connection range:18–26 AWG (solid or stranded conductor with ferrule)
Actuation:Release with flat-blade screwdriver ≤ 2.5 mm
Rated current:1.0 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–10 °C to +70 °C
Insulation layer:EVA insulation on underside
Dimensions without cable:approx. 43 × 33 × 20 mm (L × W × H)

InLine 92505I. Connector(s): RJ45 Cat.5e 8P8C / Terminal block, 8-pin, Product colour: Black, Connector gender: Male/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 28 x 284 x 20 mm, Weight: 26 g, Cable length: 0.15 m. Quantity per pack: 1 pc(s), Package weight: 29 g, Package volume: 100 cm³. Country of origin: Taiwan
