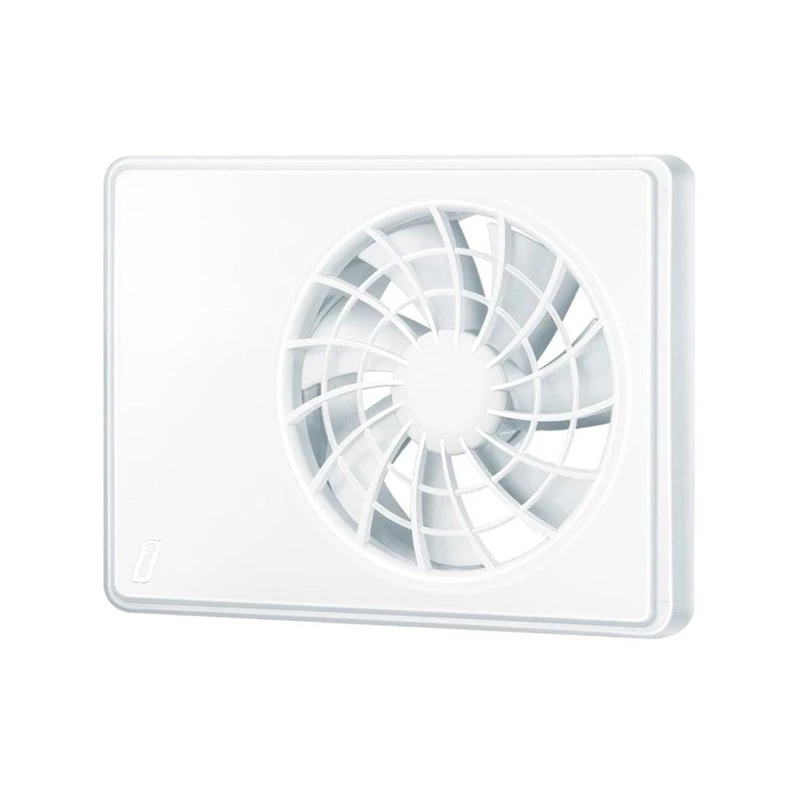

Intellectual axiale ventilator D100/125mm Vents

The Intellectual Axial Fan D100/125mm Vents is a versatile and intelligent ventilation solution designed for efficient air extraction in residential and commercial spaces. With interchangeable spigots for 100mm and 125mm duct diameters, this fan adapts to your installation needs while delivering powerful airflow up to 185 m³/h. Integrated timer, humidity sensor, and motion sensor (PIR) provide automated, energy-saving operation.

Advantages

This fan combines high performance with smart control features. The motion sensor detects presence up to 4 meters, activating the fan only when needed. The humidity sensor automatically adjusts to maintain optimal moisture levels (60-90% RH), preventing mold and condensation. The adjustable timer (2-30 minutes) ensures continued ventilation after use. With IPX4 splash-proof rating and UV-resistant ABS construction, it is suitable for bathrooms, kitchens, and other humid environments.

Suitable for

• Bathrooms and shower rooms
• Kitchens and utility rooms
• Offices and meeting rooms
• Any space requiring automated ventilation

Key specifications

• Fan Type: Axial
• Duct Diameter Compatibility: 100mm / 125mm (interchangeable spigots)
• Maximum Airflow: 185 m³/h (125mm duct)
• Airflow (100mm Duct): 100 m³/h
• Maximum Power Consumption: 16 W (125mm duct)
• Power Consumption (100mm Duct): 14 W
• Maximum Noise Level: 37 dB(A) (125mm duct)
• Noise Level (100mm Duct): 32 dB(A)
• Voltage: 220-240 V, 50 Hz
• IP Rating: IPX4
• Motor Type: Single-phase asynchronous
• Control Features: Integrated Timer, Humidity Sensor, Motion Sensor (PIR)
• Timer Adjustment Range: 2 to 30 minutes
• Humidity Sensor Adjustment Range: 60% to 90% RH
• Motion Sensor Detection Angle: 100°
• Motion Sensor Detection Distance: Up to 4 m
• Mounting Type: Wall / Ceiling / Duct
• Material: UV-resistant ABS Plastic
• Maximum RPM: 2400 RPM

Recommendations

For optimal performance, ensure the duct diameter matches the selected spigot. The fan should be installed by a qualified electrician. Regular cleaning of the fan blades and sensors will maintain efficiency and longevity.
