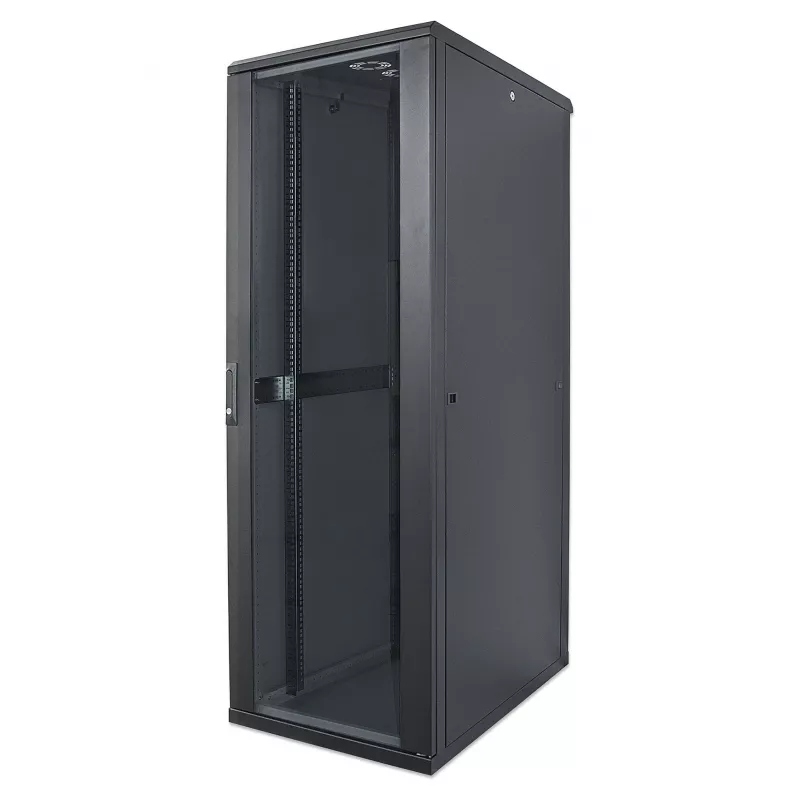

Intellinet 36U 19-inch netwerkkast 800x800mm zwart ongemonteerd

The Intellinet 36U 19-inch Network Cabinet is a robust and versatile solution for organizing and securing your network equipment. With a spacious 800x800mm footprint and 36U of rack space, this cabinet is ideal for medium to large installations. It is supplied unassembled (flatpack) for cost-effective shipping and easy on-site assembly.

Advantages

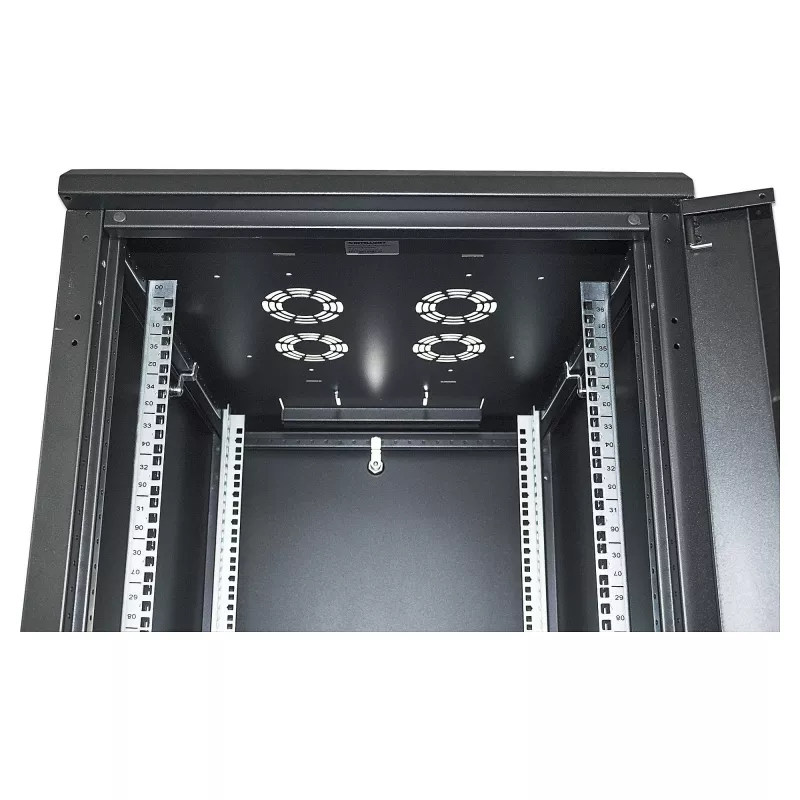

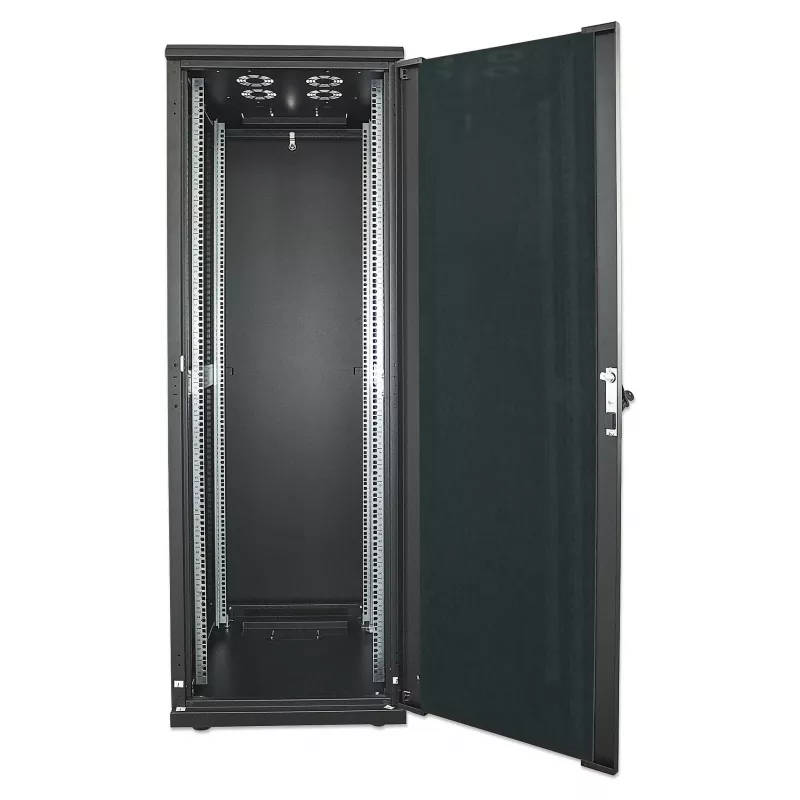

This cabinet offers exceptional value with a high static load capacity of 600 kg, adjustable mounting rails, and lockable doors for security. The tempered glass front door allows easy monitoring of equipment, while the steel rear door and removable side panels provide full access for cabling and maintenance. Passive ventilation and fan-ready top panel ensure optimal airflow.

Suitable for

• Server rooms and data centers requiring a 36U rack
• Network equipment such as switches, patch panels, and servers
• Secure housing for critical IT infrastructure

Key specifications

• Rack Units: 36U
• External Dimensions: 800 x 800 x 1766 mm (WxDxH)
• Color: Black (RAL 9005)
• Material: SPCC Steel

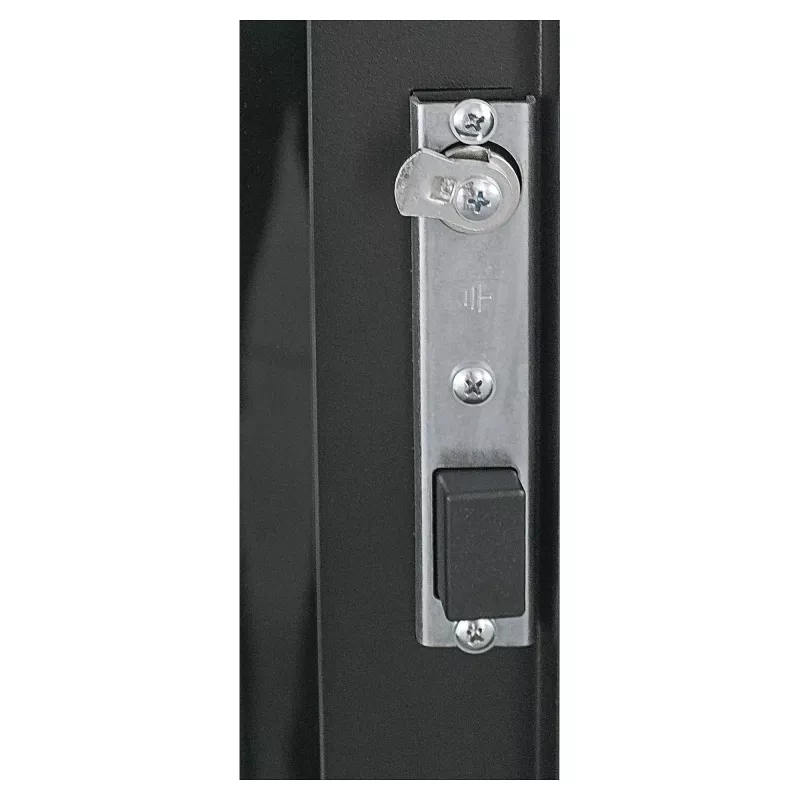

• Front Door: Tempered glass, lockable

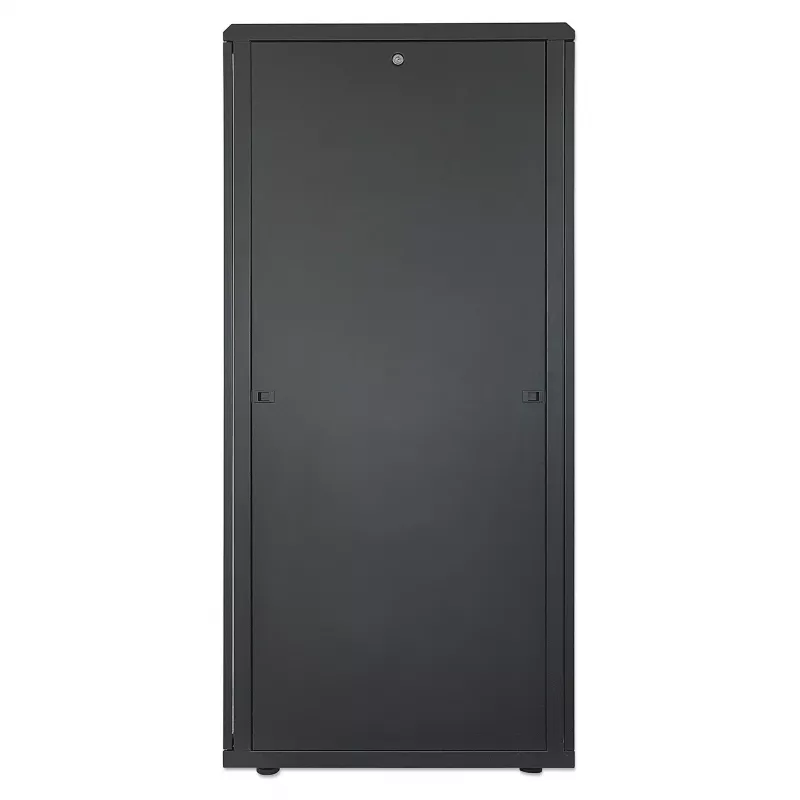

• Rear Door: Steel, lockable
• Side Panels: Removable, lockable
• Static Load Capacity: 600 kg
• Cable Entry: Top and bottom with brush strips
• Protection Rating: IP20
• Mounting Rails: Adjustable depth (front and rear)
• Included Accessories: 4 casters, 4 leveling feet, 20 cage nuts, 2 keys
• Compliance: EIA/ECA-310-E, IEC 60297-2, DIN 41494-1/7

Recommendations

For optimal performance, ensure proper ventilation and cable management. This cabinet is designed for professional installation.
