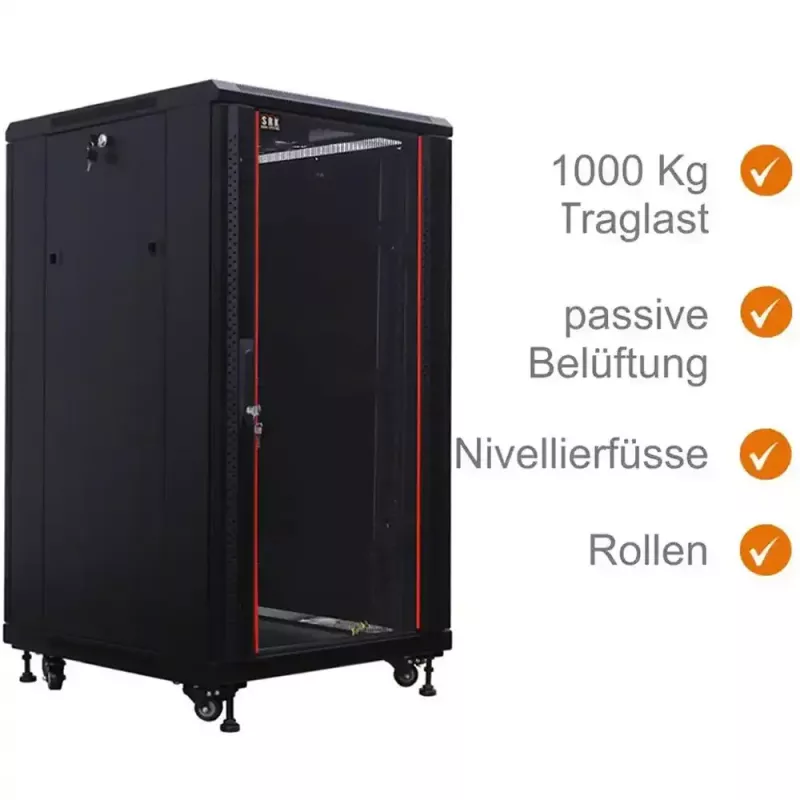

IT-BUDGET 19 inch netwerkkast SRK 27U 600x800mm zwart flatpack 90ITB19SRK2768GSN

Organizing network equipment in a small office or server room often means dealing with bulky, pre-assembled racks that are difficult to transport and install. The IT-BUDGET 19" Network Cabinet SRK solves this by shipping flatpacked, so it can be moved through narrow doorways and assembled on site with basic tools. It provides 27 rack units of secure, lockable space for servers, switches, and patch panels.

Who is it for

IT administrators and system integrators who need a freestanding 19-inch rack for small to medium installations. It suits environments where equipment must be protected from unauthorized access, such as branch offices, retail back rooms, or dedicated network closets.

Main features

• 27U height with 600 mm width and 800 mm depth, compatible with standard 19-inch equipment.
• Front door with safety glass for visibility, rear door in solid steel for security.
• Removable, lockable side panels allow easy access during installation and maintenance.
• Flatpack delivery reduces storage space and shipping cost; assembly required.
• Black powder-coated steel construction (RAL 9005) with a static load capacity of 600 kg.
• Cable entry from top and bottom with brush strips to keep dust out.
• Adjustable front and rear mounting rails for flexible equipment depth.
• Lockable front door, rear door, and side panels with cylinder locks (2 keys per lock included).

Specifications

• Rack capacity: 27U
• External dimensions (WxDxH): 600 x 800 x 1370 mm
• Usable internal depth: approx. 680 mm
• Front door: safety glass, lockable
• Rear door: solid steel, lockable
• Side panels: removable, lockable
• Material: steel
• Colour: black (RAL 9005)
• Maximum weight capacity: 600 kg
• Mounting rails: front and rear, adjustable depth
• Protection class: IP20
• Ventilation: passive
• Included accessories: 2 keys for each lock, mounting hardware

Tips

Before assembly, check that the floor can support the combined weight of the cabinet and equipment. Use a spirit level to ensure the rack is plumb, and tighten all bolts after loading. For better airflow, leave at least 100 mm clearance at the rear and top.
