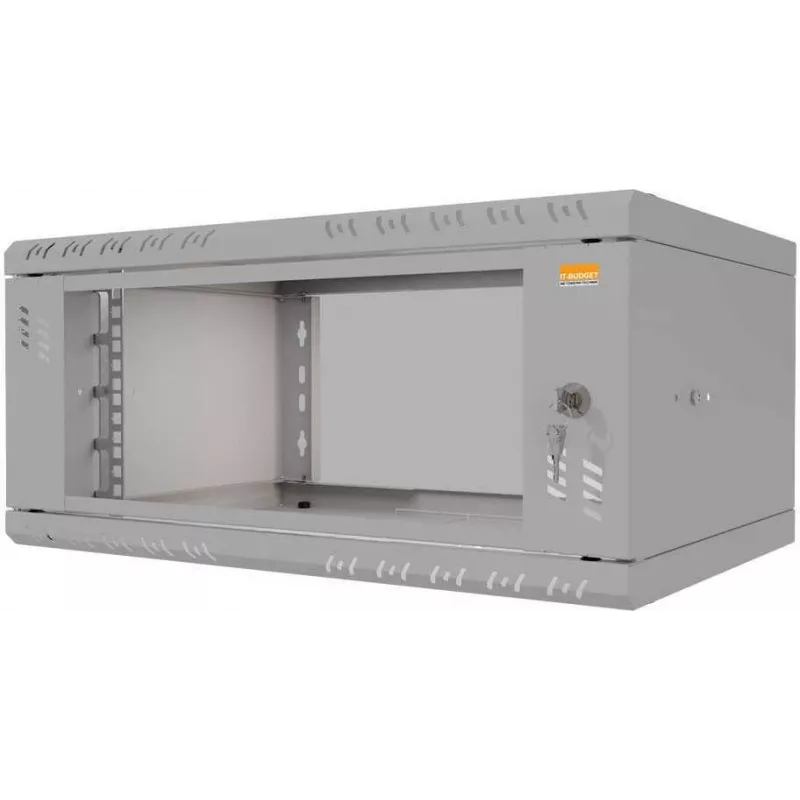

IT-BUDGET 19 inch wandbehuizing TAUNUS 4U 350mm diepte glazen deur lichtgrijs 90ITB19435GG

Organizing network equipment in small spaces can be a challenge, especially when floor space is limited. The IT-BUDGET TAUNUS 19-inch wall-mount cabinet solves this by providing a secure, lockable enclosure that mounts directly to the wall, keeping your patch panels, switches, and other 19-inch devices neatly arranged and protected.

Who is it for

This cabinet is ideal for small offices, home networks, retail spaces, or any environment where a compact, wall-mounted solution is needed. It suits IT administrators and installers who require a cost-effective yet reliable rack for 4U of equipment.

Main features

• 4U rack capacity for standard 19-inch equipment
• 350 mm external depth with approximately 300 mm usable internal depth
• Lockable single-section glass front door for visibility and security
• Light grey (RAL 7035) steel construction with removable side panels
• Top and bottom cable entry points for flexible cabling
• Passive ventilation slots to help dissipate heat
• Maximum load capacity of 60 kg

Specifications

• Rack standard: 19-inch
• Rack units: 4U
• Mounting type: Wall mount
• External dimensions (W x D x H): 540 x 350 x 230 mm
• Usable internal depth: 300 mm
• Door type: Single-section glass door
• Security: Lockable front door with 2 keys
• Material: Steel sheet
• Side panels: Removable
• Cable entry: Top and bottom
• Ventilation: Passive slots
• IP protection class: IP20
• Load capacity: 60 kg
• Assembly: Pre-assembled
• Included accessories: Mounting material (cage nuts, screws)

Tips

When mounting, ensure the wall can support the combined weight of the cabinet and equipment. Use the top and bottom cable entries to keep cabling tidy and avoid blocking ventilation slots.
