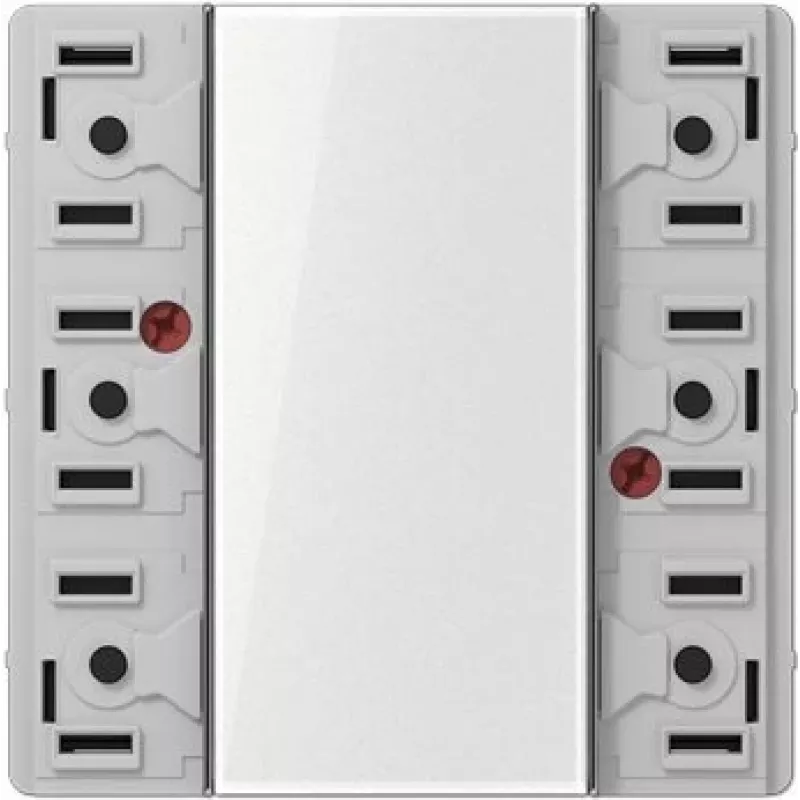

JUNG LS 5073 TSM taster-inzet, 3-voudig, 10A 250V, alpinwit

With a rated current of 10 A at 250 V AC, the JUNG LS 5073 TSM push-button switch insert delivers robust switching capacity for lighting, blinds, and building automation. Its three momentary normally-open contacts provide reliable control in a compact flush-mounted design.

Overview

The JUNG LS 5073 TSM is a 3-gang push-button switch insert from the renowned LS series. Engineered for flush mounting, it features screw terminals for secure wiring and a thermoplastic body in Alpine White. The switch operates on a momentary principle, making it ideal for impulse control in modern electrical installations.

What stands out

• Three independent normally-open push-button contacts
• High switching capacity: 10 A / 250 V AC
• Flush-mounted design with a shallow installation depth of approx. 32 mm
• Robust thermoplastic construction in Alpine White
• Compatible with all JUNG LS series frames and covers
• IP20 protection for indoor use

Technical details

• Product type: Push-button switch insert
• Series: JUNG LS
• Number of buttons: 3
• Contact configuration: 3x NO (momentary)
• Rated voltage: max. 250 V AC
• Rated current: max. 10 A
• Connection type: Screw terminals
• Material: Thermoplastic
• Colour: Alpine White
• Protection class: IP20
• Operating temperature: -5 to +45 °C
• Humidity range: 5% to 93% (non-condensing)
• Installation depth: approx. 32 mm
• MPN: LS 5073 TSM
• EAN: 4011377106932

Our verdict

A reliable and versatile push-button insert that meets the demands of professional electrical installations. Its 10 A rating and three independent contacts make it a solid choice for controlling multiple circuits with a single device.
