Kabelsplitter EK Water Blocks EK-Cable Splitter 4-Fan PWM Extended

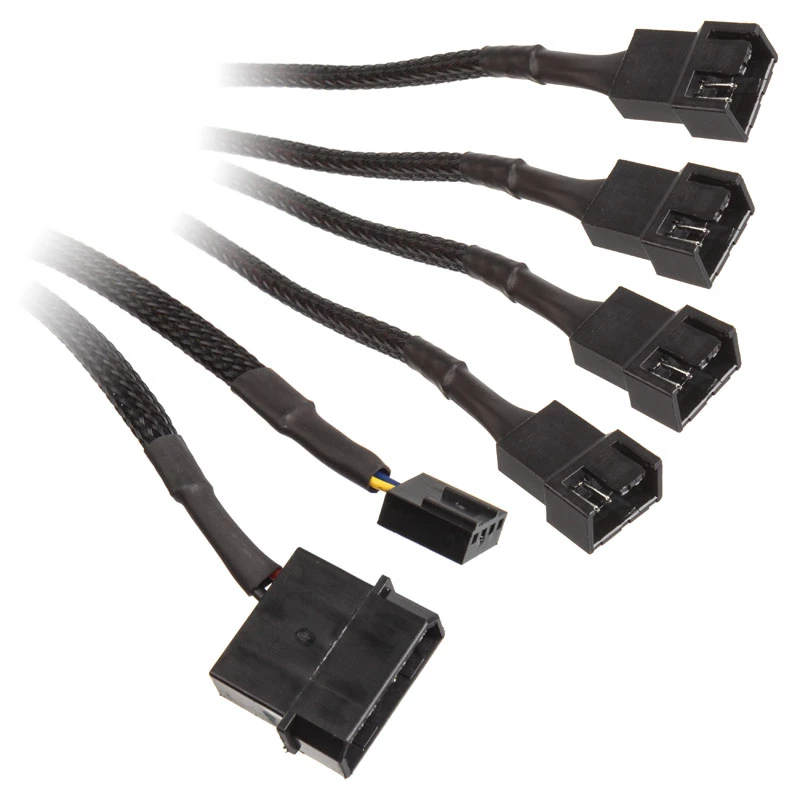

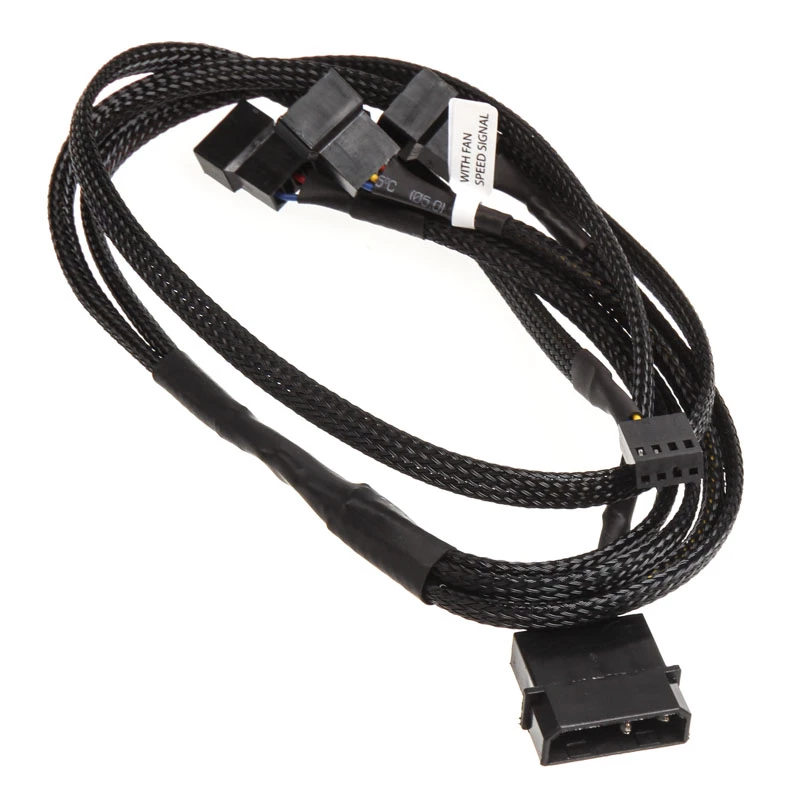

EK-Cable Splitter 4-Fan PWM Extended is a 1-to-4 PWM fan splitter that lets you connect up to four PWM fans to a single motherboard fan header. The splitter includes a 4-pin PWM connector for the motherboard and an auxiliary 4-pin Molex power connector to supply the extra current required when multiple fans are connected. Cable length is 0.8 m and the cable is finished in black.

Advantages

The PWM design allows motherboard fan control to adjust each fan's RPM according to system temperature or BIOS settings, reducing noise when high airflow is not needed. The Molex power input provides sufficient power for up to four fans without stressing the motherboard header. A single-cable solution simplifies cable management in compact or multi-fan PC builds.

Suitable for

• PC builds requiring multiple case or radiator PWM fans controlled from one motherboard header
• Systems where reduced cable clutter and simplified fan wiring are desired
• Configurations where additional power from a Molex connector is needed to run several fans simultaneously

Key specifications

• Cable length: 0.8 m
• Fan connectors: 4 × 4-pin PWM
• Motherboard connector: 4-pin PWM
• Auxiliary power: 4-pin Molex connector
• Colour: Black

How to use

Connect the 4-pin PWM plug of the splitter to a PWM-capable fan header on the motherboard. Plug up to four PWM fans into the splitter's 4 × 4-pin fan sockets. If you connect more than one fan, attach the 4-pin Molex connector to an available peripheral power cable from the power supply to ensure stable power delivery. Configure fan curves or PWM control in the BIOS or motherboard software as needed.

Recommendations

Use the Molex power connection whenever multiple fans are attached to prevent overloading the motherboard fan header; ensure the Molex connector is firmly seated and avoid routing the cable where it could interfere with moving components.
