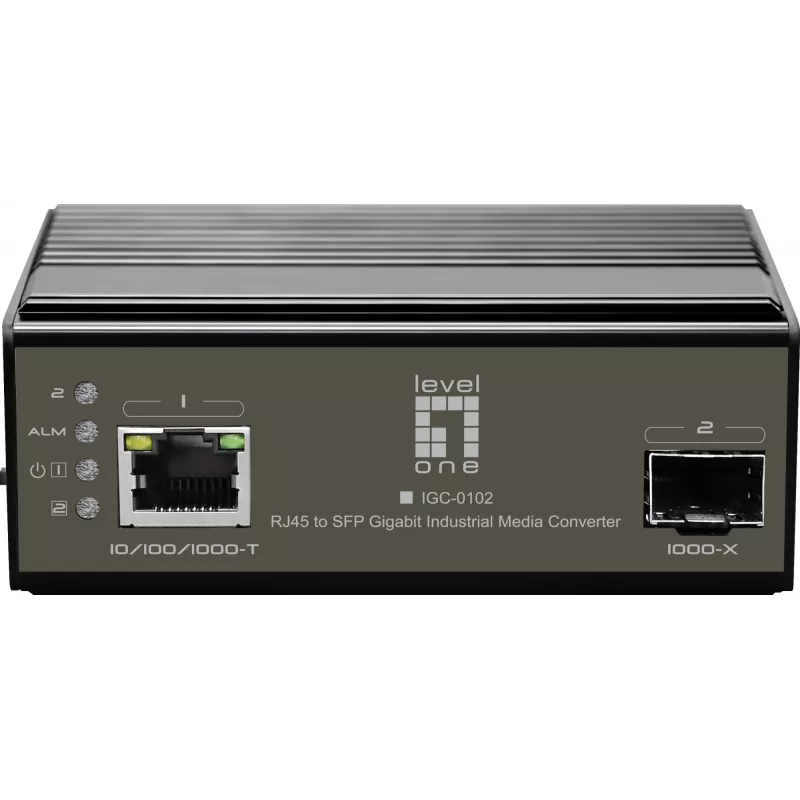

LevelOne IGC-0102 netwerk-mediaconverter 1000 Mbit/s zwart

The LevelOne IGC-0102 Network Media Converter is a compact, industrial-grade device that converts between copper Ethernet and SFP fiber connections to extend network distances. Designed for security, transportation and telecommunications environments, it supports Gigabit speeds up to 1000 Mbit/s and complies with IEEE standards 802.3, 802.3u, 802.3ab and 802.3z. The unit comes in a durable metal housing, includes LED indicators for activity, alarm, link and power, and can be mounted on DIN-rail or a wall for flexible deployment. It is rated to operate in wide temperature ranges for reliable performance in harsh conditions.

Advantages

The IGC-0102 provides stable Gigabit media conversion with an SFP fiber connector and one RJ-45 Ethernet port, enabling long-distance links while maintaining standard Ethernet compatibility. Its metal enclosure and industrial temperature tolerance (-40°C to 75°C) make it suitable for demanding installations. Built-in LEDs simplify status monitoring and alarm indication, and the compact form factor supports DIN-rail or wall-mounted setups.

Suitable for

• IP surveillance systems and security networks
• Traffic monitoring and intelligent transportation systems
• Telecommunications and long-distance Ethernet extensions
• Industrial network installations requiring DIN-rail or wall mounting

Key specifications

• Maximum data transfer rate: 1000 Mbit/s
• Ethernet LAN (RJ-45) ports: 1
• Fiber ports quantity: 1 (SFP)
• Supported IEEE standards: 802.3, 802.3u, 802.3ab, 802.3z
• Indicators: Activity, Alarm, Link, Power
• Housing: Metal; Colour: Black
• Operating temperature range: -40°C to 75°C
• Dimensions: 65 mm x 36 mm x 101 mm; Weight: 0.3 kg

How to use

Install the LevelOne IGC-0102 on a DIN-rail or mount it to a wall according to site requirements. Insert a compatible SFP module into the SFP slot and connect the fiber cable. Connect the Ethernet device or switch to the RJ-45 port with a standard Ethernet cable. Power the unit and verify LED indicators for link and activity; configure connected network equipment as needed to establish communication.

Recommendations

For reliable operation, use manufacturer-recommended SFP modules and ensure the device is installed within the stated temperature range (-40°C to 75°C). Place the converter in a ventilated location and verify cable types and lengths meet your network design to avoid signal degradation.
