Lindy 48161 netwerkkabel grijs 0,5 m Cat6 U/UTP (UTP)

Lindy 48161 netwerkkabel grijs 0,5 m Cat6 U/UTP (UTP)
Lindy 48161 netwerkkabel grijs 0,5 m Cat6 U/UTP (UTP)
Lindy 48161 netwerkkabel grijs 0,5 m Cat6 U/UTP (UTP)
Lindy 48161 netwerkkabel grijs 0,5 m Cat6 U/UTP (UTP)
Lindy 48161 netwerkkabel grijs 0,5 m Cat6 U/UTP (UTP)
Lindy 48161 netwerkkabel grijs 0,5 m Cat6 U/UTP (UTP)
12,93 €
Cat.6 U/UTP CCA network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the speci... Lees meer
Voorraad Niet op voorraadGeen voorraad Code 2220629 Merk LINDY Model 48161 Garantie 2 jaar

Bezorging & retourneren

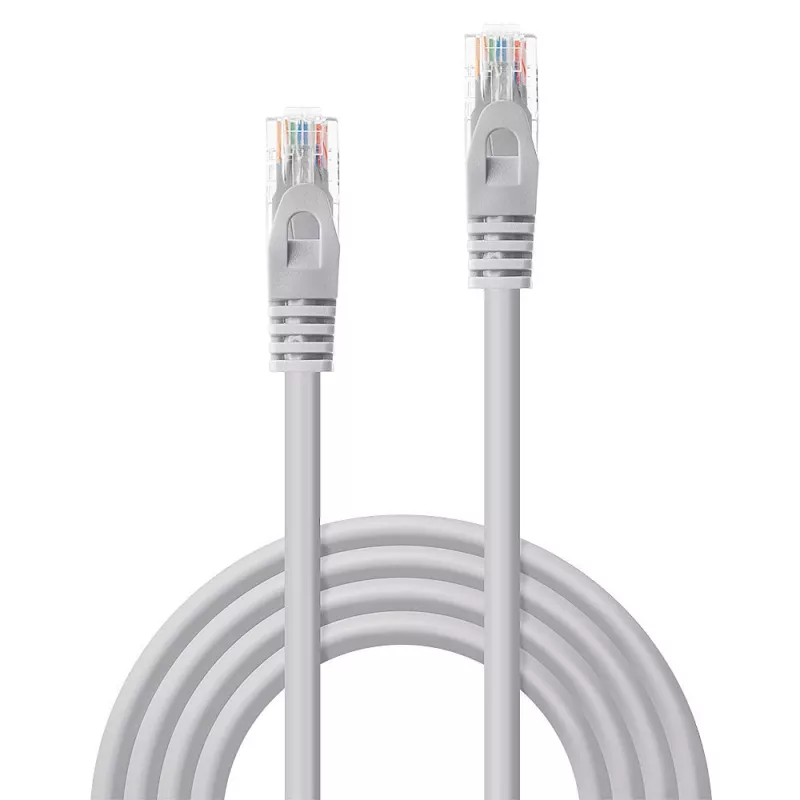

Cat.6 U/UTP CCA network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

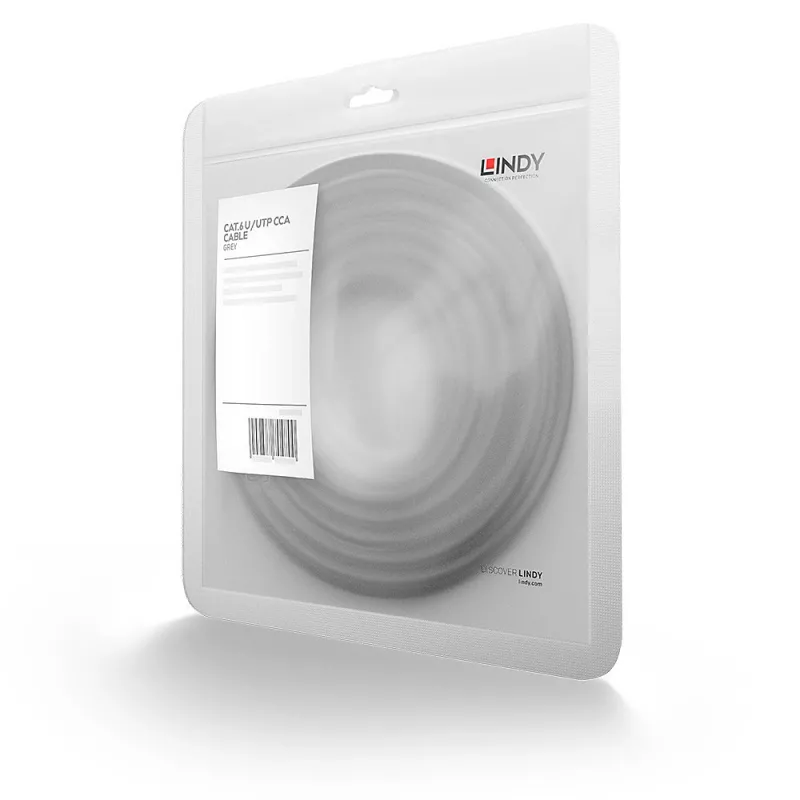

Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

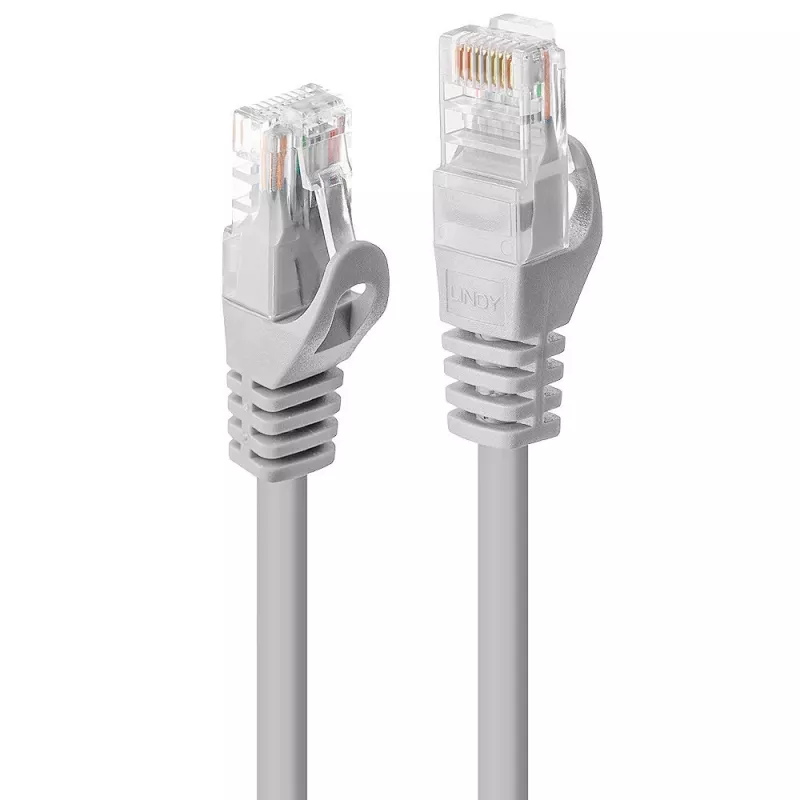

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The high frequencies used in network technology cause a high current load in the outer layers of the conductors due to the skin effect , while the conductor cores are only subjected to very low electrical loads. This allows the use of copper clad aluminium (CCA) conductor material, making this cable more cost-effective than pure copper cables.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m.
Available colours: Grey, Blue, Red, Black, White.

Lindy 48161. Cable length: 0.5 m, Cable standard: Cat6, Cable shielding: U/UTP (UTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Product colour: Grey

Belangrijkste kenmerken
  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.6 U/UTP, CCA
  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss
  • 0.5 m
  • RJ-45 Male
  • RJ-45 Male
  • Cat6 U/UTP (UTP)
  • Grey
Specificaties
Aansluiting 1
RJ-45
Aansluiting 2
RJ-45
Afmetingen connector 1 (B x D x H)
11.6 x 22.8 x 8.3 mm
Afmetingen connector 2 (B x D x H)
11.6 x 22.8 x 8.3 mm
AWG-draaddikte
26
Bedrijfstemperatuur (T-T)
-10 - 60 °C
Bekabelingstechnologie
10/100/1000Base-T(X)
Buigradius (min.)
6.9 cm
Buitendiameter
5.8 mm
Categorie
6
Certificering
RoHS, REACH, California Proposition 65
Coating connectorcontacten
Gold
Frequentie
250 MHz
Geharmoniseerd Systeem (HS)-code
84733080
Geslacht aansluiting 1
Male
Geslacht aansluiting 2
Male
Kabelafscherming
U/UTP (UTP)
Kabellengte
0.5 m
Kabelnorm
Cat6
Materiaal geleider
Copper-Clad Aluminium (CCA)
Materiaal mantel
Polyvinyl chloride (PVC)
Opslagtemperatuur (T-T)
-20 - 75 °C
Productkleur
Grey
Type verpakking
Polybag
