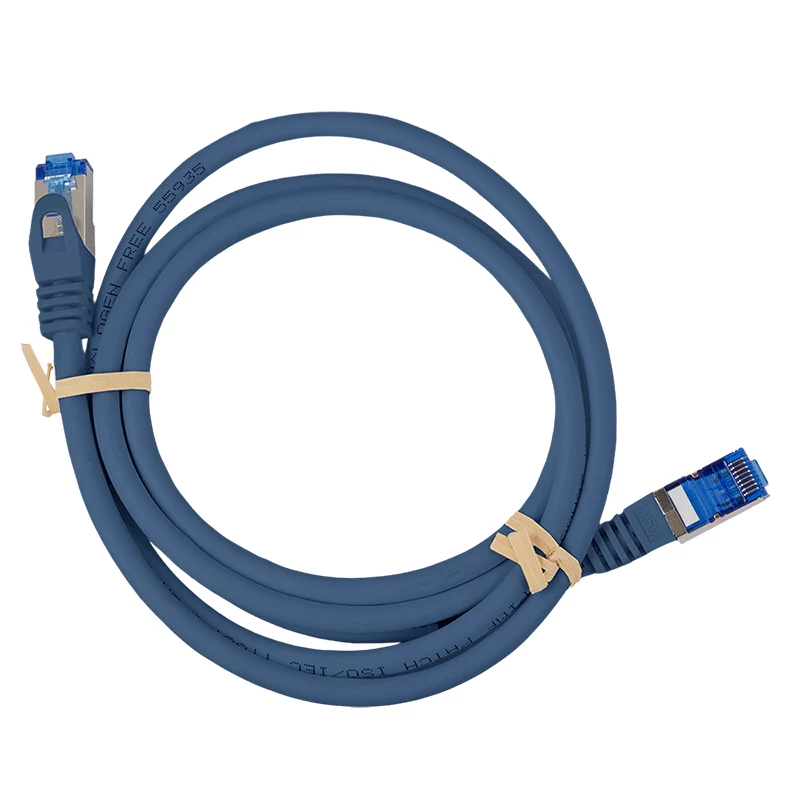

LogiLink Cat.6A S/FTP LSZH patchkabel, 5 m, blauw, EconLine

In server rooms and office networks where high-speed data transfer is critical, the LogiLink Cat.6A S/FTP LSZH patch cable delivers reliable 10 Gigabit Ethernet performance. This 5-meter blue cable connects workstations, switches, and patch panels, ensuring a stable link for bandwidth-intensive applications like video conferencing and large file transfers.

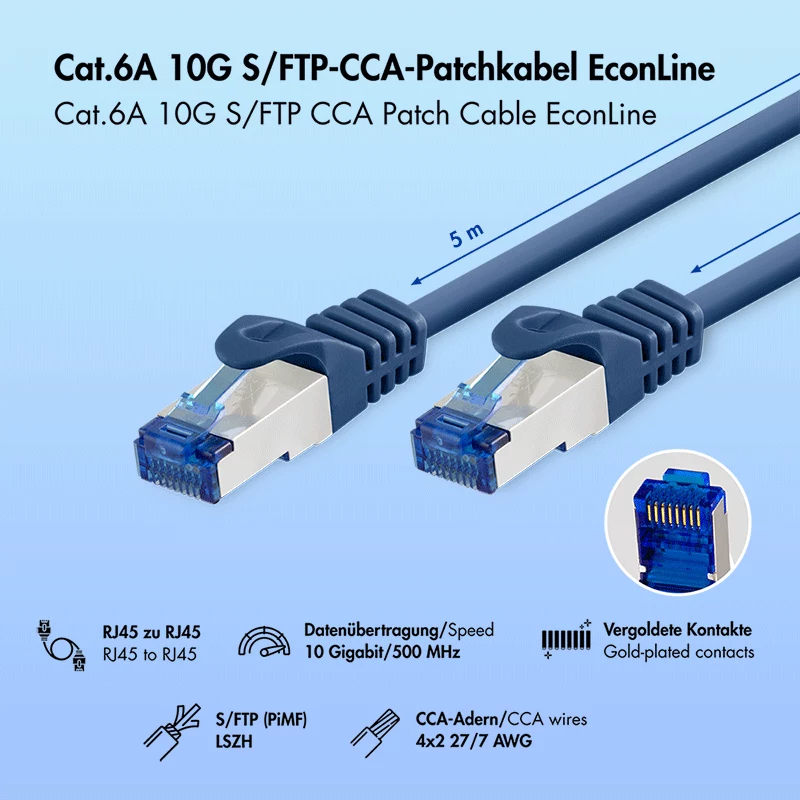

Key specifications

• Category: Cat.6A (Class EA)
• Length: 5 m
• Colour: Blue
• Conductor material: CCA (Copper Clad Aluminum)
• Shielding: S/FTP (PiMF + overall braid)
• Jacket: LSZH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male, gold-plated (50µ)
• Data rate: 10 Gbps
• Bandwidth: 500 MHz
• AWG: 26 (stranded)
• Wiring: TIA/EIA 568B
• Outer diameter: 6.0 mm

Why choose it

The S/FTP shielding with individually foiled pairs and an overall braid provides excellent protection against electromagnetic interference, ensuring error-free transmission even in electrically noisy environments. The LSZH jacket emits low smoke and no toxic halogens in case of fire, making it ideal for public buildings and confined spaces. Gold-plated contacts resist corrosion and maintain reliable connections over time.

Ideal use cases

• 10GBASE-T network connections in data centers
• Office LAN cabling for high-throughput workstations
• Connecting servers, switches, and patch panels
• Installations requiring halogen-free cabling

Good to know

This cable is part of the EconLine series, offering a cost-effective solution without compromising on Cat.6A performance. The stranded conductors provide flexibility for easy routing in tight spaces.
