Moederbord GIGABYTE B650M GAMING X AX — AMD B650, Socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE

Moederbord GIGABYTE B650M GAMING X AX — AMD B650, Socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE

Moederbord GIGABYTE B650M GAMING X AX — AMD B650, Socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE

Moederbord GIGABYTE B650M GAMING X AX — AMD B650, Socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE

Moederbord GIGABYTE B650M GAMING X AX — AMD B650, Socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE

Moederbord GIGABYTE B650M GAMING X AX — AMD B650, Socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE

Moederbord GIGABYTE B650M GAMING X AX — AMD B650, Socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE

36 mnd.

Moederbord GIGABYTE B650M GAMING X AX — AMD B650, Socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE

Moederbord GIGABYTE B650M GAMING X AX — AMD B650, Socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE

Moederbord GIGABYTE B650M GAMING X AX — AMD B650, Socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE

Moederbord GIGABYTE B650M GAMING X AX — AMD B650, Socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE

Moederbord GIGABYTE B650M GAMING X AX — AMD B650, Socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE

Moederbord GIGABYTE B650M GAMING X AX — AMD B650, Socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE

0 reviews • Review schrijven

284,99 €

The GIGABYTE B650M GAMING X AX is a Micro ATX motherboard for Socket AM5 designed for AMD Ryzen 7000/8000/9000 series processors. It supports DDR5 memory across four DIMM slots for up to 256 GB (overclocking to higher frequencies supported), integrates a 6+2+1 phase VRM for CPU power delivery, and o... Lees meer

Aantal

Niet op voorraad

Op verlanglijst Vergelijk dit product

Voorraad Niet op voorraadGeen voorraad Code 1731640 Merk GIGABYTE Model B650M GAMING X AX Garantie 3 jaar

Bezorging & retourneren

ASRock Z790 PG Lightning DDR5 ATX LGA1700 moederbord

Snel bekijken

ASRock Z790 PG Lightning DDR5 ATX LGA1700 moederbord

165,57 €

Excl. btw:136,84 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord ASUS PRIME Z890-P WIFI Intel Z890 LGA 1851 ATX, DDR5, 4x DIMM, 4x M.2, Wi-Fi 7, 2.5Gb LAN

Snel bekijken

Moederbord ASUS PRIME Z890-P WIFI Intel Z890 LGA 1851 ATX, DDR5, 4x DIMM, 4x M.2, Wi-Fi 7, 2.5Gb LAN

224,60 €

Excl. btw:185,62 €

In winkelwagen Op verlanglijst Vergelijk dit product

MSI B550M PRO-VDH Moederbord AMD B550 Socket AM4 micro ATX

Snel bekijken

MSI B550M PRO-VDH Moederbord AMD B550 Socket AM4 micro ATX

111,88 €

Excl. btw:92,46 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord GIGABYTE A620M DS3H, A620, AM5, ATX

Snel bekijken

Moederbord GIGABYTE A620M DS3H, A620, AM5, ATX

104,87 €

Excl. btw:86,67 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord GIGABYTE X870E AORUS MASTER, AMD, socket AM5, ATX

Snel bekijken

Moederbord GIGABYTE X870E AORUS MASTER, AMD, socket AM5, ATX

512,95 €

Excl. btw:423,93 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord ASRock B860M Pro RS WiFi — Intel B860, LGA 1851, micro ATX, DDR5, 4 DIMM, 3x M.2, 2.5Gb LAN, Wi‑Fi, Bluetooth

Snel bekijken

Moederbord ASRock B860M Pro RS WiFi — Intel B860, LGA 1851, micro ATX, DDR5, 4 DIMM, 3x M.2, 2.5Gb LAN, Wi‑Fi, Bluetooth

152,37 €

Excl. btw:125,93 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASRock moederbord B850M Riptide WiFi AM5 AMD B850 4 X DDR5 1 X HDMI 2.1 Tmds/frl 8g 1 X DisplayPort 1.4 met DSC mATX

Snel bekijken

ASRock moederbord B850M Riptide WiFi AM5 AMD B850 4 X DDR5 1 X HDMI 2.1 Tmds/frl 8g 1 X DisplayPort 1.4 met DSC mATX

179,52 €

Excl. btw:148,36 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord ASUS X870 MAX GAMING WIFI7 ATX — AMD X870, socket AM5, DDR5, 4 DIMM, 256 GB, Wi‑Fi 7, Bluetooth 5.4, 3 M.2, 2x USB4 Gen3x2

Snel bekijken

Moederbord ASUS X870 MAX GAMING WIFI7 ATX — AMD X870, socket AM5, DDR5, 4 DIMM, 256 GB, Wi‑Fi 7, Bluetooth 5.4, 3 M.2, 2x USB4 Gen3x2

305,26 €

Excl. btw:252,28 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASRock B850M Pro-A AM5 Micro-ATX moederbord

Snel bekijken

ASRock B850M Pro-A AM5 Micro-ATX moederbord

129,56 €

Excl. btw:107,08 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord MSI PRO B850M-P WIFI micro ATX, AMD B850, socket AM5, 4×DDR5 DIMM, 3×M.2, Wi‑Fi 7, 5Gb LAN

Snel bekijken

Moederbord MSI PRO B850M-P WIFI micro ATX, AMD B850, socket AM5, 4×DDR5 DIMM, 3×M.2, Wi‑Fi 7, 5Gb LAN

162,63 €

Excl. btw:134,41 €

In winkelwagen Op verlanglijst Vergelijk dit product

The GIGABYTE B650M GAMING X AX is a Micro ATX motherboard for Socket AM5 designed for AMD Ryzen 7000/8000/9000 series processors. It supports DDR5 memory across four DIMM slots for up to 256 GB (overclocking to higher frequencies supported), integrates a 6+2+1 phase VRM for CPU power delivery, and offers dual PCIe 4.0 M.2 slots alongside SATA III for flexible storage configurations. Connectivity includes 2.5GbE LAN, Wi‑Fi 6E with Bluetooth and antenna, multiple USB 3.2 and USB 2.0 ports, and an HDMI output. The board supports RAID 0/1/10 arrays and discrete graphics cards via PCIe slots, making it suitable for compact gaming and performance-oriented PC builds.

Advantages

This Micro ATX motherboard combines modern platform features—Socket AM5 compatibility, DDR5 memory support, and PCIe 4.0 M.2 storage—with integrated networking options including 2.5GbE and Wi‑Fi 6E. The four DIMM slots enable up to 256 GB of system memory for demanding multitasking, while the 6+2+1 phase VRM provides stable power delivery for supported Ryzen CPUs. Dual M.2 slots and RAID support allow for flexible high-speed storage setups, and the board includes a full complement of USB 3.2 ports and legacy USB 2.0 for peripherals.

Suitable for (tasks / use cases)

Compact gaming builds using AMD Ryzen 7000/8000/9000 series CPUs and discrete graphics.
High-performance productivity systems requiring DDR5 memory and multiple M.2 SSDs.
Home or small office systems needing fast wired and wireless networking (2.5GbE and Wi‑Fi 6E).
Systems where RAID 0/1/10 storage configurations are required for performance or redundancy.

When it may not be suitable

This Micro ATX board is not ideal if you require an extended ATX or full-size motherboard for many PCIe expansion cards or additional onboard features found on larger motherboards. Systems that depend on legacy sockets or older memory standards (DDR4) are not compatible with this AM5/DDR5 platform. Very large cooling solutions or extreme multi‑GPU configurations may be limited by the Micro ATX form factor and available PCIe lanes.

Key specifications

Form factor: Micro ATX
Chipset: AMD B650
CPU socket: Socket AM5 (supports AMD Ryzen 7000/8000/9000 series)
Memory: 4x DDR5 DIMM slots, up to 256 GB (supports overclocking up to rated frequencies)
Storage: 2x PCIe 4.0 M.2 slots, SATA III ports (for HDD/SSD)
Expansion: PCIe slots with discrete graphics support
Networking: 2.5GbE LAN and Wi‑Fi 6E with Bluetooth (antenna included)
Audio: 7.1 channel onboard audio

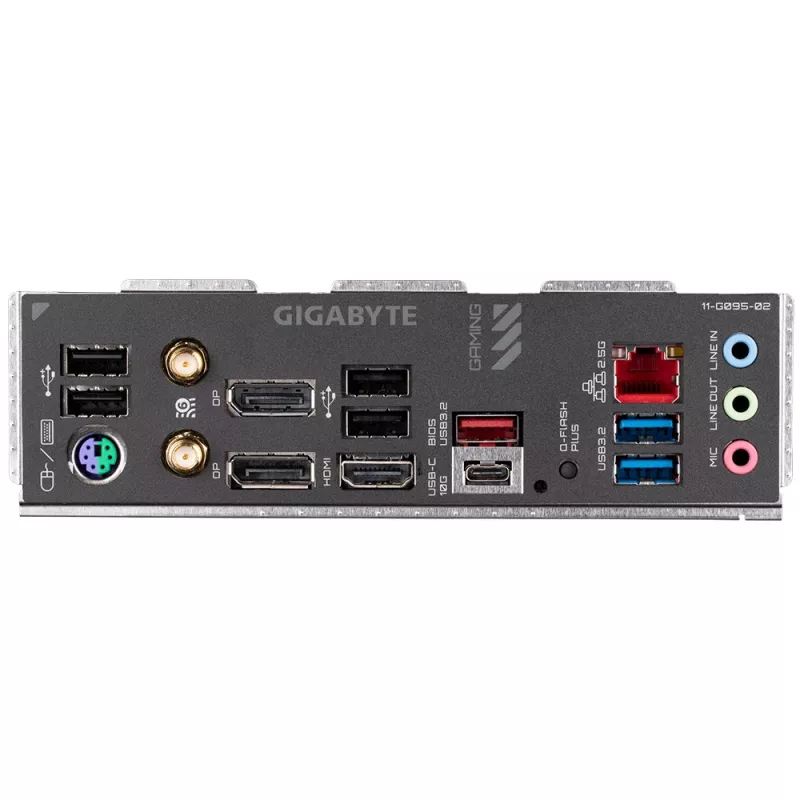

Rear I/O: HDMI output, multiple USB 3.2 Gen1/Gen2 Type-A and Type-C ports, USB 2.0 ports, RJ‑45 LAN
RAID support: RAID 0/1/10 for compatible storage devices

How to use

Install the GIGABYTE B650M GAMING X AX into a compatible Micro ATX case using standard motherboard standoffs and screws. Fit an AM5-compatible Ryzen processor, apply appropriate thermal solution, and populate DDR5 DIMMs across the slots according to the motherboard manual to enable dual- or quad-channel operation. Connect M.2 SSDs and SATA drives as needed, and configure RAID in the BIOS if required. Attach the Wi‑Fi antenna to the external connectors for wireless networking and plug in power, front-panel headers, and peripherals. Update the BIOS and chipset drivers after initial boot to ensure full compatibility and performance.

What to consider before purchase

Ensure your CPU is an AM5-compatible AMD Ryzen 7000/8000/9000 series processor.
Choose DDR5 memory modules; DDR4 is not supported on this board.
Verify your PC case supports Micro ATX form factor and can accommodate your cooler and GPU length.
Plan storage and RAID needs to confirm the number of M.2 and SATA devices required.
Check available PCIe lanes and expansion requirements if you need multiple add-in cards.

Recommendations

For balanced performance, install memory in matched DDR5 kits across recommended DIMM slots, use NVMe PCIe 4.0 M.2 SSDs for primary storage, and keep BIOS and driver packages up to date. Ensure adequate case airflow for stable VRM and CPU temperatures during sustained loads.

Belangrijkste kenmerken

Compact gaming builds using AMD Ryzen 7000/8000/9000 series CPUs and discrete graphics.
High-performance productivity systems requiring DDR5 memory and multiple M.2 SSDs.
Home or small office systems needing fast wired and wireless networking (2.5GbE and Wi‑Fi 6E).
Systems where RAID 0/1/10 storage configurations are required for performance or redundancy.
Form factor: Micro ATX
Chipset: AMD B650
CPU socket: Socket AM5 (supports AMD Ryzen 7000/8000/9000 series)
Memory: 4x DDR5 DIMM slots, up to 256 GB (supports overclocking up to rated frequencies)
Storage: 2x PCIe 4.0 M.2 slots, SATA III ports (for HDD/SSD)
Expansion: PCIe slots with discrete graphics support
Networking: 2.5GbE LAN and Wi‑Fi 6E with Bluetooth (antenna included)
Audio: 7.1 channel onboard audio
Rear I/O: HDMI output, multiple USB 3.2 Gen1/Gen2 Type-A and Type-C ports, USB 2.0 ports, RJ‑45 LAN
RAID support: RAID 0/1/10 for compatible storage devices
Ensure your CPU is an AM5-compatible AMD Ryzen 7000/8000/9000 series processor.
Choose DDR5 memory modules; DDR4 is not supported on this board.
Verify your PC case supports Micro ATX form factor and can accommodate your cooler and GPU length.
Plan storage and RAID needs to confirm the number of M.2 and SATA devices required.
Check available PCIe lanes and expansion requirements if you need multiple add-in cards.

Specificaties

12V-stroomconnector

Yes

Aantal batterijcellen

1

Aantal connectors behuizingsventilator

3

Aantal CPU-fanconnectors

1

Aantal DisplayPorts

2

Aantal DVI-D-poorten

0

Aantal EPS-stroomconnectoren (8-pins)

1

Aantal geheugenslots

4

Aantal HDMI-poorten

1

Aantal M.2 (M)-slots

2

Aantal ondersteunde harde schijven

4

Aantal ondersteunde opslagstations

6

Aantal PS/2-poorten

1

Aantal RGB LED-pinheaders

3

Aantal SATA III-connectors

4

Aantal USB 2.0-poorten

4

Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-A-poorten

2

Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-C-poorten

0

Aantal USB 3.2 Gen 2 (3.1 Gen 2) Type-A-poorten

1

Aantal USB 3.2 Gen 2 (3.1 Gen 2) Type-C-poorten

1

Aantal VGA (D-Sub)-poorten

0

ACPI-versie

5.0

Antenne inbegrepen

Yes

ATX-voedingsconnector (24-pins)

Yes

Audio-uitvoerkanalen

7.1 channels

Audiochip

Realtek ALC897

Audioconnector voorpaneel

Yes

Batterijen inbegrepen

Yes

Batterijtechnologie

Lithium-Manganese Dioxide (LiMnO2)

BIOS-geheugengrootte

256 Mbit

Bluetooth

Yes

Bluetooth-versie

5.3

Breedte

244 mm

Breedte verpakking

270 mm

Clear CMOS-jumper

Yes

Compatibele processorserie

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component voor

PC

CPU-ventilatorconnector

Yes

Desktop Management Interface (DMI)-versie

2.7

Diepte

244 mm

Diepte verpakking

268 mm

DirectX-versie

12.0

DisplayPort-versie

1.4

ECC-compatibiliteit

Non-ECC

EPS-stroomconnector (8-pins)

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45)-poorten

1

Frontpaneelconnector

Yes

Garantieperiode

3 year(s)

Geheugenkanalen

Dual-channel

Gewicht accu

3 g

Gewicht verpakking

1.9 kg

Grootste keygrootte 1e M.2

25110

Grootste keygrootte 2e M.2

25110

HDCP

Yes

HDMI-versie

2.1

Hoogste PCI Express-generatie 1e M.2

4.0

Hoogste PCI Express-generatie 2e M.2

4.0

Hoogste wifi-standaard

Wi-Fi 6E (802.11ax)

Hoogte

35 mm

Hoogte verpakking

68 mm

Koptelefoonuitgangen

1

LAN-controller

Realtek RTL8125

Land van herkomst

China

Lijningang

Yes

Lithiumgewicht per accu

0.07 g

Maximaal intern geheugen

256 GB

Maximaal intern geheugen per slot

64 GB

Maximale resolutie

4096 x 2160 pixels

Meegeleverde software

Norton® Internet Security (OEM version) LAN bandwidth management software

Microfooningang

Yes

Model wifi-controller

Realtek RTL8852CE

Moederbordchipset

AMD B650

Moederbordchipsetfamilie

AMD

Ondersteunde geheugenkloksnelheden

4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz

Ondersteunde geheugenkloksnelheid (max.)

8000 MHz

Ondersteunde geheugentypes

DDR5-SDRAM

Ondersteunde interfaces opslagstations

M.2, SATA III

Ondersteunde processorsockets

Socket AM5

Ondersteunde typen opslagstations

HDD & SSD

Ondersteunde Windows-besturingssystemen

Windows 10 x64, Windows 11 x64

Ondersteuning discrete videokaart

Yes

Ondersteuning voor parallelle verwerkingstechnologie

Not supported

Ongebufferd geheugen

Yes

Pc-statusbewaking

Fan, Temperature, Voltage

PCI Express x1 (Gen 3.x)-slots

1

PCI Express x16 (Gen 4.x)-slots

1

Processormerk

AMD

Processorsocket

Socket AM5

Producten per binnendoos

1 pc(s)

Productkleur

Brown

RAID-niveaus

0, 1, 10

RAID-ondersteuning

Yes

RGB LED-pinheader

Yes

Schroeven inbegrepen

Yes

Seriële poortheaders

1

System Management BIOS (SMBIOS)-versie

2.7

TPM-connector

Yes

Type batterij

CR2032

Type BIOS

UEFI AMI

Type ethernetinterface

2.5 Gigabit Ethernet

Type geheugenslots

DIMM

Type stroombron

ATX

USB 2.0-connectors

2

USB 3.2 Gen 1 (3.1 Gen 1)-connectors

1

USB 3.2 Gen 2 (3.1 Gen 2)-connectors

1

Vormfactor moederbord

micro ATX

Wifi

Yes

Wifi-AP-antenneaansluiting

2

Wifi-standaarden

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Handleiding

Document openen

Folder

Document openen
