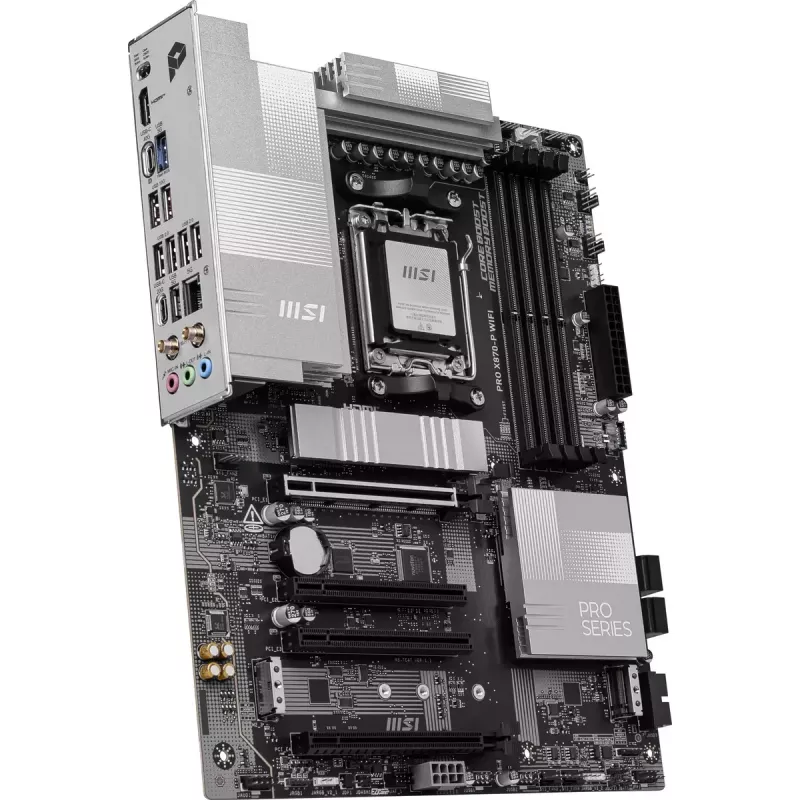

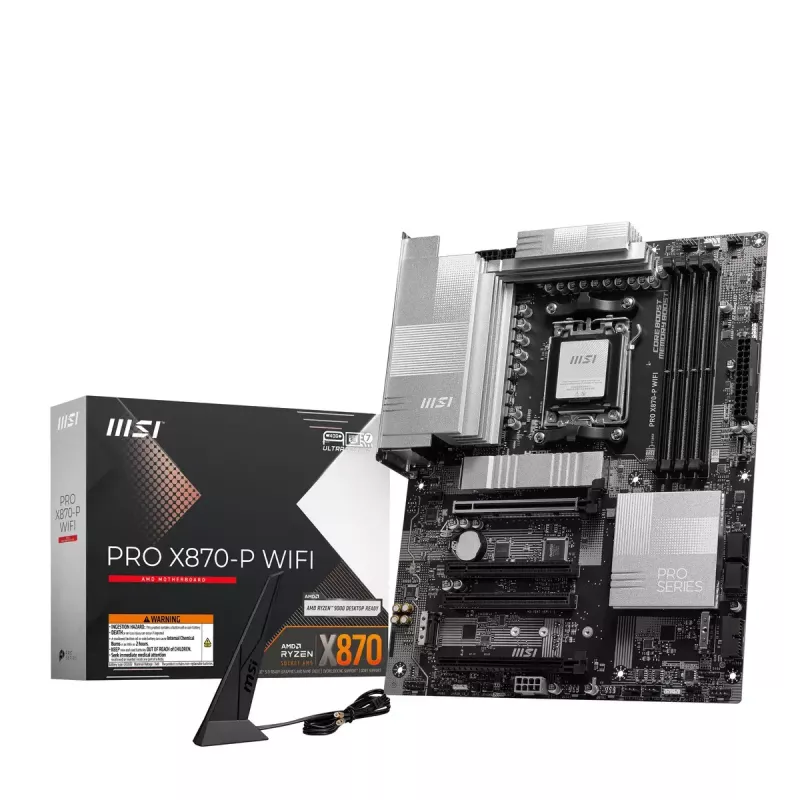

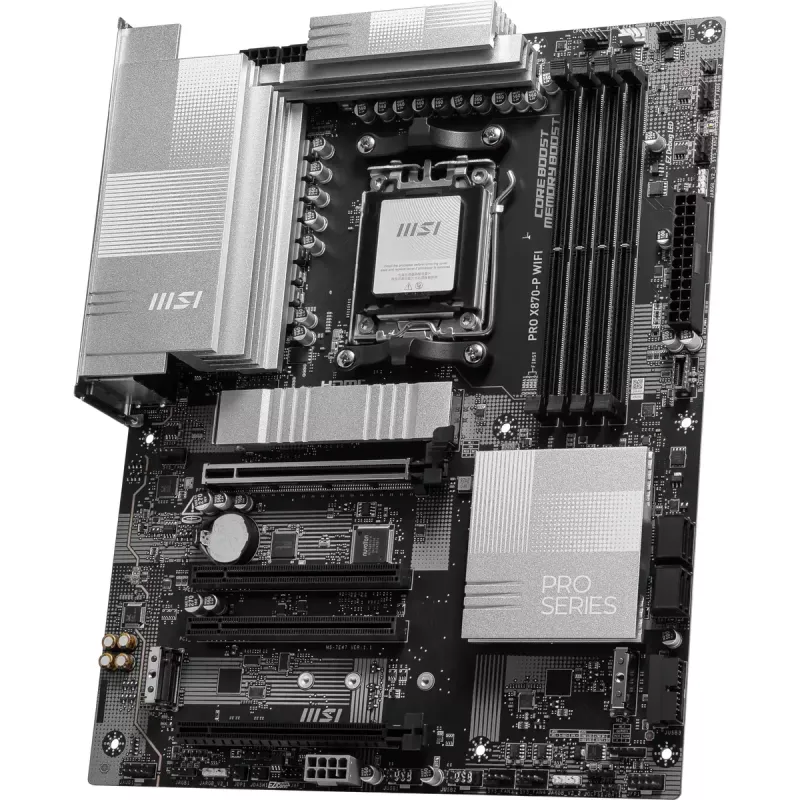

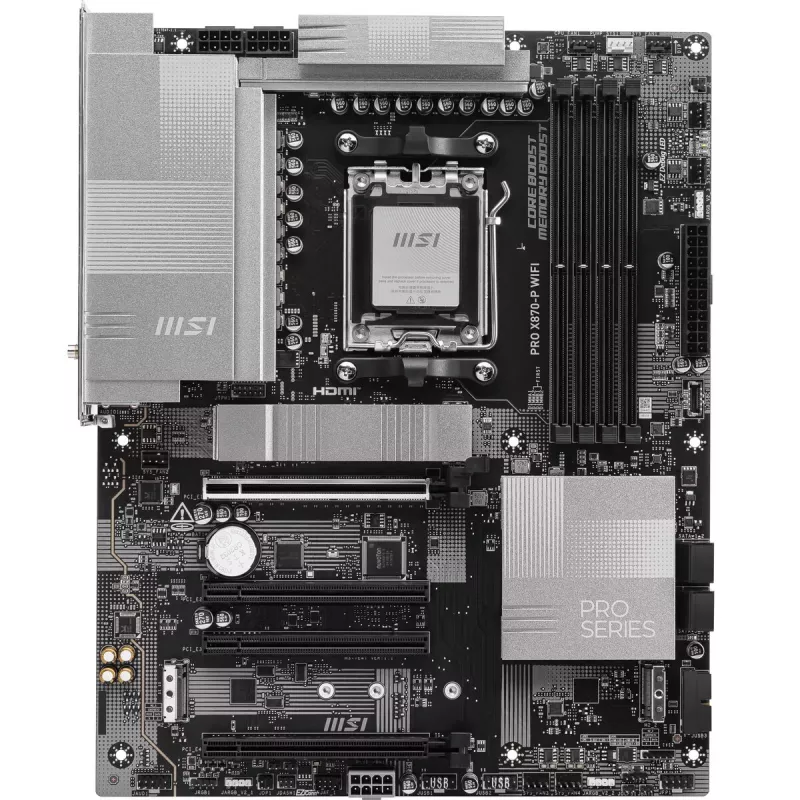

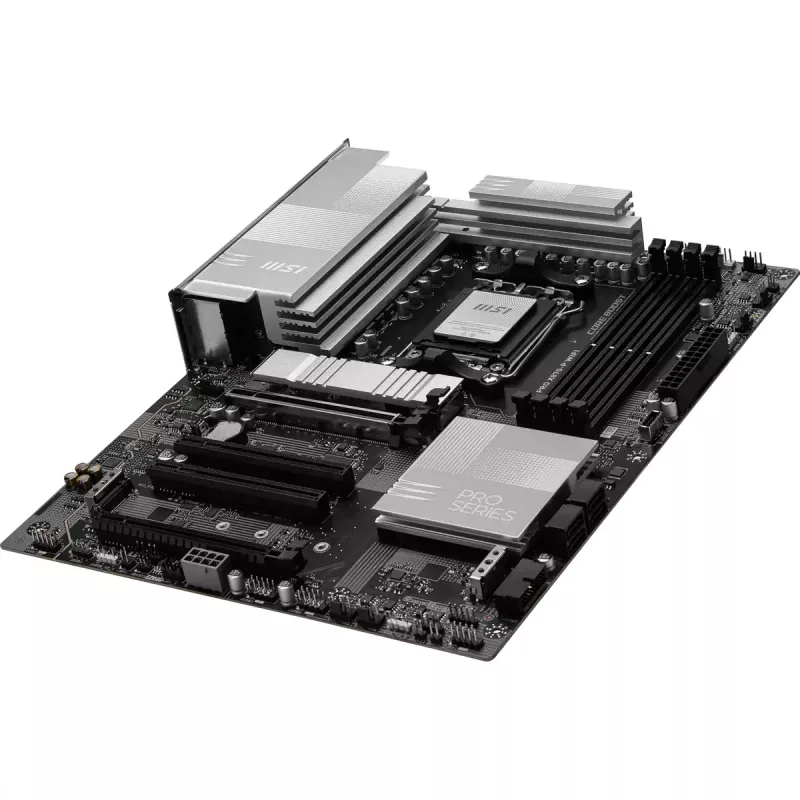

Moederbord MSI PRO X870-P WIFI, AMD X870, socket AM5, ATX

Moederbord MSI PRO X870-P WIFI, AMD X870, socket AM5, ATX

Moederbord MSI PRO X870-P WIFI, AMD X870, socket AM5, ATX

Moederbord MSI PRO X870-P WIFI, AMD X870, socket AM5, ATX

Moederbord MSI PRO X870-P WIFI, AMD X870, socket AM5, ATX

Moederbord MSI PRO X870-P WIFI, AMD X870, socket AM5, ATX

Moederbord MSI PRO X870-P WIFI, AMD X870, socket AM5, ATX

36 mnd.

Moederbord MSI PRO X870-P WIFI, AMD X870, socket AM5, ATX

Moederbord MSI PRO X870-P WIFI, AMD X870, socket AM5, ATX

Moederbord MSI PRO X870-P WIFI, AMD X870, socket AM5, ATX

Moederbord MSI PRO X870-P WIFI, AMD X870, socket AM5, ATX

Moederbord MSI PRO X870-P WIFI, AMD X870, socket AM5, ATX

Moederbord MSI PRO X870-P WIFI, AMD X870, socket AM5, ATX

0 reviews • Review schrijven

841,01 €

MSI PRO X870-P WIFI is an ATX motherboard for Socket AM5, designed to support AMD Ryzen™ 7000–9000 Series processors. The board uses the AMD X870 chipset and supports up to 256 GB of DDR5 memory across four DIMM slots. Built for high-throughput systems, it includes PCIe 5.0 for graphics and NVMe, mu... Lees meer

Aantal

Niet op voorraad

Op verlanglijst Vergelijk dit product

Voorraad Niet op voorraadGeen voorraad Code 312218 Merk MSI Model PRO X870-P WIFI Garantie 3 jaar

Bezorging & retourneren

Moederbord ASRock B650 Steel Legend WiFi — AMD B650, socket AM5, ATX, DDR5, 4x DIMM, 192 GB, Wi‑Fi 6E, 2,5 Gb LAN

Snel bekijken

Moederbord ASRock B650 Steel Legend WiFi — AMD B650, socket AM5, ATX, DDR5, 4x DIMM, 192 GB, Wi‑Fi 6E, 2,5 Gb LAN

185,54 €

Excl. btw:153,34 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASUS ROG STRIX B850-E GAMING WIFI AMD B850 Socket AM5 ATX

Snel bekijken

ASUS ROG STRIX B850-E GAMING WIFI AMD B850 Socket AM5 ATX

358,86 €

Excl. btw:296,58 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord ASUS PRIME H610M-A WIFI D4 — Intel H610, LGA1700, micro ATX, DDR4, 2x DIMM, Wi‑Fi 5, Bluetooth 5.0, 2x M.2, HDMI 2.1, DP 1.4

Snel bekijken

Moederbord ASUS PRIME H610M-A WIFI D4 — Intel H610, LGA1700, micro ATX, DDR4, 2x DIMM, Wi‑Fi 5, Bluetooth 5.0, 2x M.2, HDMI 2.1, DP 1.4

103,00 €

Excl. btw:85,13 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASUS PRIME B760-PLUS D4 Intel B760 LGA 1700 ATX

Snel bekijken

ASUS PRIME B760-PLUS D4 Intel B760 LGA 1700 ATX

124,92 €

Excl. btw:103,24 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord ASRock X870 Riptide WiFi — ATX, AMD X870, Socket AM5, DDR5, 4 DIMM, 256 GB, Wi-Fi 7, 2,5GbE

Snel bekijken

Moederbord ASRock X870 Riptide WiFi — ATX, AMD X870, Socket AM5, DDR5, 4 DIMM, 256 GB, Wi-Fi 7, 2,5GbE

234,45 €

Excl. btw:193,76 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord MSI MAG X870E TOMAHAWK WIFI — AMD X870E, Socket AM5, ATX, 4x DDR5 DIMM, 4x M.2, Wi‑Fi, 5Gb Ethernet

Snel bekijken

Moederbord MSI MAG X870E TOMAHAWK WIFI — AMD X870E, Socket AM5, ATX, 4x DDR5 DIMM, 4x M.2, Wi‑Fi, 5Gb Ethernet

359,89 €

Excl. btw:297,43 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord MSI MAG B850 TOMAHAWK MAX WIFI — AMD B850, socket AM5, ATX, DDR5, 4×M.2, Wi-Fi 7, 5Gb LAN, 7.1 audio

Snel bekijken

Moederbord MSI MAG B850 TOMAHAWK MAX WIFI — AMD B850, socket AM5, ATX, DDR5, 4×M.2, Wi-Fi 7, 5Gb LAN, 7.1 audio

298,64 €

Excl. btw:246,81 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASUS ProArt X870E-CREATOR WIFI AMD X870E socket AM5 ATX

Snel bekijken

ASUS ProArt X870E-CREATOR WIFI AMD X870E socket AM5 ATX

508,21 €

Excl. btw:420,01 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASRock B850 LiveMixer WiFi ATX-moederbord

Snel bekijken

ASRock B850 LiveMixer WiFi ATX-moederbord

199,80 €

Excl. btw:165,13 €

In winkelwagen Op verlanglijst Vergelijk dit product

GIGABYTE B760 DS3H GEN5 moederbord - ondersteunt Intel Core CPU's van de 14e gen., 8+2+1 fasen digitaal VRM, tot 5600 MHz DDR5, 2xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 2x2

Snel bekijken

GIGABYTE B760 DS3H GEN5 moederbord - ondersteunt Intel Core CPU's van de 14e gen., 8+2+1 fasen digitaal VRM, tot 5600 MHz DDR5, 2xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 2x2

108,79 €

Excl. btw:89,91 €

In winkelwagen Op verlanglijst Vergelijk dit product

MSI PRO X870-P WIFI is an ATX motherboard for Socket AM5, designed to support AMD Ryzen™ 7000–9000 Series processors. The board uses the AMD X870 chipset and supports up to 256 GB of DDR5 memory across four DIMM slots. Built for high-throughput systems, it includes PCIe 5.0 for graphics and NVMe, multiple M.2 and SATA III storage options with RAID 0/1 support, integrated Wi‑Fi 7 and 5 Gb Ethernet, and a silver aesthetic that fits both white and black PC builds.

Advantages

PRO X870-P WIFI features a 14+2+1 digital power design with dual power connectors and 60A Smart Power Stages to sustain high-end AMD processors. The board provides PCIe 5.0 bandwidth for next‑generation GPUs and NVMe drives, USB4 support, and advanced networking with Wi‑Fi 7 and 5G LAN. MSI integration of AI features in MSI Center and BIOS helps simplify tuning and system management for professional workloads.

Suitable for

High-performance desktop builds using AMD Ryzen™ 7000–9000 Series CPUs
Content creation and professional multitasking with large DDR5 memory capacities
Gaming systems requiring PCIe 5.0 GPUs and fast NVMe storage
Workstations needing high-speed networking (Wi‑Fi 7, 5 Gb Ethernet)

Key specifications

Form factor: ATX
Chipset: AMD X870
Socket: AM5
Memory: DDR5, up to 256 GB, 4 DIMM slots
Storage interfaces: M.2 (PCIe 5.0 support), SATA III; RAID 0/1
Networking: Wi‑Fi 7 (802.11be), 5 Gb Ethernet
Expansion: PCIe 5.0 for graphics and NVMe

How to use

Install the MSI PRO X870-P WIFI into a compatible ATX case and mount an AM5-compatible AMD Ryzen processor following standard CPU and cooler installation procedures. Populate DDR5 memory modules across the DIMM slots according to the motherboard manual for optimal dual-channel operation. Connect storage devices to M.2 slots or SATA III ports and configure RAID if required. Attach power connectors including the supplemental CPU power as specified, then connect peripherals, network (Wi‑Fi or wired), and proceed to configure BIOS or MSI Center for system settings and any AI-assisted tuning.

Recommendations

For stable performance with high-core-count Ryzen processors, use high-quality power supplies and cooling solutions, populate memory in matched DDR5 kit pairs, and keep BIOS/firmware updated. Use the EZ M.2 Shield Frozr II for thermally sensitive NVMe drives and enable appropriate network drivers for Wi‑Fi 7 and 5 Gb LAN functionality.

Belangrijkste kenmerken

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
AMD Socket AM5 AMD Ryzen™ 7
PC ATX AMD X870 7.1 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 4
5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

Specificaties

Aantal DisplayPorts

2

Aantal DVI-D-poorten

0

Aantal geheugenslots

4

Aantal HDMI-poorten

1

Aantal M.2 (M)-slots

3

Aantal mSATA-poorten

0

Aantal ondersteunde harde schijven

7

Aantal ondersteunde opslagstations

4

Aantal SATA II-poorten

0

Aantal SATA III-connectors

4

Aantal SATA-poorten

0

Aantal USB 2.0-poorten

4

Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-A-poorten

2

Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-C-poorten

1

Aantal USB 3.2 Gen 2 (3.1 Gen 2) Type-A-poorten

2

Aantal USB 3.2 Gen 2 (3.1 Gen 2) Type-C-poorten

1

Aantal VGA (D-Sub)-poorten

0

ATX-voedingsconnector (24-pins)

Yes

Audio-uitvoerkanalen

7.1 channels

Bluetooth

Yes

Bluetooth-versie

5.4

Breedte

243.8 mm

Compatibele processorserie

AMD Ryzen™ 7

Component voor

PC

CPU-ventilatorconnector

Yes

Diepte

304.8 mm

ECC-compatibiliteit

Non-ECC

EPS-stroomconnector (8-pins)

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45)-poorten

1

Geheugenkanalen

Dual-channel

Geïntegreerde videokaart

No

Hoogste wifi-standaard

Wi-Fi 7 (802.11be)

Maximaal door processor ondersteund intern geheugen

256 GB

Maximaal intern geheugen

256 GB

Microfooningang

Yes

Moederbordchipset

AMD X870

Moederbordchipsetfamilie

AMD

Ondersteunde geheugenkloksnelheden

4800,5600,8200 MHz

Ondersteunde geheugenkloksnelheid (max.)

8200 MHz

Ondersteunde geheugentypes

DDR5-SDRAM

Ondersteunde interfaces opslagstations

M.2, SATA III

Ondersteunde processorsockets

Socket AM5

Ondersteunde typen opslagstations

HDD & SSD

Ondersteunde Windows-besturingssystemen

Windows 11 x64

Pc-statusbewaking

CPU, Fan, Temperature, Voltage

PCI Express x16-slots

4

Processormerk

AMD

Processorsocket

Socket AM5

Productkleur

Black

RAID-niveaus

0, 1

RAID-ondersteuning

Yes

S/PDIF-uitgang

Yes

Totaal aantal SATA-poorten

4

Type ethernetinterface

5 Gigabit Ethernet

Type geheugenslots

DIMM

USB 2.0-connectors

4

USB 3.2 Gen 1 (3.1 Gen 1)-connectors

2

USB 3.2 Gen 2 (3.1 Gen 2)-connectors

1

Vormfactor moederbord

ATX

Wifi

Yes

Wifi-standaarden

Wi-Fi 7 (802.11be)

Folder

Document openen

Handleiding

Document openen
