Montageconsole Legrand CB 100 1,1 kN V4A roestvrij staal

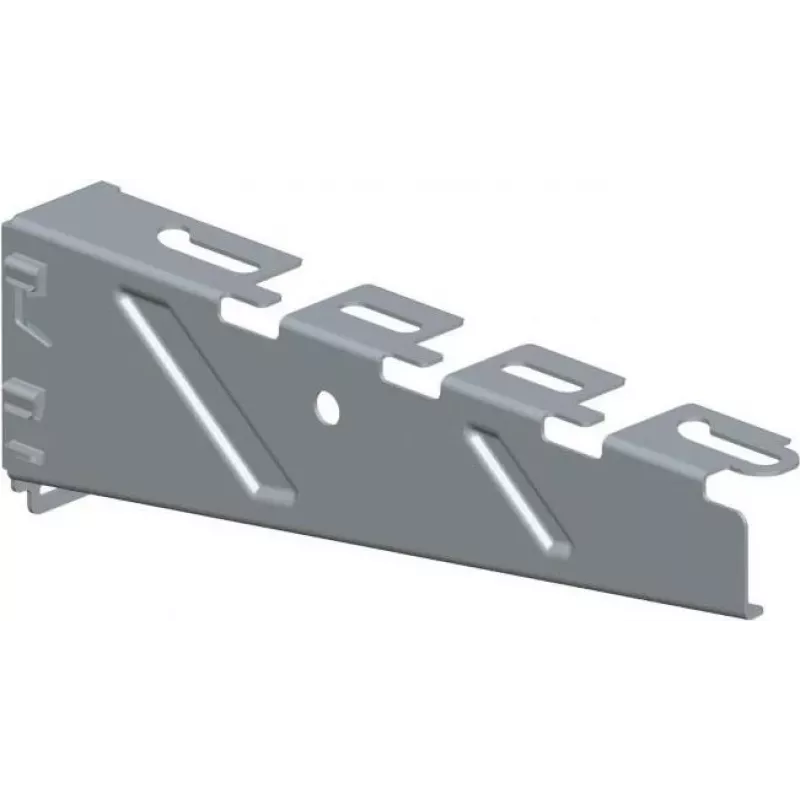

The Legrand CB 100 mounting console is a compact stainless steel bracket engineered to support equipment with a rated load capacity of 1.1 kN. Constructed from V4A stainless steel, this console provides enhanced corrosion resistance for both indoor and outdoor installation environments. The design is intended for reliable fastening of electrical enclosures, control panels and similar components where a small footprint and durable material are required.

Advantages

The V4A stainless steel construction ensures long-term resistance to corrosion and weathering, reducing maintenance needs in humid or marine-influenced environments. A rated load capacity of 1.1 kN gives a clear mechanical performance limit for secure mounting of panels and enclosures. The compact shape and standardized fixing points simplify installation in restricted spaces and on a variety of substrates.

Suitable for

Key specifications

How to use

Select a mounting location capable of bearing the rated load and compatible with the bracket’s fixing pattern. Position the console against the mounting surface and mark fixing points. Use appropriate fasteners for the substrate (stainless steel or corrosion-resistant anchors recommended for outdoor or marine environments). Secure the console and then attach the enclosure or equipment, verifying that the total load does not exceed 1.1 kN and that all fasteners are tightened to the required torque.

Recommendations

Inspect mounting surfaces and fasteners periodically for signs of loosening or corrosion. For coastal or highly corrosive environments, use stainless fasteners and consider additional protective measures. Do not exceed the 1.1 kN rated load; distribute loads evenly when mounting larger or asymmetrical equipment.
