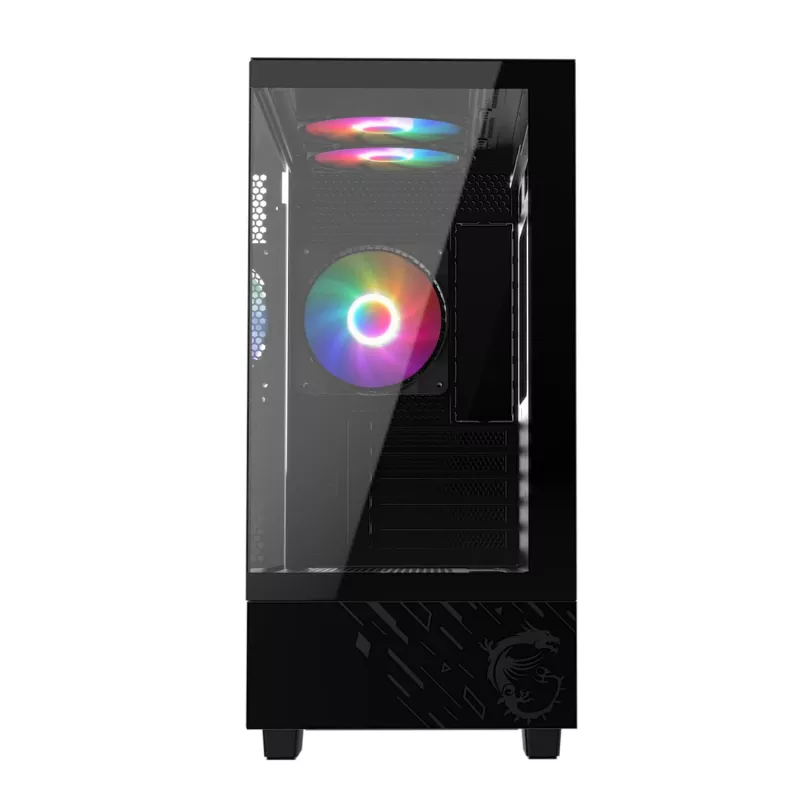

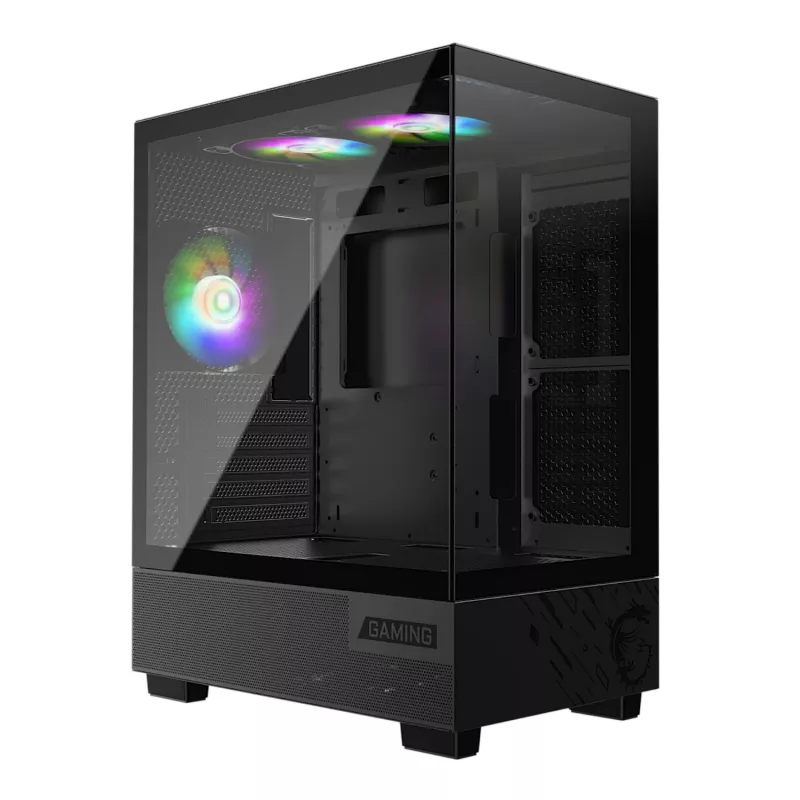

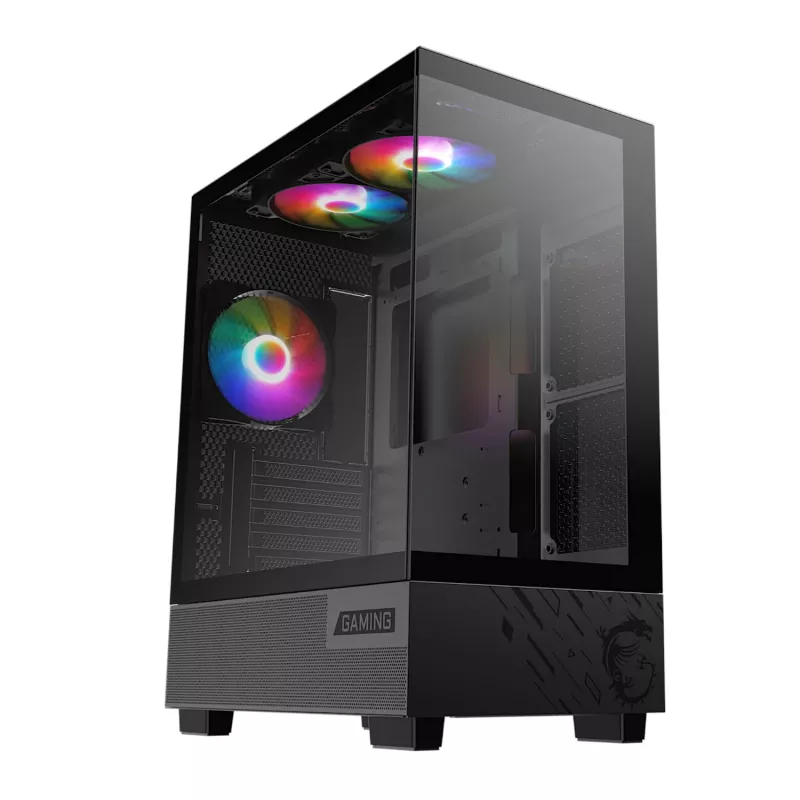

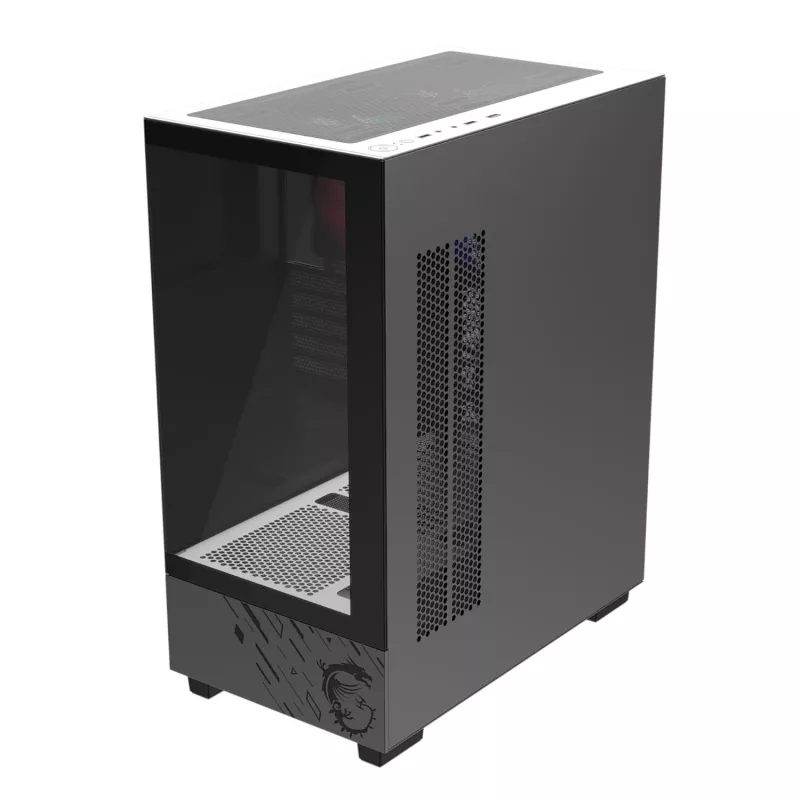

MSI PAG PANO M110A Micro-ATX gaming-behuizing – zwart

With support for graphics cards up to 390mm and CPU coolers up to 175mm, the MSI PAG PANO M110A Micro-ATX Gaming Chassis in black packs serious hardware potential into a compact frame. Its panoramic tempered glass front and side panels offer an unobstructed view of your components, while four pre-installed 120mm ARGB fans deliver immediate airflow and vibrant lighting.

Overview

The PAG PANO M110A is a Micro-ATX tower that balances form and function. It accommodates Micro-ATX and Mini-ITX motherboards, offers flexible storage options with two 2.5" SSD bays and one 3.5" HDD bay, and features a modern front I/O with USB 3.2 Gen 2 Type-C, two USB 3.2 Gen 1 Type-A ports, and separate audio and mic jacks. The case supports ATX power supplies up to 200mm in length and includes dust filters on the top, bottom, and front to keep internals clean.

What stands out

• Panoramic tempered glass design: Showcases your build from multiple angles.
• Four pre-installed ARGB fans: Three 120mm front and one 120mm rear, compatible with MSI Mystic Light Sync.
• Extensive cooling support: Front and top can mount up to 360mm radiators or 3x 120mm / 2x 140mm fans; rear supports 120mm.

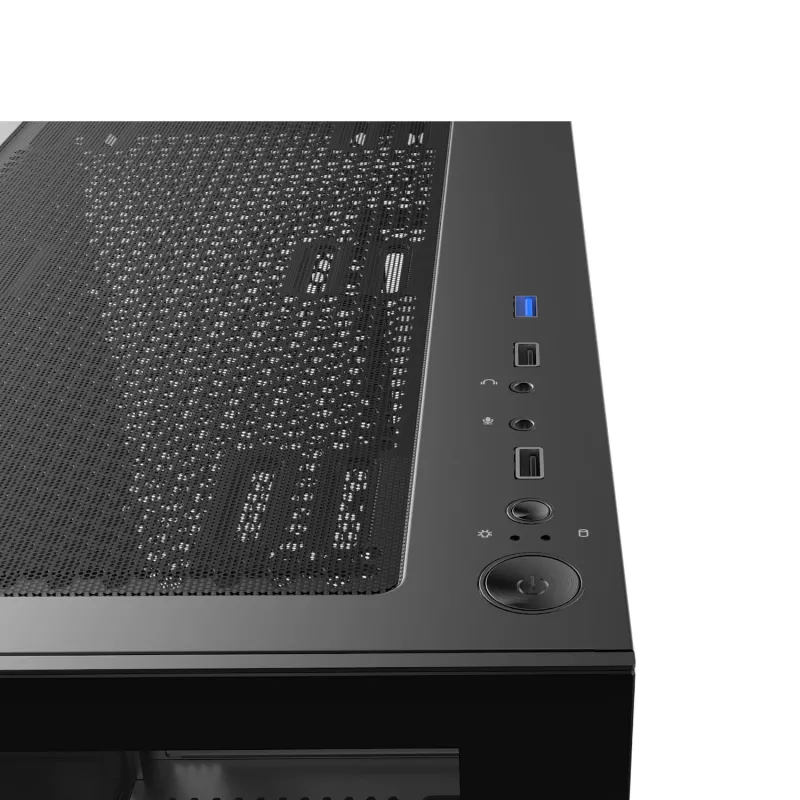

• Modern front I/O: USB 3.2 Gen 2 Type-C for high-speed connectivity.
• Tool-less drive bays: Easy installation for SSDs and HDDs.

Technical details

• Case form factor: Micro-ATX Tower
• Motherboard support: Micro-ATX, Mini-ITX
• Expansion slots: 4
• Maximum GPU length: 390 mm
• Maximum CPU cooler height: 175 mm
• Power supply support: ATX, max 200 mm length
• Drive bays: 2x 2.5" SSD, 1x 3.5" HDD
• Pre-installed fans: 3x 120mm ARGB front, 1x 120mm ARGB rear
• Fan support: Front 3x120/2x140mm, Top 3x120/2x140mm, Rear 1x120mm
• Radiator support: Front/Top up to 360mm, Rear 120mm
• Side panel: Tempered glass (panoramic)
• Materials: Steel, tempered glass
• RGB lighting: ARGB, Mystic Light Sync compatible
• Dust filters: Top, bottom, front

Our verdict

The MSI PAG PANO M110A is a feature-rich Micro-ATX case that doesn't compromise on cooling or aesthetics. With its panoramic glass, generous hardware clearance, and included ARGB fans, it's an excellent foundation for a compact yet powerful gaming build.
