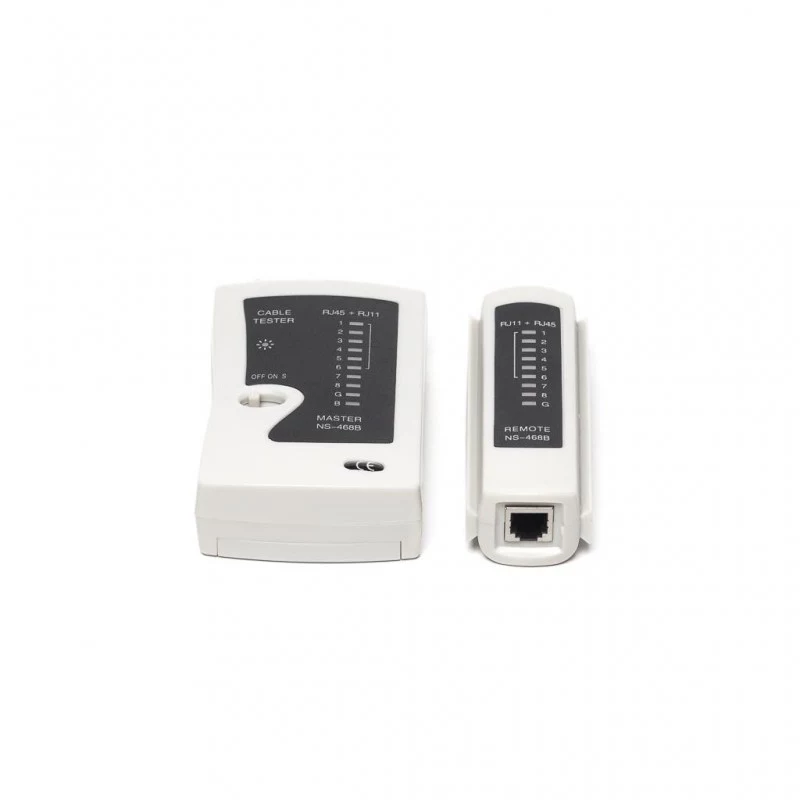

NETRACK 103-02 netwerkkabeltester voor RJ45 en RJ11

The NETRACK 103-02 is a professional network cable tester designed for quick and accurate testing of RJ45 (UTP/FTP/STP) and RJ11 cables. It verifies continuity, open circuits, short circuits, crossed pairs, and straight-through wiring, making it an essential tool for network installers and technicians.

Advantages

Easy-to-use automatic scanning mode with clear LED indicators for each wire (1-8 and ground). Compact and durable ABS plastic housing ensures long-lasting performance. Powered by a standard 9V battery (not included), the tester includes both a main unit and a remote unit for end-to-end testing.

Suitable for

• Network technicians and installers
• IT professionals troubleshooting cabling
• Home users verifying Ethernet connections

Key specifications

• Supported cable types: RJ45 (UTP/FTP/STP), RJ11
• Test functions: Continuity, open circuit, short circuit, crossed pairs, straight-through
• Indicator type: 9 LEDs (8 for wires, 1 for ground)
• Power source: 1x 9V DC battery (PP3 type, not included)
• Components: Main tester unit, remote unit
• Test mode: Automatic scan
• Max cable length: Up to 300 meters
• Housing material: ABS plastic
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Connectors: RJ45, RJ11
• Safety compliance: CE, RoHS

Recommendations

For best results, use with a fresh 9V battery. Suitable for both professional and home use.
