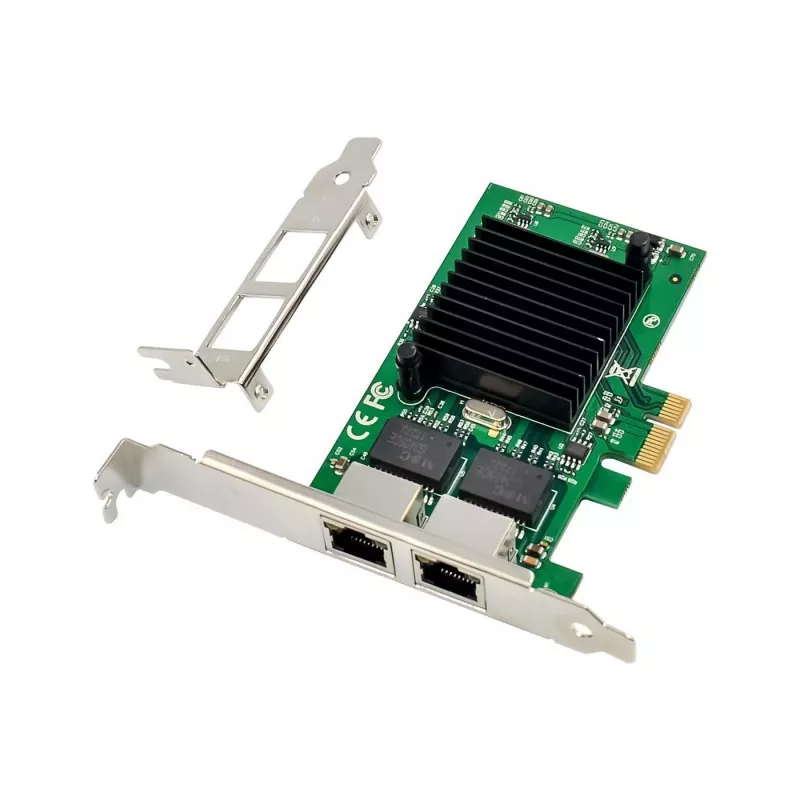

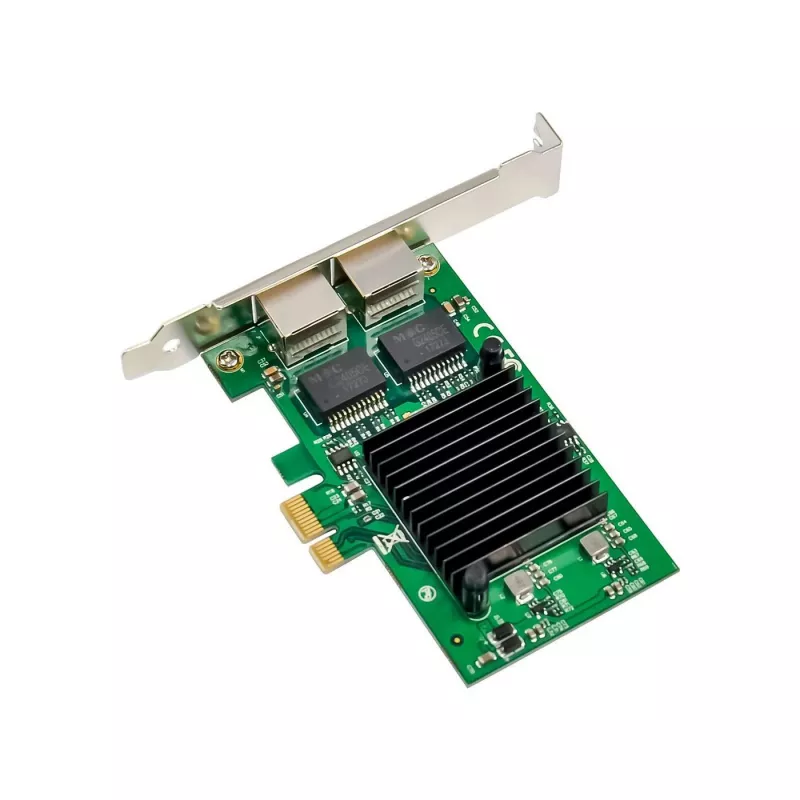

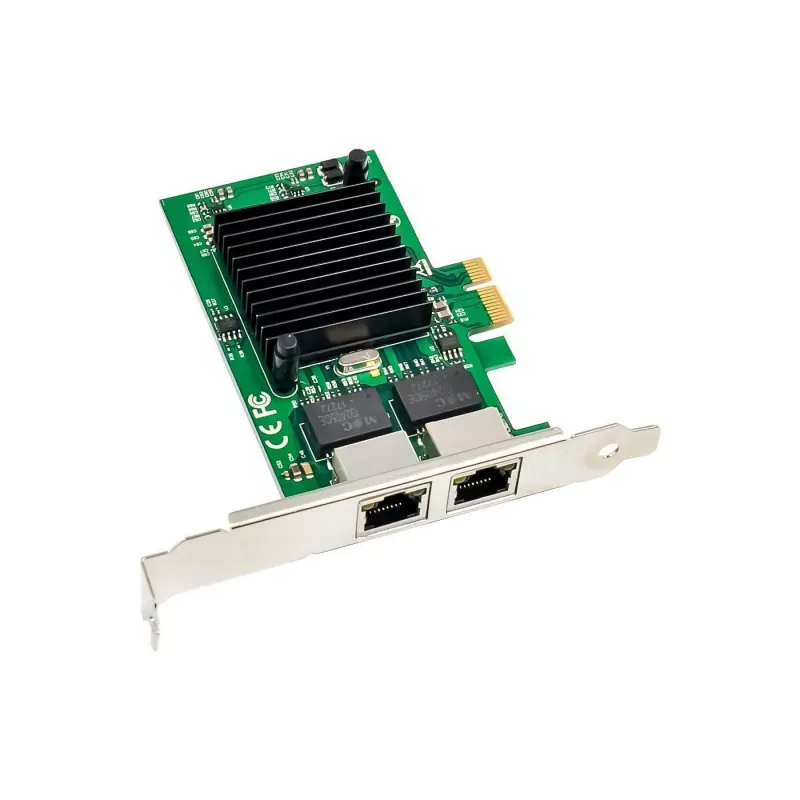

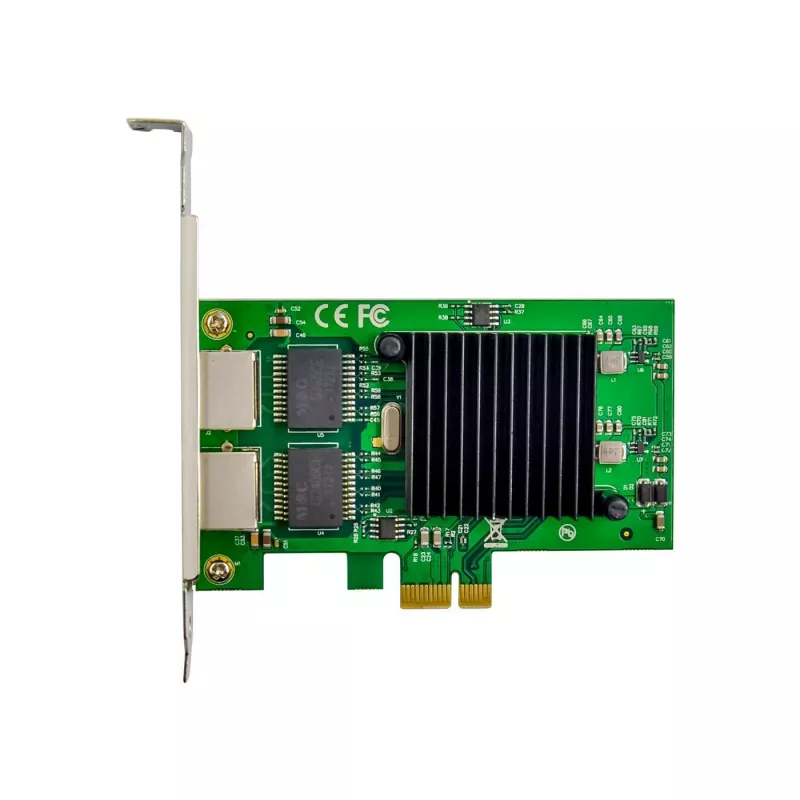

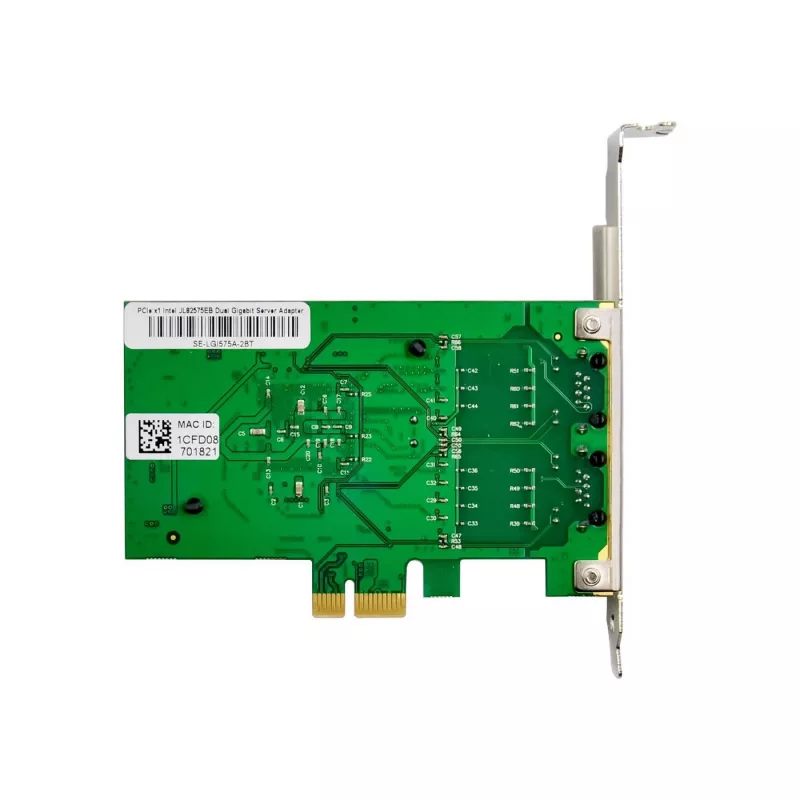

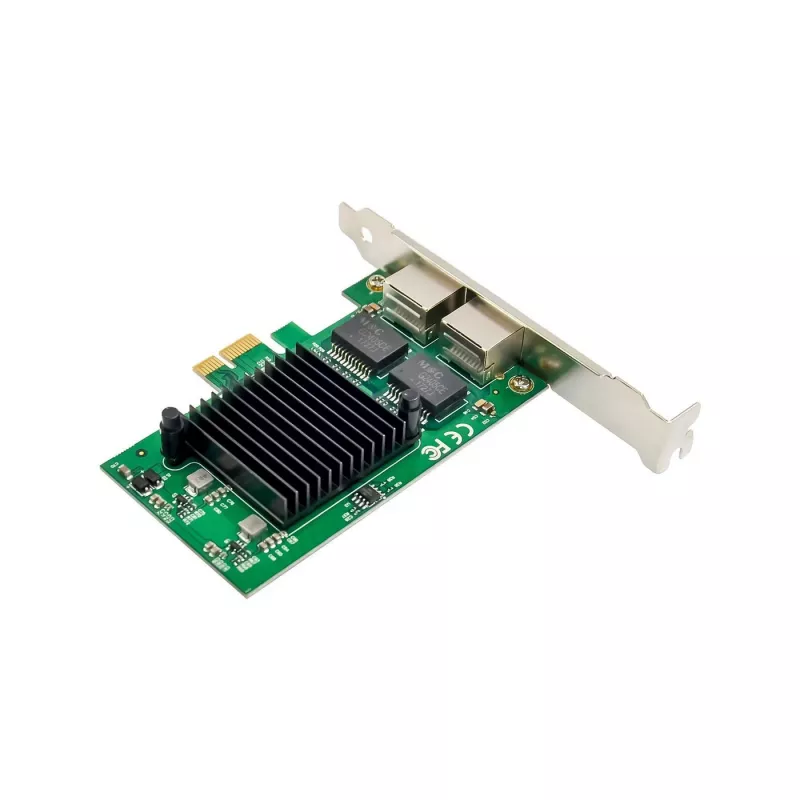

Netwerkkaart MicroConnect MC-PCIEX1-82575 PCIe x1 Intel 82575 Ethernet-adapter

MicroConnect MC-PCIEX1-82575 is a PCIe x1 network card equipped with an Intel 82575 controller that provides a wired Gigabit Ethernet interface for desktop or server systems. The adapter is designed to fit into a PCI Express x1 slot and offers a proven Intel chipset known for stable performance and broad operating system support, allowing users to add or replace onboard LAN functionality for reliable wired network connectivity.

Advantages

The Intel 82575 controller delivers stable Gigabit Ethernet performance and hardware-level support for common network features. Installation into a PCIe x1 slot keeps the card compact while providing full wired throughput. Broad compatibility with mainstream operating systems helps reduce driver and interoperability issues and makes the card suitable for upgrading older systems or adding a dedicated network interface to servers and workstations.

Suitable for

• Adding or replacing wired LAN on desktop PCs
• Providing a dedicated network interface for small servers or workstations
• Upgrading systems without built-in Gigabit Ethernet or with faulty onboard LAN
• Environments where stable, low-latency wired connections are required

Key specifications

• Interface: PCI Express x1
• Controller: Intel 82575 chipset
• Network speed: 10/100/1000 Mbps (Gigabit Ethernet)
• Form factor: Low-profile compatible bracket (desktop/server add-in card)
• Connector: RJ-45 Ethernet port

How to use

Power down the computer and disconnect it from mains. Open the case and locate an available PCIe x1 slot on the motherboard. Remove the corresponding slot cover, insert the Network Card MicroConnect MC-PCIEX1-82575 firmly into the PCIe x1 slot until it is fully seated, then secure the card with the mounting screw. Close the case, reconnect power and network cable to the RJ-45 port. Start the system and install the appropriate drivers for the Intel 82575 controller supplied by the operating system or from the manufacturer's driver package to enable full functionality.

Recommendations

Use a Cat5e or higher Ethernet cable for Gigabit speeds and ensure your switch or router supports Gigabit Ethernet. Keep system BIOS and motherboard chipset drivers up to date to maximize compatibility. For server environments, verify driver support for your OS and consider using a low-profile bracket if installing in compact cases.
