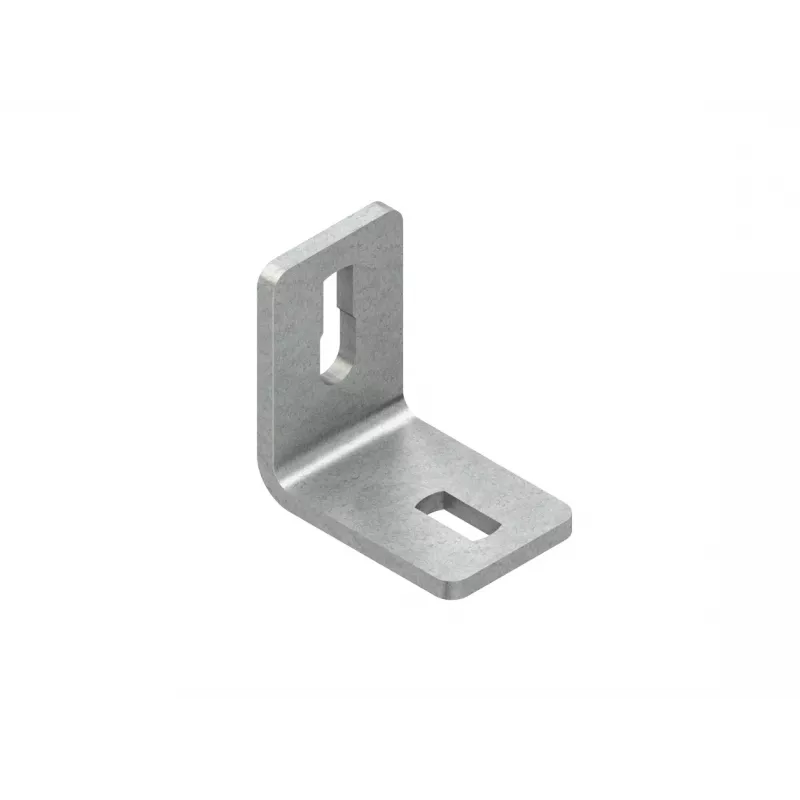

Niedax WWU150/8 wandaansluithoek, gelijkbenig, thermisch verzinkt, 150 mm beenlengte, 8 mm dikte

Mounting cable trays and ladders securely to walls demands a bracket that can handle heavy loads and harsh environments. The Niedax WWU150/8 Wall Connection Bracket delivers exactly that, with its equal-sided 150 mm legs and robust 8 mm steel construction. Hot-dip galvanized to DIN EN ISO 1461, it provides superior corrosion protection for industrial and electrical installations, ensuring long-term reliability even in demanding conditions.

Who is it for

This bracket is engineered for electrical contractors, industrial maintenance teams, and system integrators who need a dependable wall-mounting solution for cable management systems. It is ideal for projects in factories, warehouses, power plants, and outdoor installations where corrosion resistance is critical.

Main features

• Equal-sided angle design with 150 mm legs for stable support
• 8 mm thick steel construction for high load capacity
• Hot-dip galvanized finish per DIN EN ISO 1461 for excellent corrosion resistance
• Two slotted wall mounting holes (11 x 20 mm) for easy alignment
• Two slotted tray connection holes (9 x 20 mm) for flexible positioning
• 90-degree angle ensures proper tray alignment
• Compatible with a wide range of cable trays and ladders

Specifications

• Brand: Niedax
• Model: WWU150/8
• MPN: WWU150/8
• EAN: 4013339194506
• Product type: Wall connection bracket
• Material: Steel
• Surface finish: Hot-dip galvanized
• Galvanization standard: DIN EN ISO 1461
• Leg length: 150 mm
• Material thickness: 8 mm
• Angle: 90 degrees
• Number of wall mounting holes: 2
• Wall mounting hole dimensions: 11 x 20 mm (slot)
• Number of tray connection holes: 2
• Tray connection hole dimensions: 9 x 20 mm (slot)
• Corrosion protection: High
• Application area: Electrical installation, industrial

Tips

For optimal load distribution, use appropriate wall anchors and ensure the bracket is mounted on a flat, solid surface. The slotted holes allow for fine adjustment during installation, making it easier to align multiple brackets for a level cable tray run.
