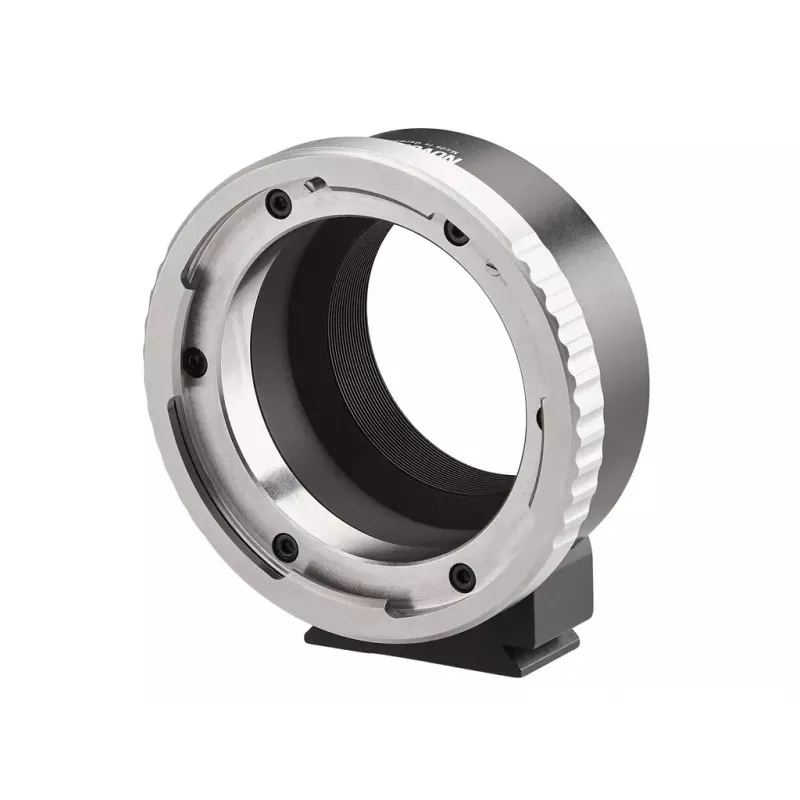

Novoflex LET/PL objectiefadapter

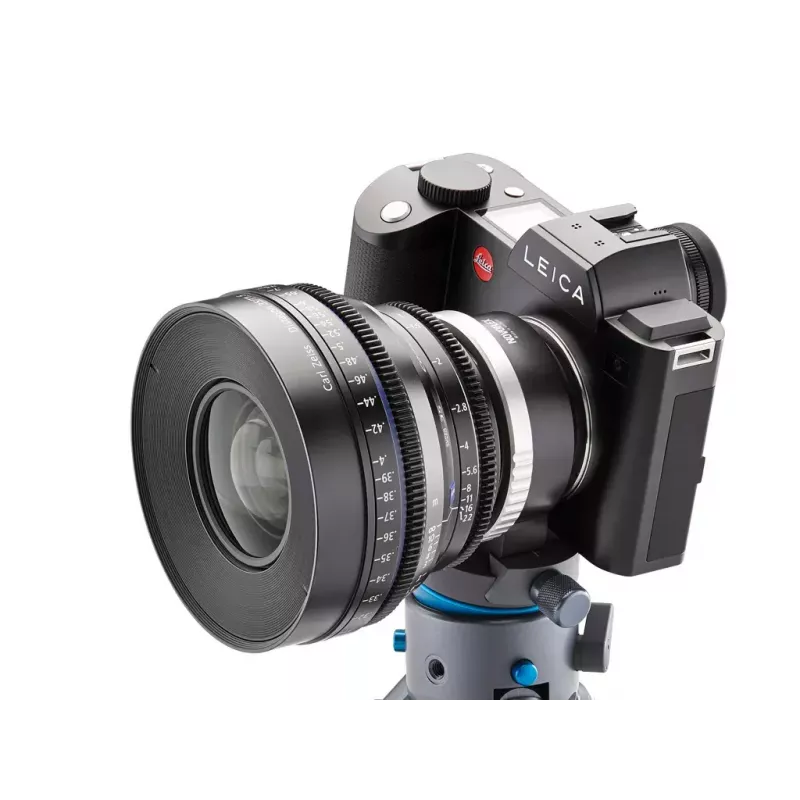

The Novoflex LET/PL lens adapter enables mounting L-mount lenses on PL-mount cameras by precisely compensating the flange focal distance difference between the two mounts. The adapter is supplied with a set of shim rings to fine-tune thickness for accurate infinity focus, and it provides a stable mechanical connection without electronic communication between lens and camera. A tripod foot with an ARCA-compatible dovetail and 1/4" and 3/8" threads is integrated for secure support during shooting.

Advantages

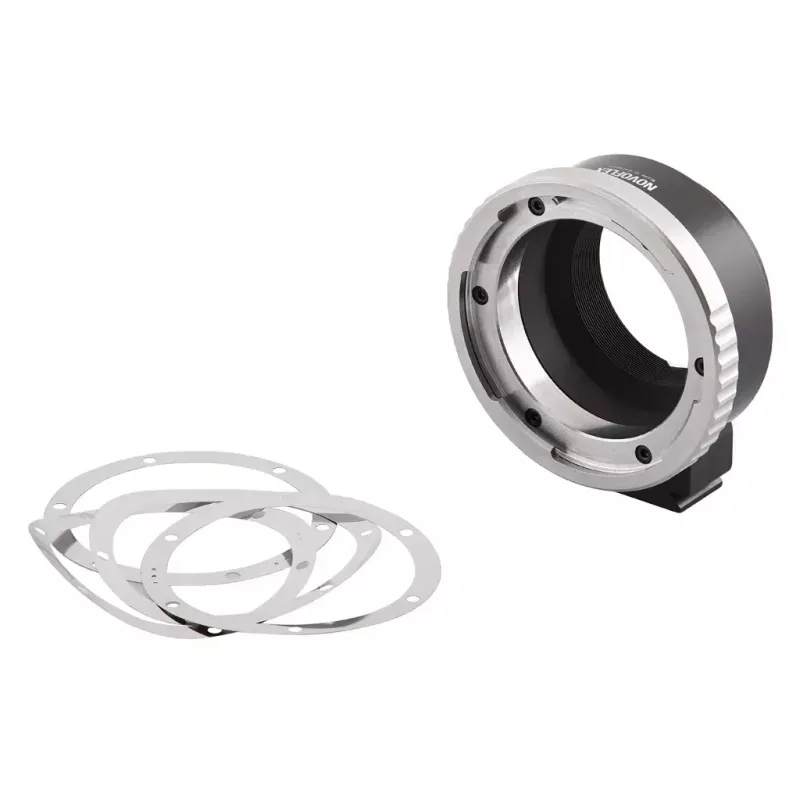

The adapter offers exact compensation of flange focal length differences to allow connected lenses to be focused manually up to infinity. It includes multiple precision shim rings (0.1 mm preinstalled; additional rings: 1×0.01 mm, 2×0.02 mm, 1×0.05 mm) so the thickness can be adjusted precisely for various cameras and cinema lenses. There is no electronic data transmission, ensuring a mechanically simple and reliable interface. The built-in tripod foot with ARCA-compatible dovetail and dual thread options adds mounting flexibility for video and still setups.

Suitable for

• Filmmakers using PL-mount cameras who want to use L-mount lenses
• Photographers or videographers expanding lens options between L and PL systems
• Studio and location shoots requiring stable tripod or support mounting

Key specifications

• Brand: Novoflex
• Model / MPN: LET/PL
• EAN: 4030432744353
• Function: mounts L-mount lenses to PL-mount cameras
• Shim rings supplied: 0.1 mm (installed), 1×0.01 mm, 2×0.02 mm, 1×0.05 mm
• Focus: manual focus to infinity
• Electronic communication: none (mechanical only)
• Tripod foot: ARCA-compatible dovetail with 1/4" and 3/8" threads

How to use

Mount the adapter onto the PL-mount camera and attach the L-mount lens to the adapter. Check infinity focus and, if required, adjust adapter thickness using the supplied shim rings: remove the preinstalled 0.1 mm ring and replace or combine rings to achieve the precise spacing needed for accurate focus. Focus the lens manually and use camera exposure metering in aperture-priority or manual modes, as electronic lens data is not transmitted.

Recommendations

The adapter is intended for users comfortable with manual focusing and mechanical lens mounting. For critical focus and alignment, adjust shim rings carefully and verify infinity focus on the camera. Use the tripod foot when mounting heavier lenses to reduce strain on the camera mount.
