OBO Bettermann Telitank T4B aftakdoos 118x118x97 mm IP65 grafiet zwart 7408292

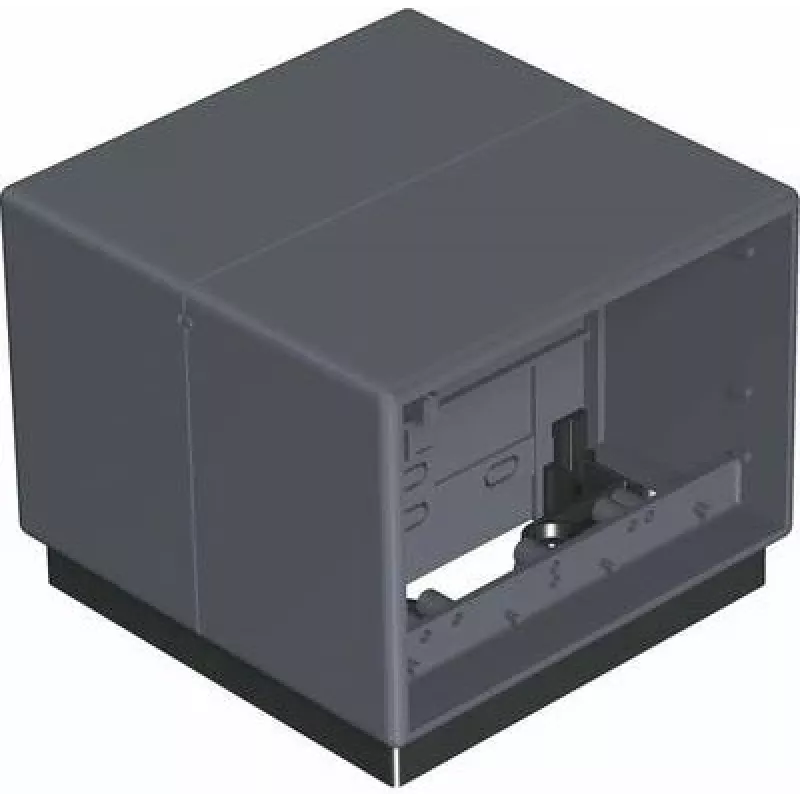

With an IP65 protection rating and impact resistance of IK07, this OBO Bettermann Telitank T4B junction box is built to withstand demanding environments while keeping connections safe from dust, water jets, and mechanical stress.

Overview

The Telitank T4B series from OBO Bettermann offers a robust thermoplastic enclosure designed for surface mounting in electrical installations. Measuring 118 x 118 x 97 mm, it provides ample space for wiring while maintaining a compact footprint. The graphite black (RAL 9011) finish ensures a professional appearance that blends seamlessly into industrial and commercial settings.

What stands out

• High protection: IP65 rated against dust and water jets, suitable for harsh conditions.
• Durable construction: Halogen-free, UV-resistant thermoplastic with IK07 impact resistance.
• Flexible cable entry: 8 pre-stamped metric knock-outs (M20/M25) for easy adaptation.
• Wide temperature range: Operates from -25 °C to +40 °C, ideal for varied climates.
• Safety certified: Glow wire tested at 750 °C for fire resistance.

Technical details

• Product type: Junction Box / Distribution Box
• Series: Telitank T4B
• Material: Thermoplastic
• Colour: Graphite Black (RAL 9011)
• External dimensions (L x W x H): 118 x 118 x 97 mm
• Rated insulation voltage: 690 V
• Max. rated conductor cross-section: 4 mm²
• Number of cable entries: 8
• Cable entry type: Pre-stamped metric knock-outs (M20/M25)
• Lid fastening: Screw lid
• Mounting type: Surface mounted
• Halogen-free: Yes
• UV-resistant: Yes
• Operating temperature range: -25 °C to +40 °C
• Glow wire test temperature: 750 °C
• Impact resistance: IK07

Our verdict

A reliable and rugged junction box that delivers excellent protection and ease of installation, making it a smart choice for professional electricians and demanding applications.
