Grafische kaart GeForce RTX 5050 8 GB GDDR6

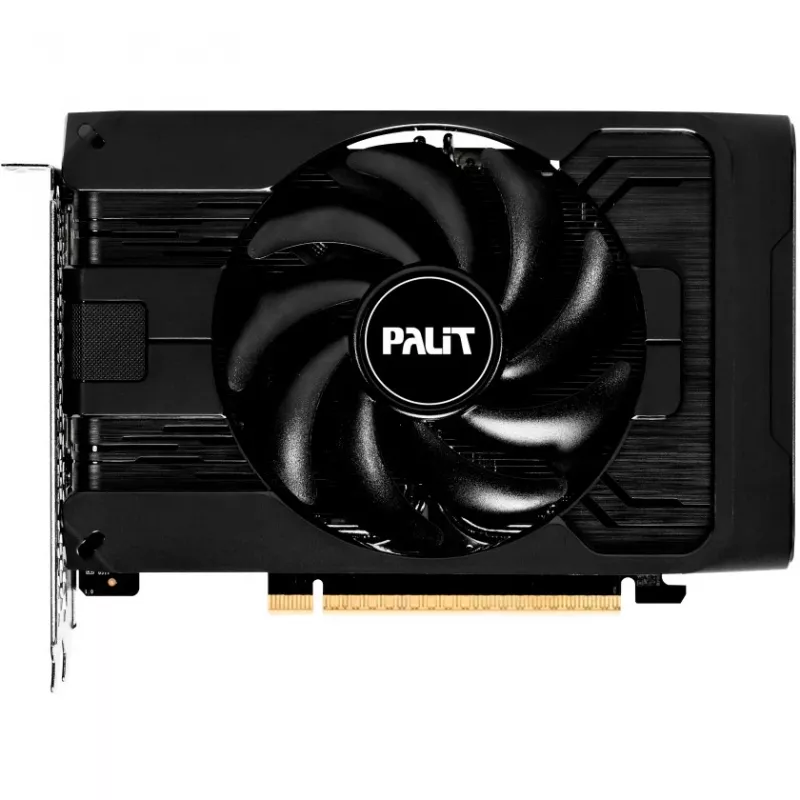

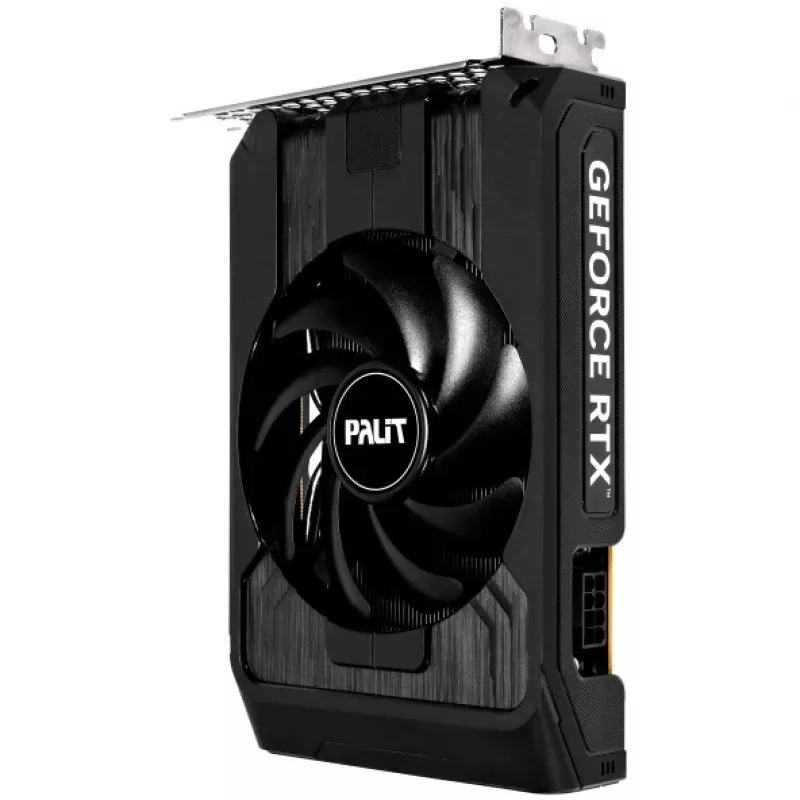

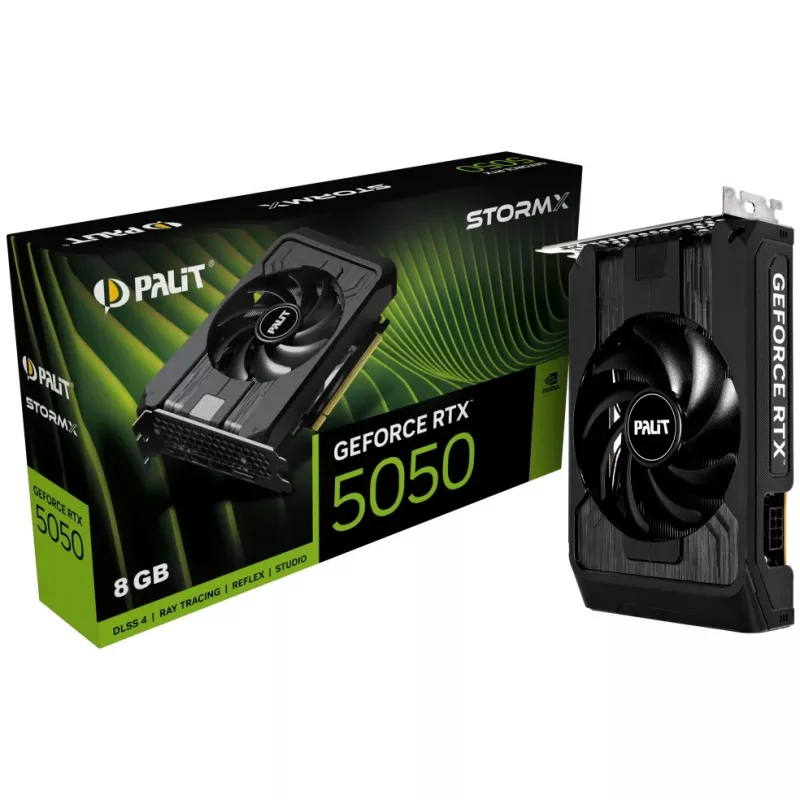

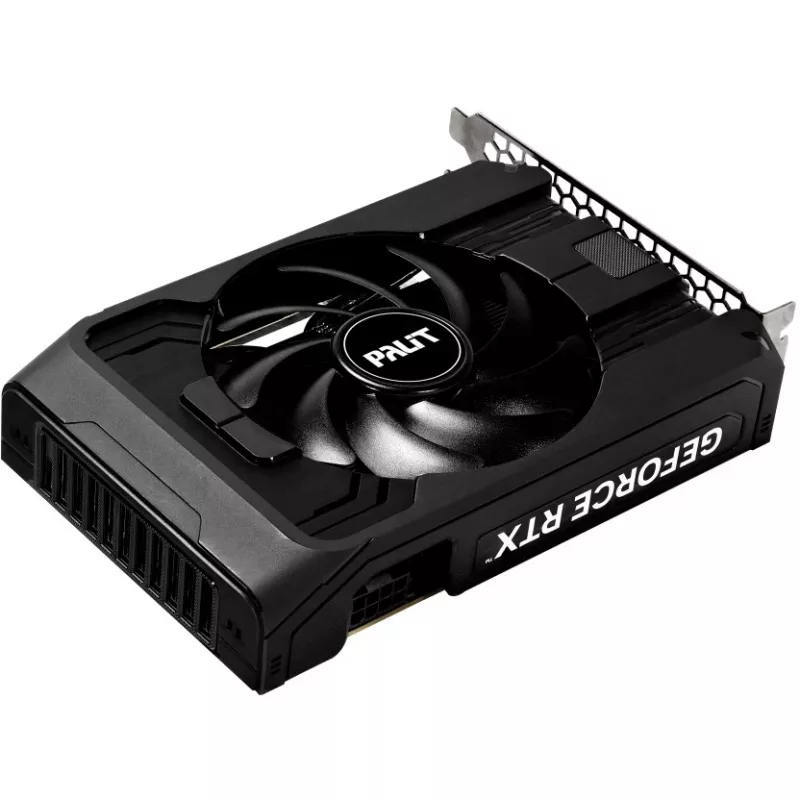

Palit GeForce RTX 5050 StormX is a compact graphics card designed for small form factor PCs, offering the full performance of a standard GPU in a 17 cm housing. Powered by NVIDIA Blackwell architecture and the GeForce RTX 50 Series platform, it brings advanced ray tracing, neural rendering and AI features to gamers and creators while supporting modern display and connectivity standards.

Advantages

The StormX model combines high-performance RTX features such as DLSS 4 Multi Frame Generation, fourth-gen RT Cores and fifth-gen Tensor Cores with a space-saving design suitable for compact builds. It provides improved thermal efficiency via a composite heat pipe and optimized copper powder for up to 32% better heat dissipation, quiet operation with semi-passive fan control, and software control through Palit ThunderMaster for overclocking, fan tuning and LED customization.

Key specifications

• GPU: NVIDIA GeForce RTX 5050 with 8 GB GDDR6
• Memory interface: 128-bit, memory bandwidth 20 Gbit/s
• Maximum resolution: up to 7680 x 4320 pixels
• Interface: PCI Express 5.0

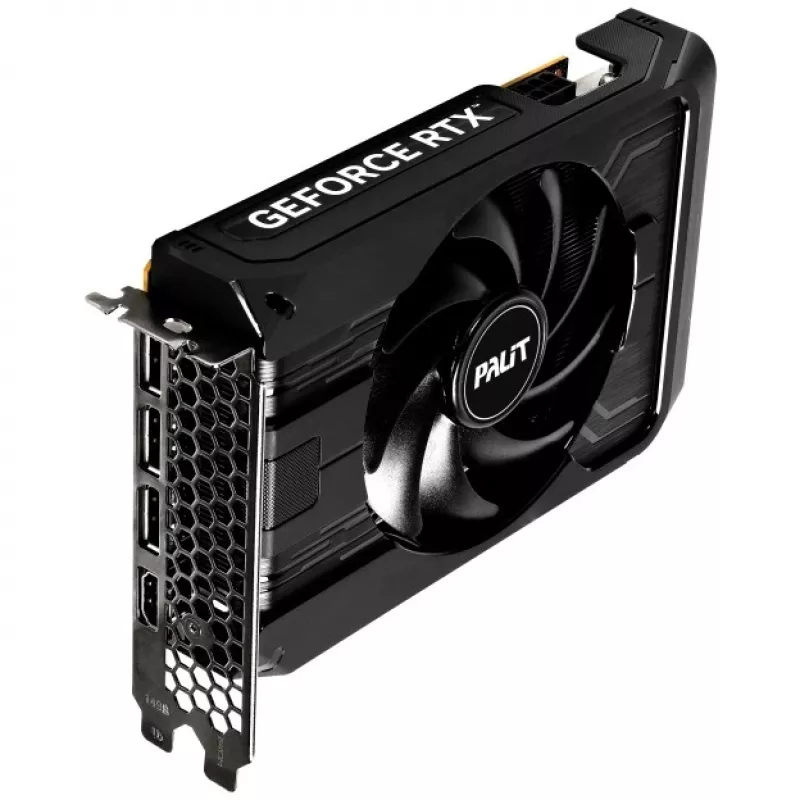

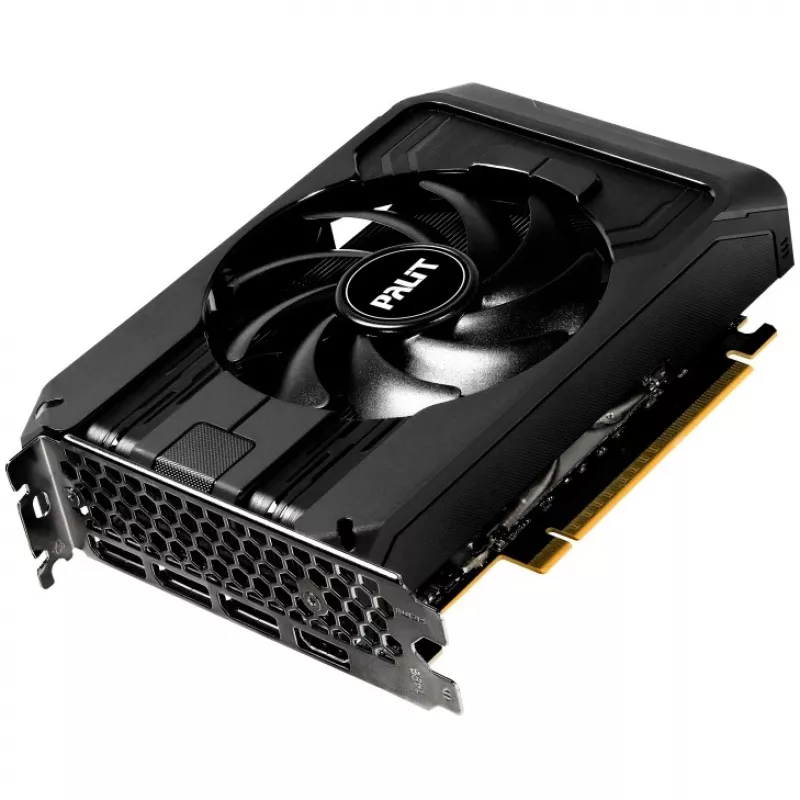

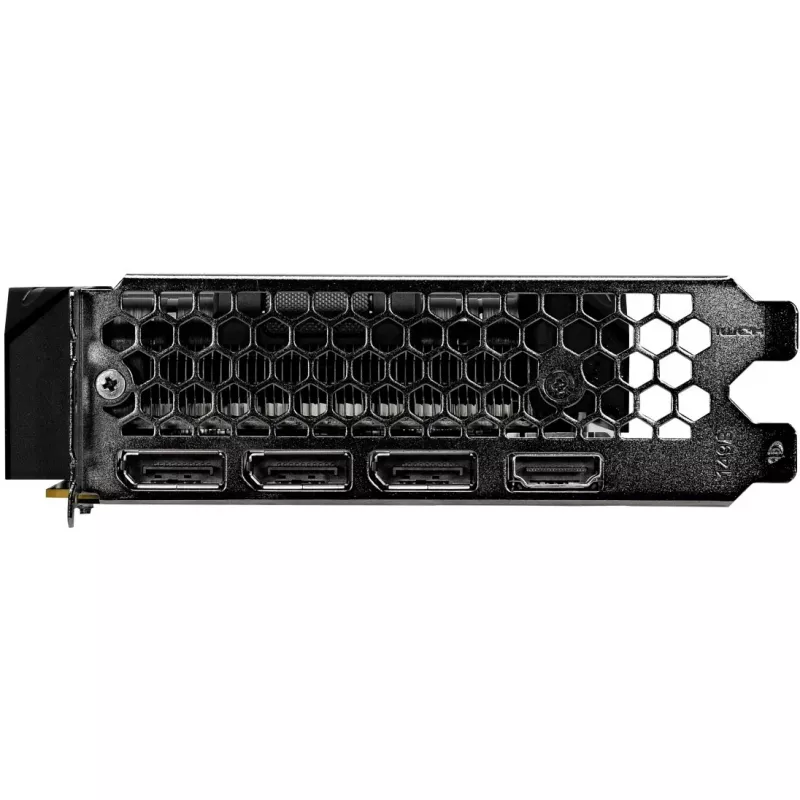

• Video outputs: 1 × HDMI, 3 × DisplayPort

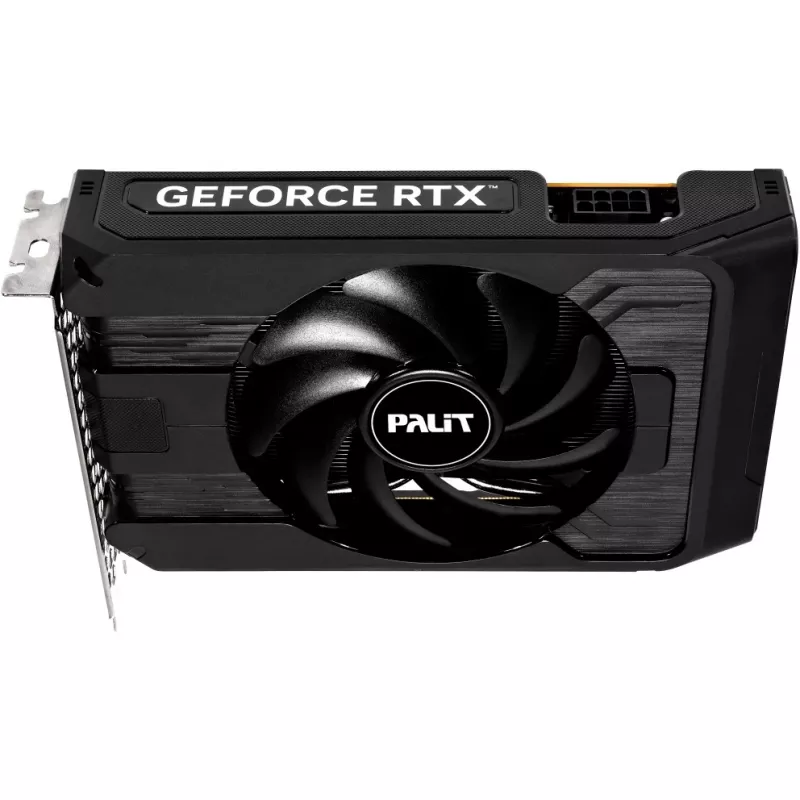

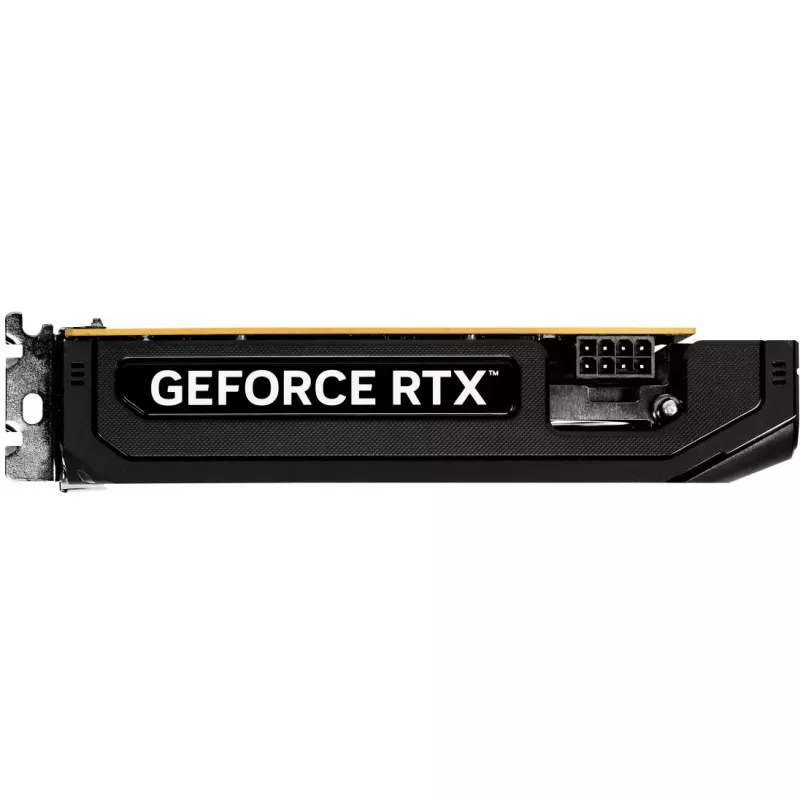

• Power connector: 1 × 8-pin
• API support: DirectX 12 Ultimate, OpenGL 4.6
• Card length: 17 cm (compact form factor)

How to use

Install the Palit GeForce RTX 5050 StormX into a compatible PCIe 5.0 x16 slot in a small form factor case that supports a 17 cm GPU. Connect the 8-pin power cable from your power supply, attach display cables to the HDMI or DisplayPort outputs, and install the latest NVIDIA drivers or Palit ThunderMaster software. Use ThunderMaster to monitor temperatures, adjust fan curves, set overclocking profiles and customize LED effects. The fans remain off during light workloads and engage automatically when the GPU reaches approximately 60°C or TGP exceeds about 150 W; they stop again when temperatures and power draw fall below specified thresholds.

Recommendations

For reliable operation, ensure your power supply provides adequate wattage and an available 8-pin connector. Allow sufficient airflow within compact cases and keep drivers up to date via the NVIDIA App. For creators and gamers who need low latency and high responsiveness, enable NVIDIA Reflex and DLSS features where supported.
