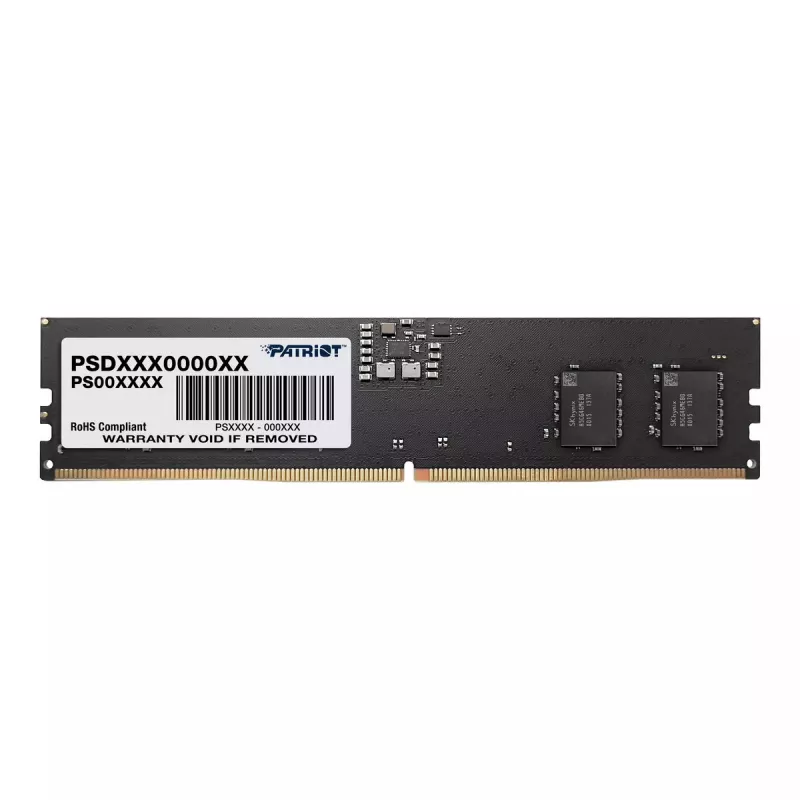

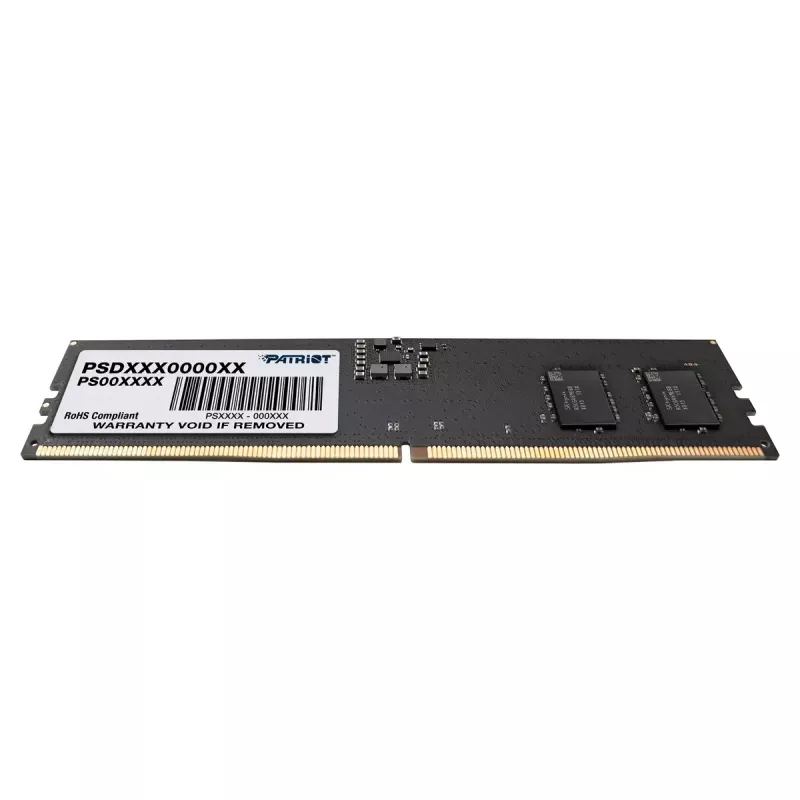

Memory Signature PSD516G520081, 16 GB, 1 x 16 GB, DDR5, 5200 MHz, 288-pins DIMM

The Patriot Memory Signature 16 GB DDR5 5200 MHz module is a single 288-pin DIMM designed for next-generation Intel platforms. Operating at 5200 MHz with CAS latency 42 and requiring 1.1 V, this 16 GB DDR5 memory module offers higher bandwidth while maintaining lower power consumption and reduced heat generation. Onboard features include a Power Management IC (PMIC) for local voltage regulation and onboard thermal sensors to monitor operating temperature. The module also supports on-die ECC to improve data accuracy and system stability for everyday computing, gaming, and multitasking.

Advantages

The module delivers increased performance for modern systems while consuming less power thanks to its 1.1 V operating voltage. Integrated PMIC provides improved voltage control and protection, and on-die ECC enhances data integrity. Built-in thermal sensors enable real-time temperature monitoring for better system reporting and protection.

Suitable for

• Desktop PC upgrades to improve multitasking and application responsiveness
• Gaming systems requiring higher memory bandwidth
• Content creation and productivity workloads that benefit from larger single-module capacity

Key specifications

• Capacity: 16 GB
• Memory type: DDR5
• Clock speed: 5200 MHz
• CAS latency: 42
• Form factor: 288-pin DIMM
• Operating voltage: 1.1 V
• Onboard Power Management IC and thermal sensors
• On-die ECC support
• Weight: 0.017 kg

How to use

Power down the PC and disconnect it from the mains. Open the desktop case and locate an empty 288-pin DDR5 DIMM slot on the motherboard. Align the notch on the module with the slot, insert the module firmly until the retention clips snap into place, then close the case and reconnect power. Confirm the module is detected in BIOS/UEFI and that the system recognizes the correct capacity and speed. If necessary, enable any platform-specific memory settings for optimal performance.

Recommendations

For best results, install the module in a compatible DDR5-supported motherboard and pair with matched modules for dual- or multi-channel configurations when higher total capacity or bandwidth is required. Ensure adequate case airflow to maintain safe operating temperatures despite onboard thermal monitoring.
