PC-behuizing Seasonic SYNCRO Q704 midi tower zwart

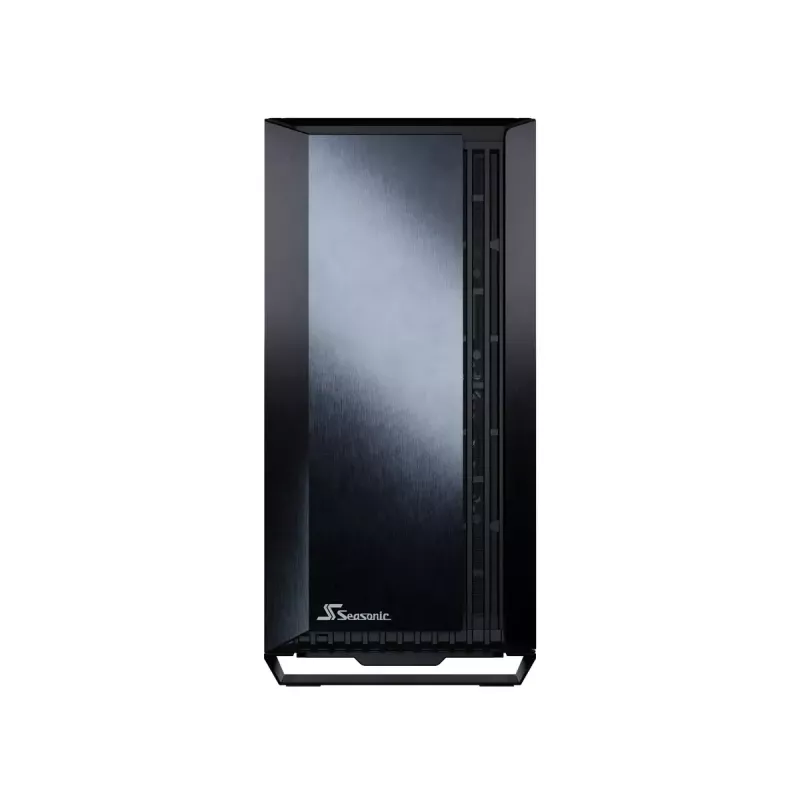

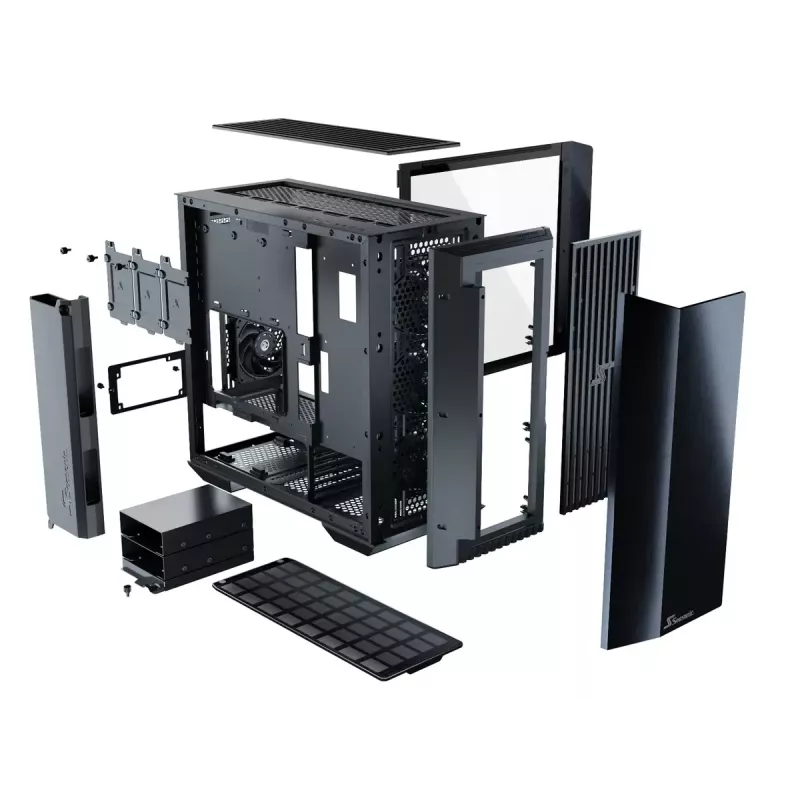

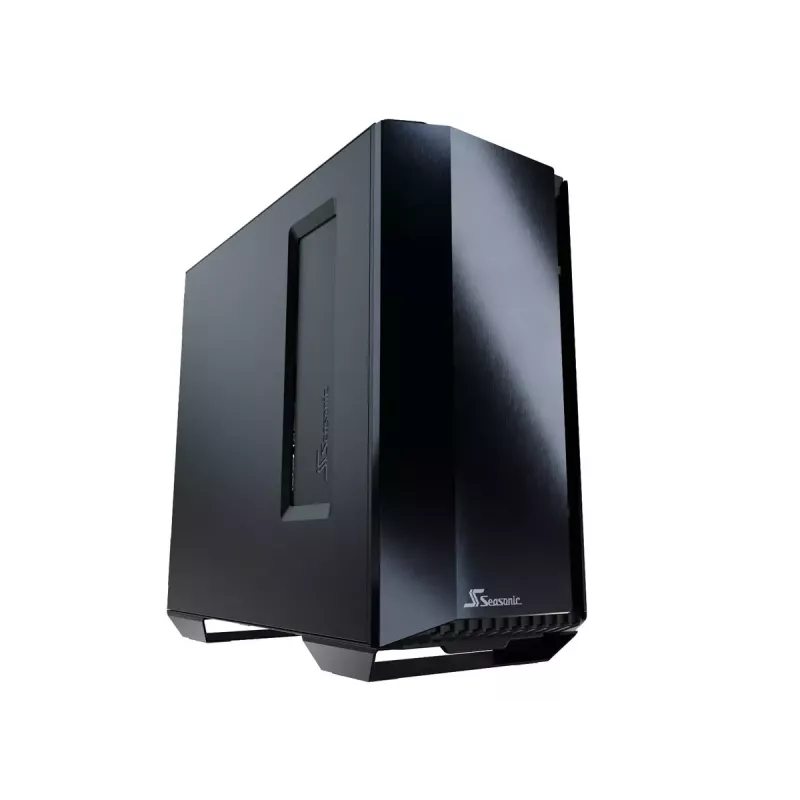

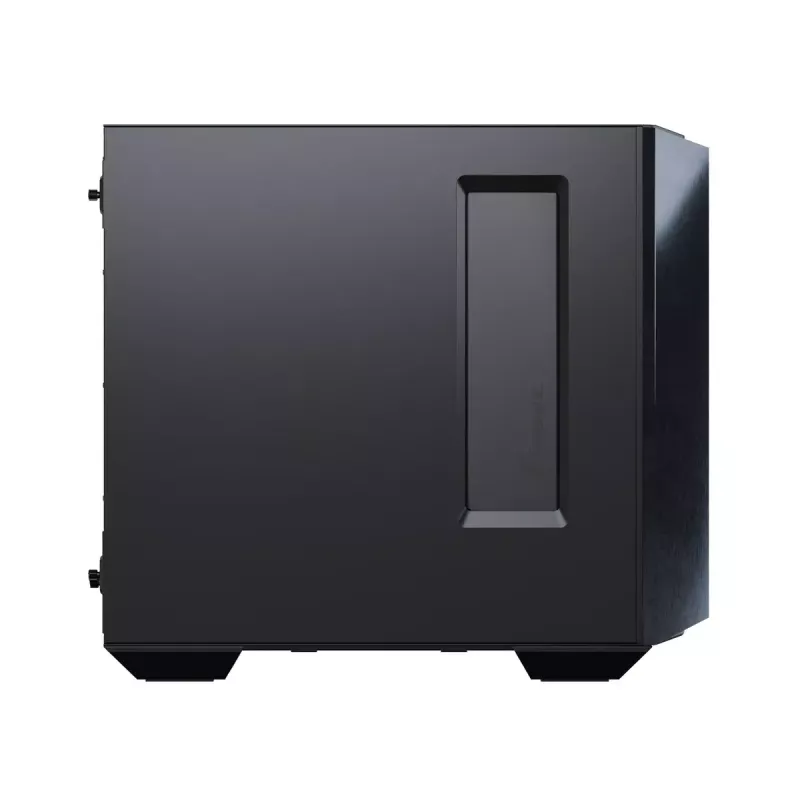

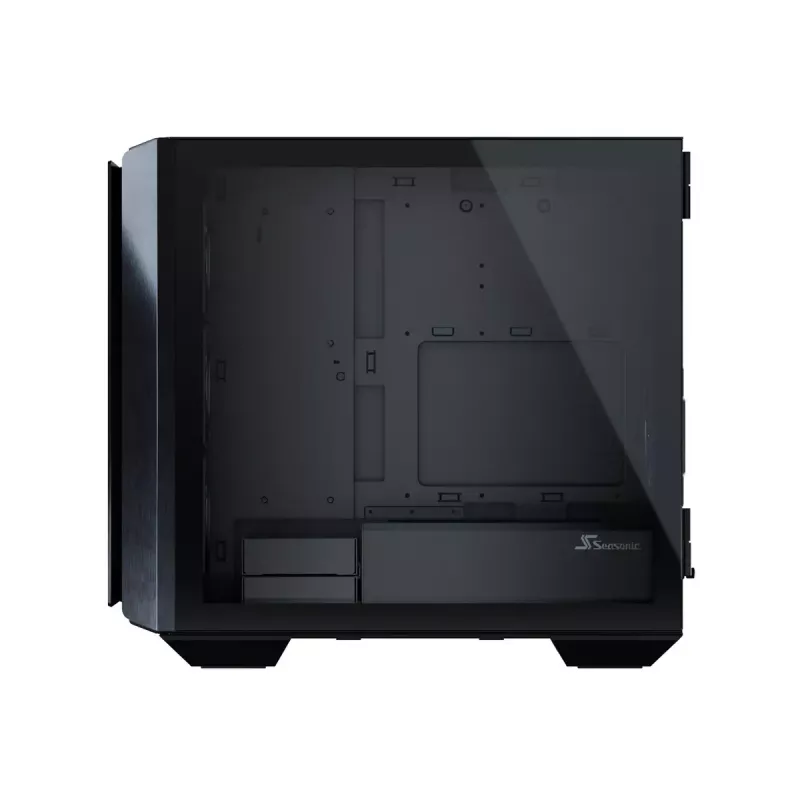

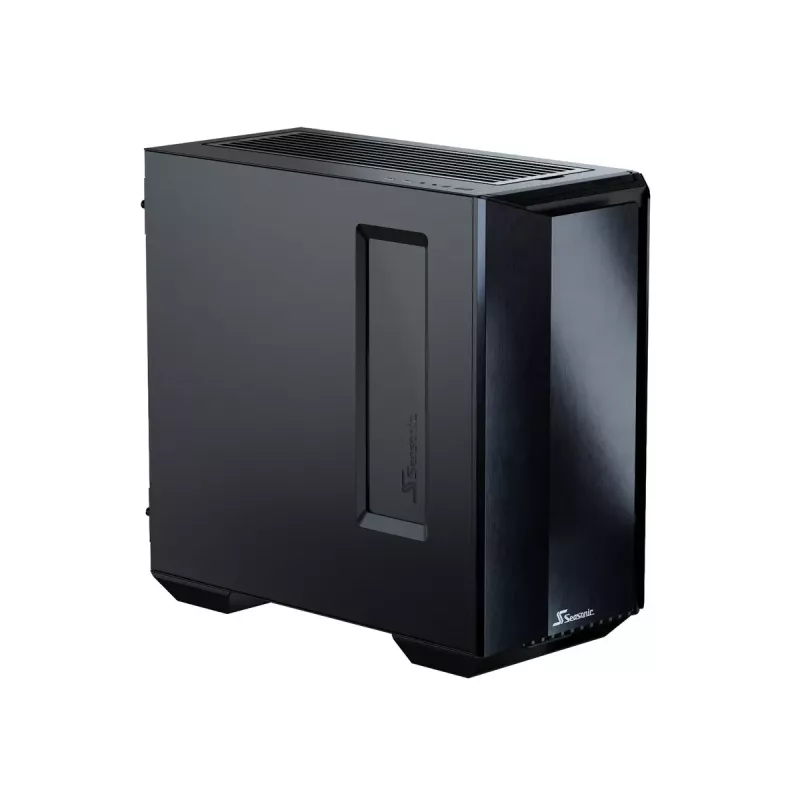

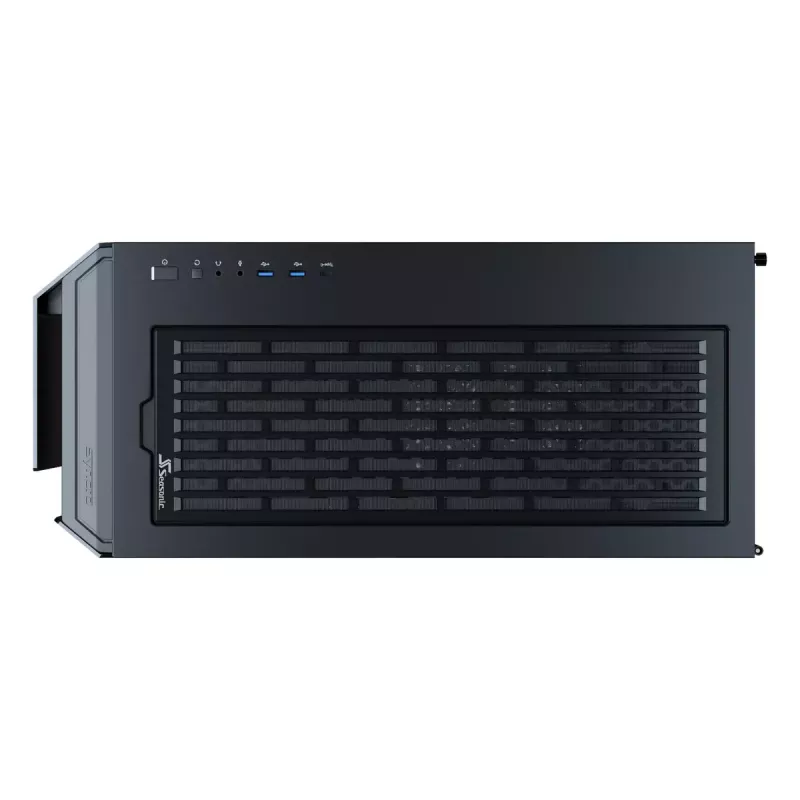

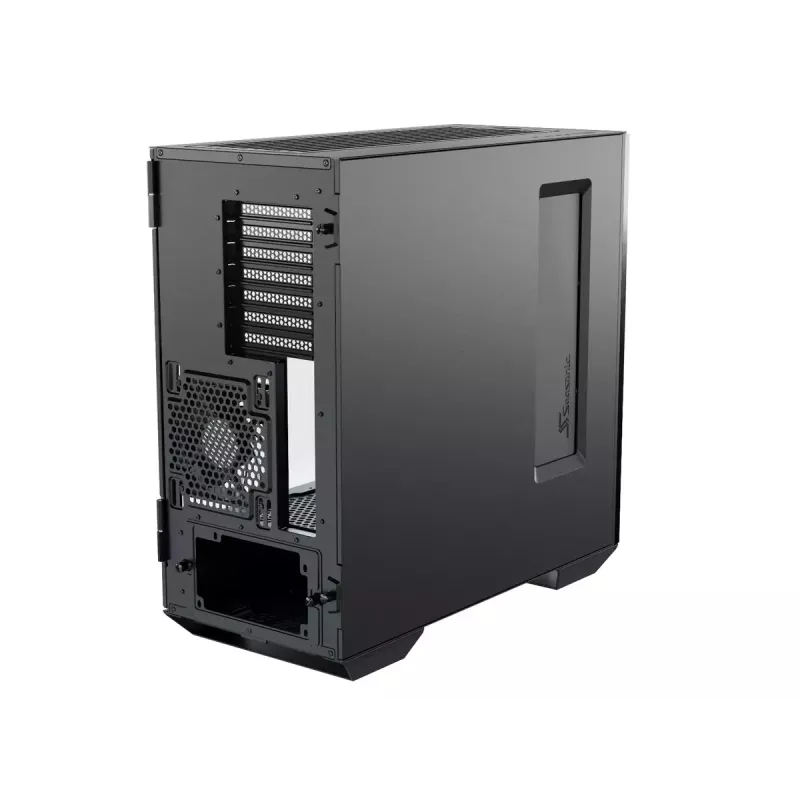

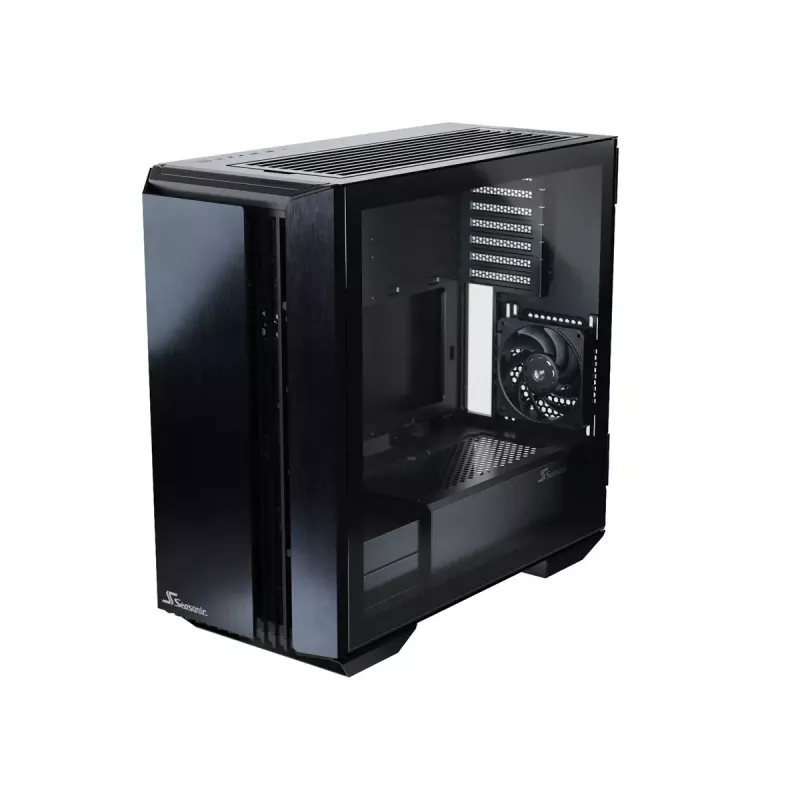

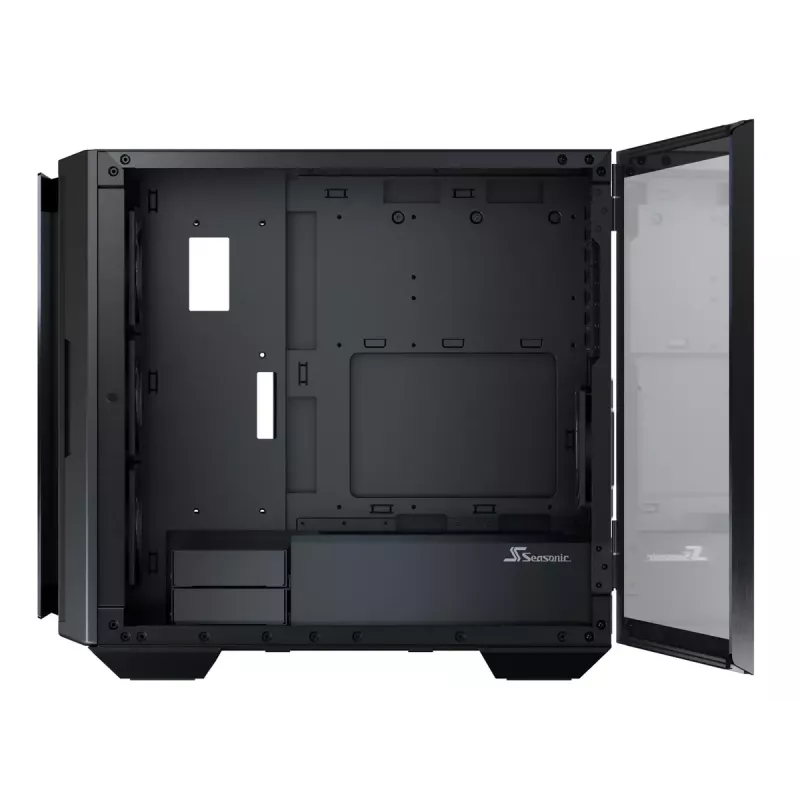

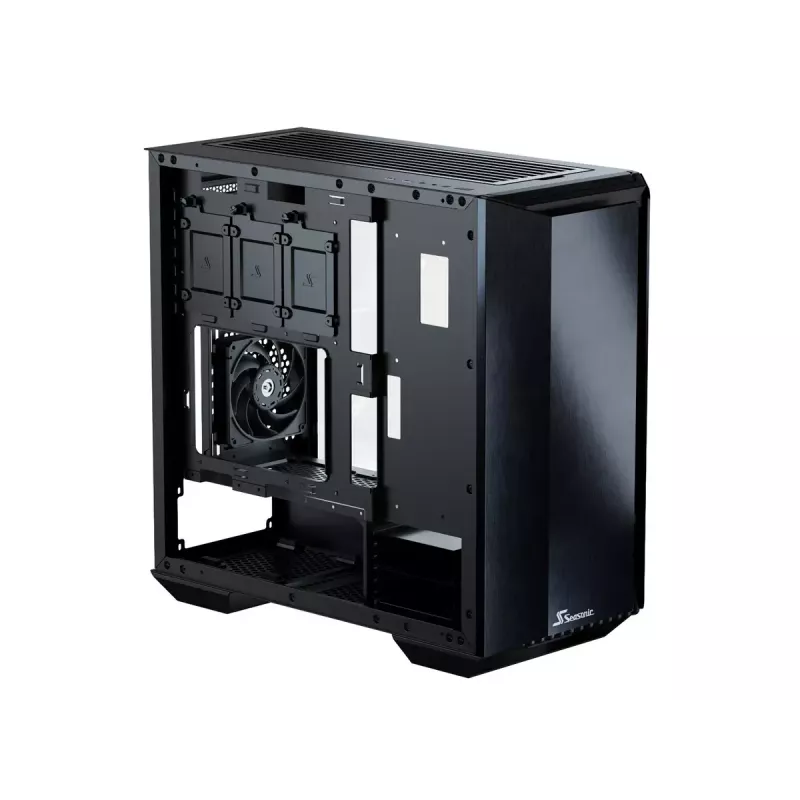

The Seasonic SYNCRO Q7 Series SYNCRO Q704 Midi Tower is a black mid-tower ATX PC case with an aluminium body, tempered glass side panel and the Seasonic SYNCRO CONNECT Module on the opposite side. Designed to house powerful hardware, it supports ATX, Micro ATX and ITX motherboards, includes a 750 W Seasonic SYNCRO power supply, and provides flexible ventilation options with space for multiple 120/140 mm fans and radiator cooling solutions. Magnetic dust filters on the front, top and bottom simplify maintenance while the inverted ATX layout improves airflow by separating GPU rising heat from the CPU.

Advantages

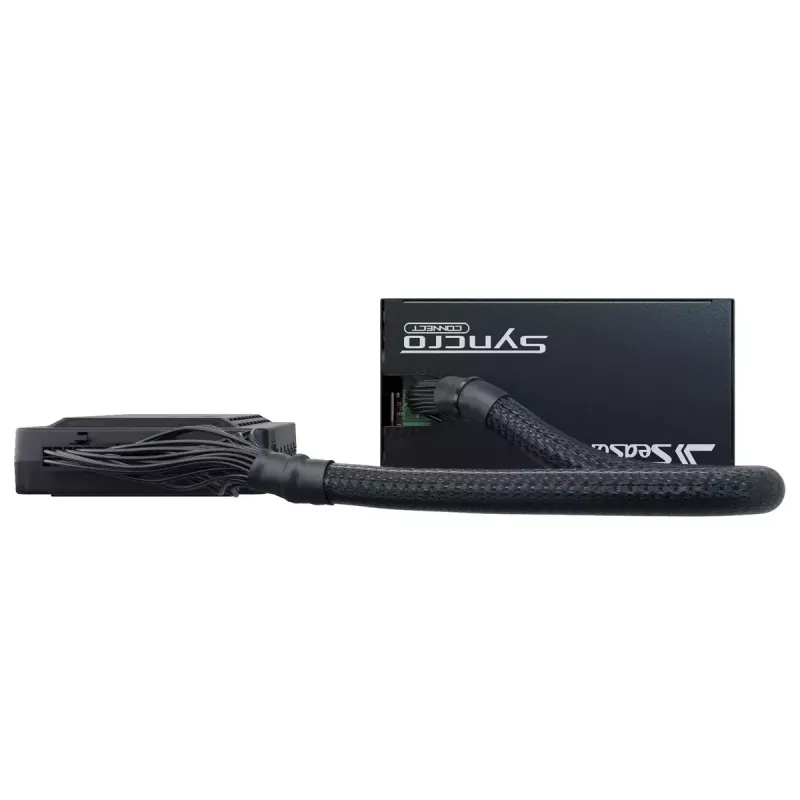

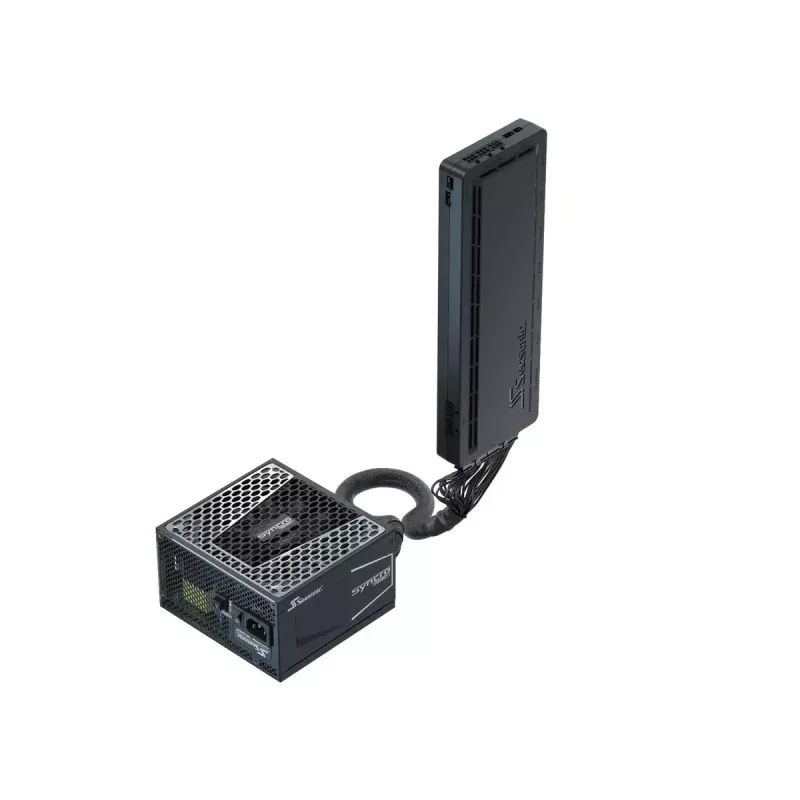

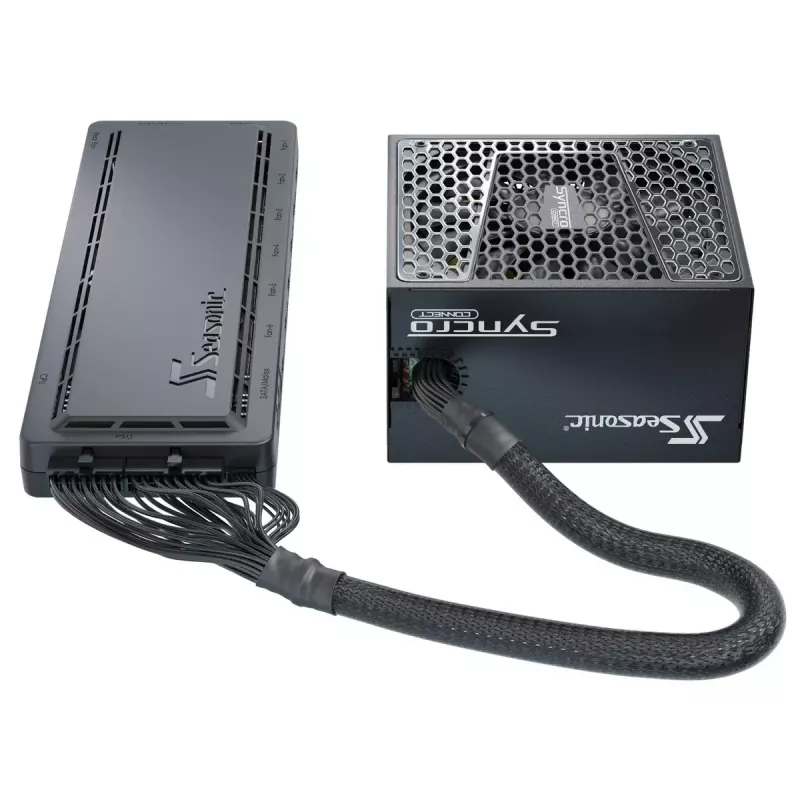

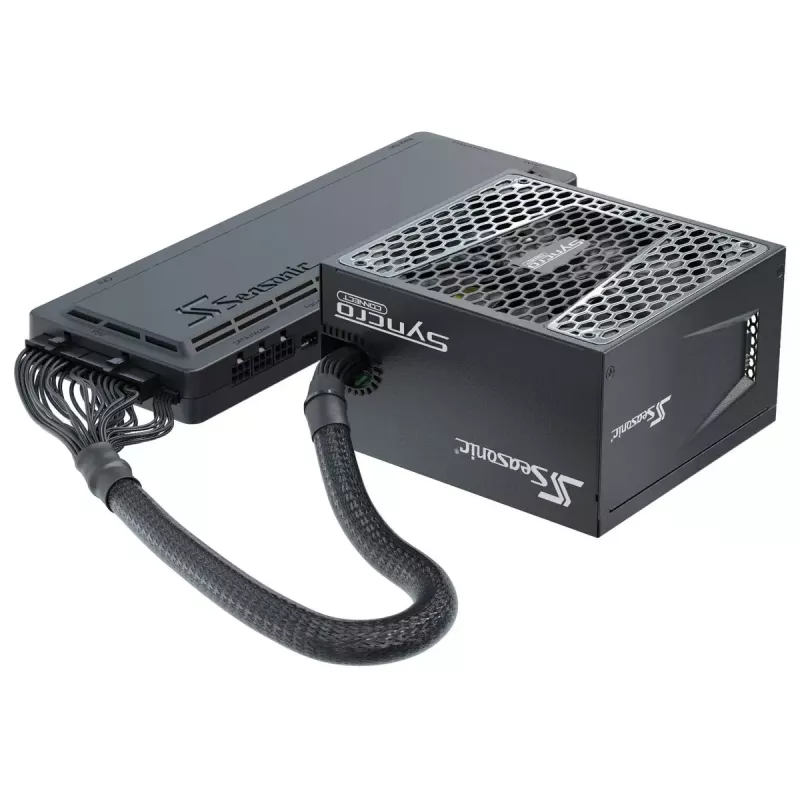

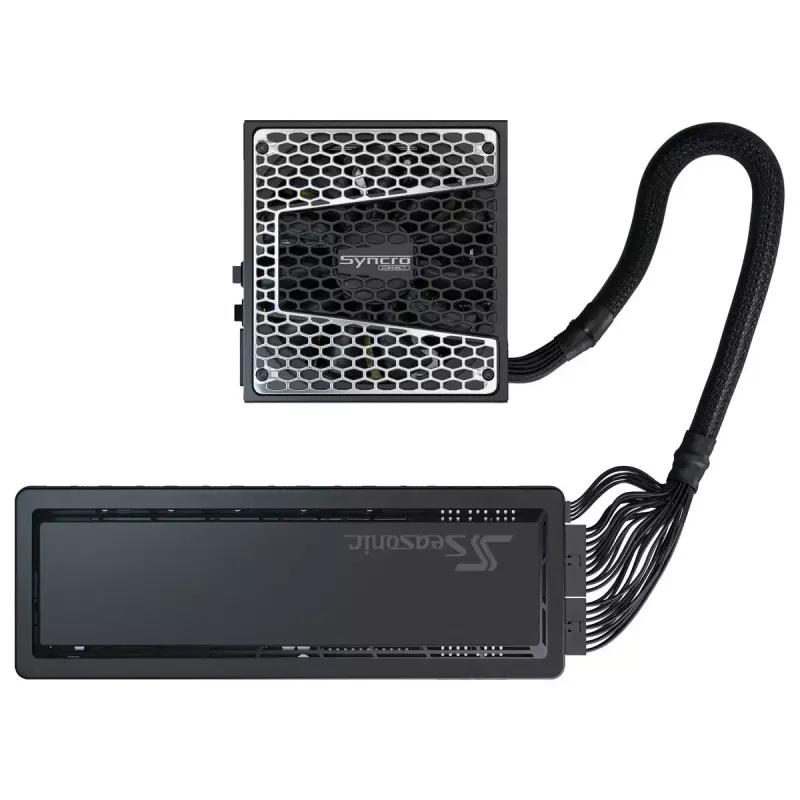

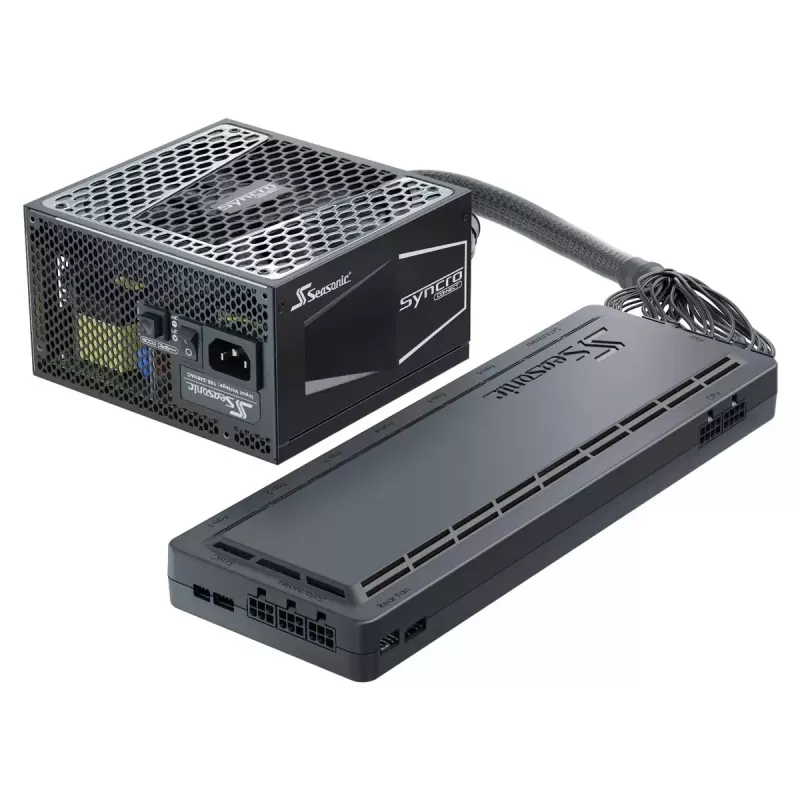

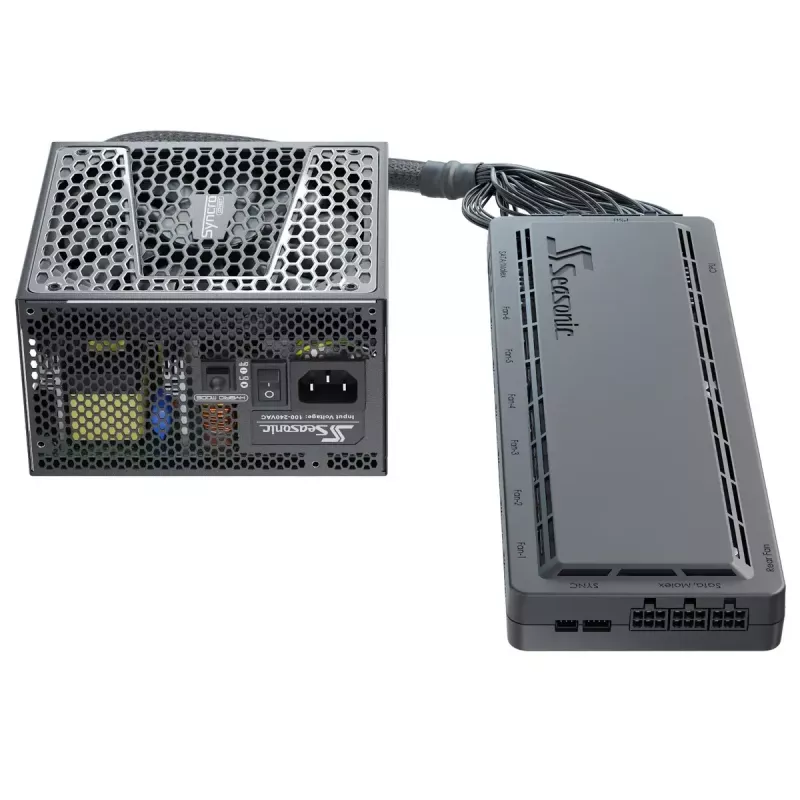

The SYNCRO Q704 combines a compact aluminium and tempered glass chassis with a dedicated CONNECT Module for cleaner internal routing and shorter component cables. Factory-installed Seasonic-Nidec dual ball-bearing fans offer quiet, efficient cooling and the case can accommodate up to eight fans for expanded setups. The SYNCRO power solution retains Seasonic features such as fully modular cables and efficient S3FC fan control, and the DGC-750/DGC-650 power units meet 80 PLUS Gold efficiency standards.

Suitable for

• Gaming and high-performance desktop builds requiring strong cooling and neat cable management
• Compact workstations using ATX, Micro ATX or ITX motherboards
• Custom water- or air-cooled systems with multiple fan or radiator configurations

Key specifications

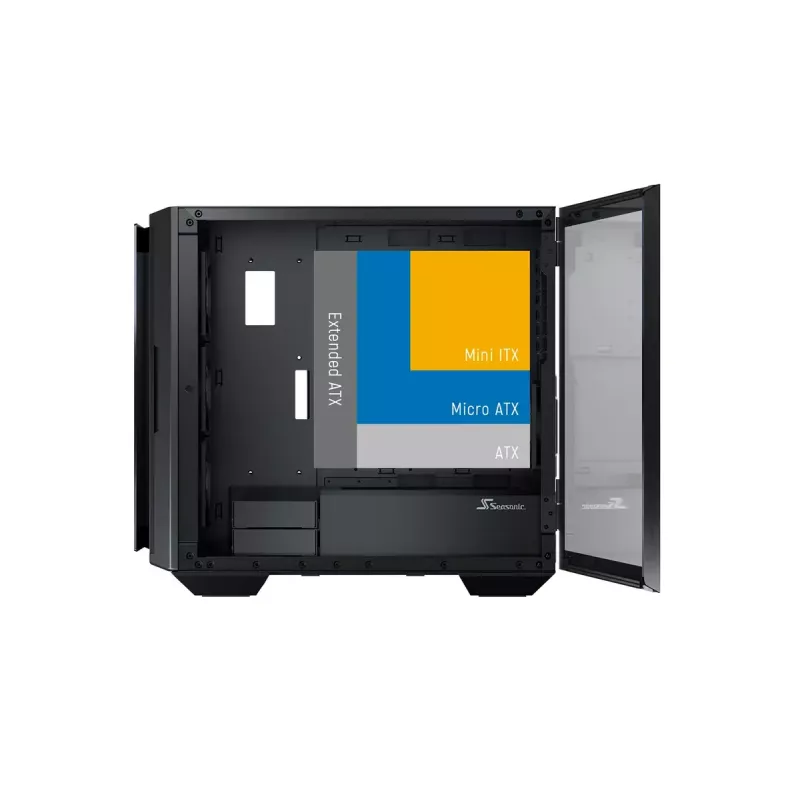

• Form factor: Midi Tower (ATX, Micro ATX, ITX support)
• Power supply: 750 W Seasonic SYNCRO (included), 80 PLUS Gold
• Materials: Aluminium body, tempered glass side panel, steel/plastic components
• Drive bays: 2 × 3.5" and 3 × 2.5"

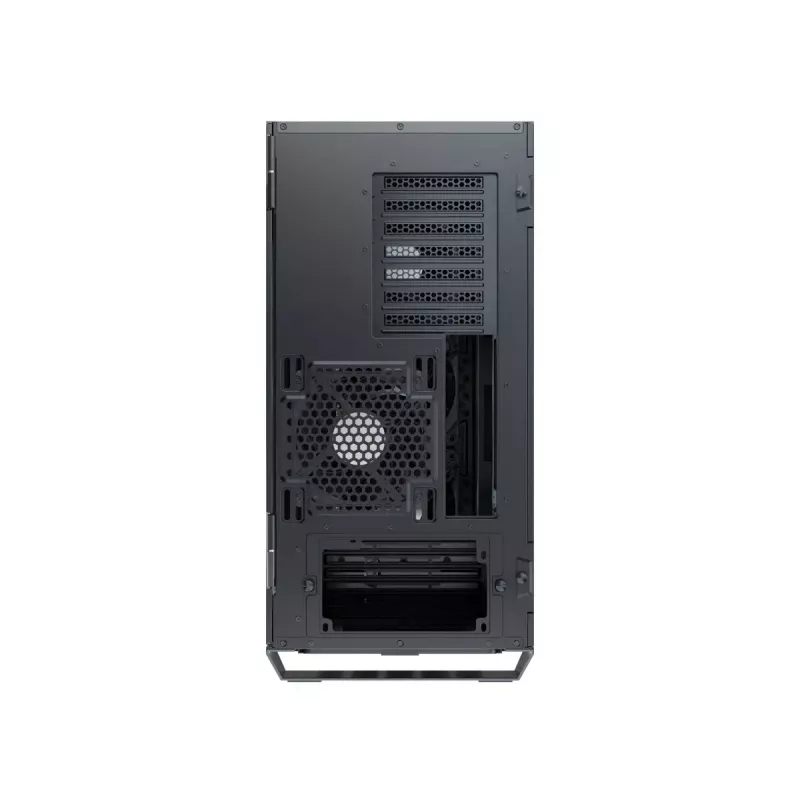

• Front/top/rear fan support: 120/140 mm; factory-installed 4 × Seasonic-Nidec fans; up to 8 fans supported

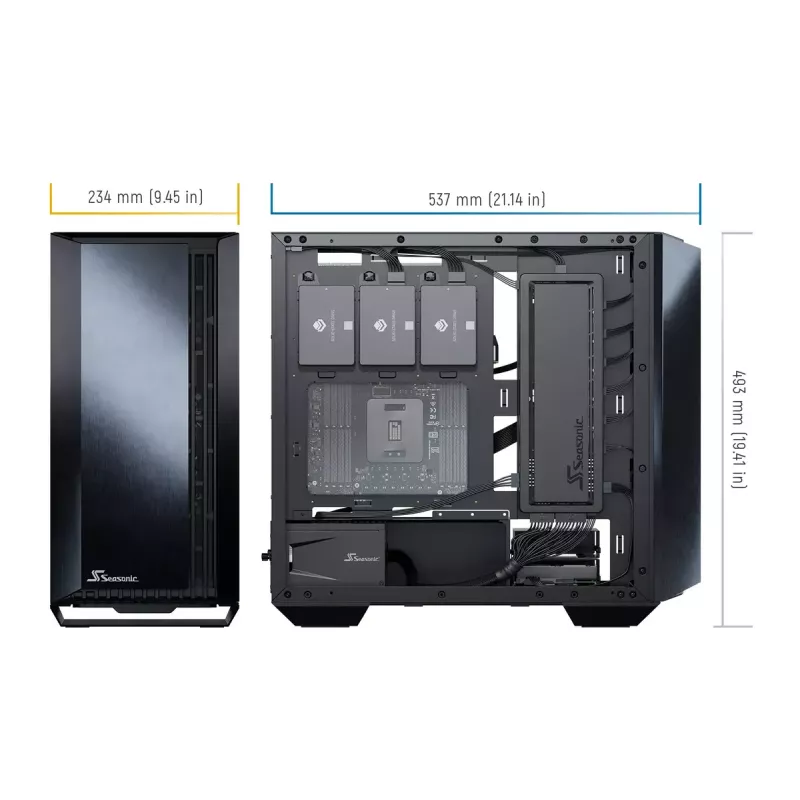

• Dimensions (W×D×H): 234 × 537 × 493 mm

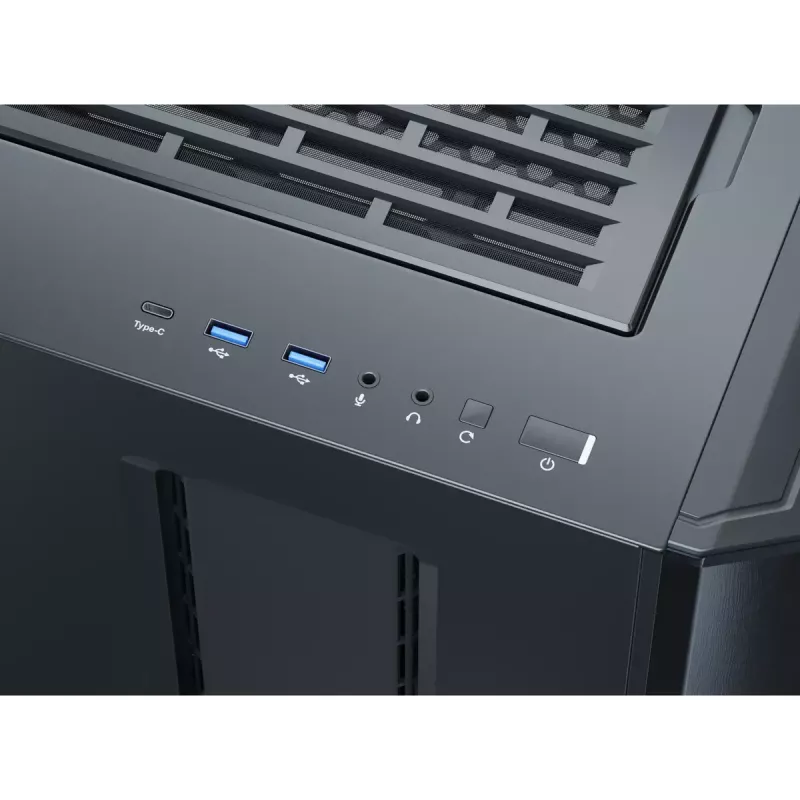

• Front I/O: 2 × USB 3.2 Gen 1 Type-A

How to use

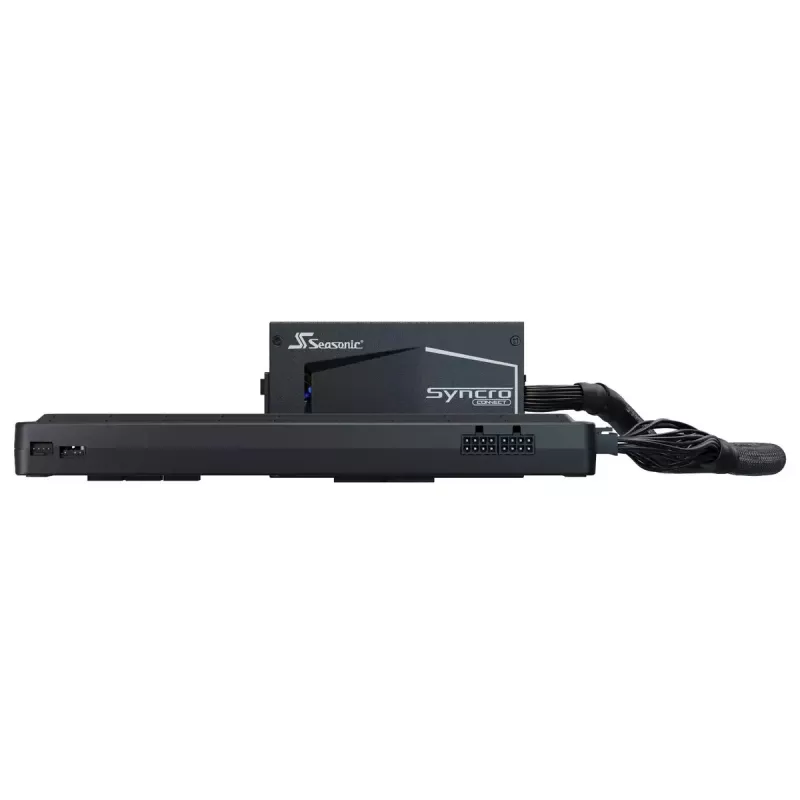

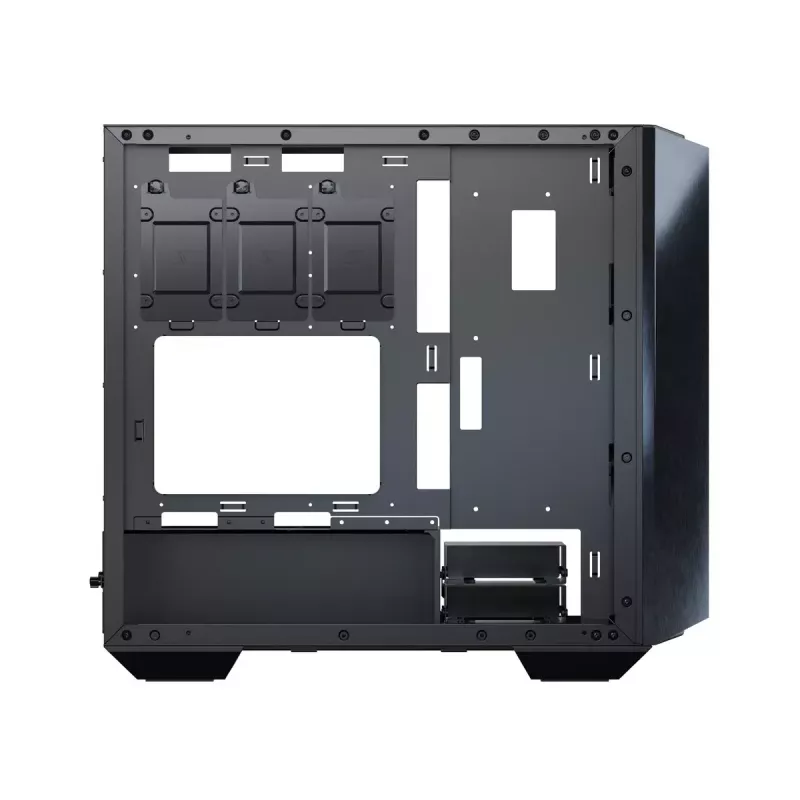

Install the motherboard (ATX/Micro ATX/ITX) on the tray and mount drives into the 3.5" or 2.5" bays as required. Connect components to the SYNCRO CONNECT Module using the provided fully modular cables to achieve shorter, neater routing; place the Seasonic SYNCRO power supply in its designated location and attach its modular cables to the CONNECT hub. Configure fan and radiator placements according to your cooling plan — the inverted ATX layout is intended to separate GPU heat from the CPU. Use the magnetic dust filters for easy removal and cleaning during routine maintenance.

Recommendations

For optimal airflow and temperature balance, route GPU cables to minimize obstruction of intake vents, maintain clean dust filters, and use a combination of intake and exhaust fans or radiators. When installing custom radiators, verify clearance and fan orientation in the Q704 to preserve the inverted ATX cooling benefits.
