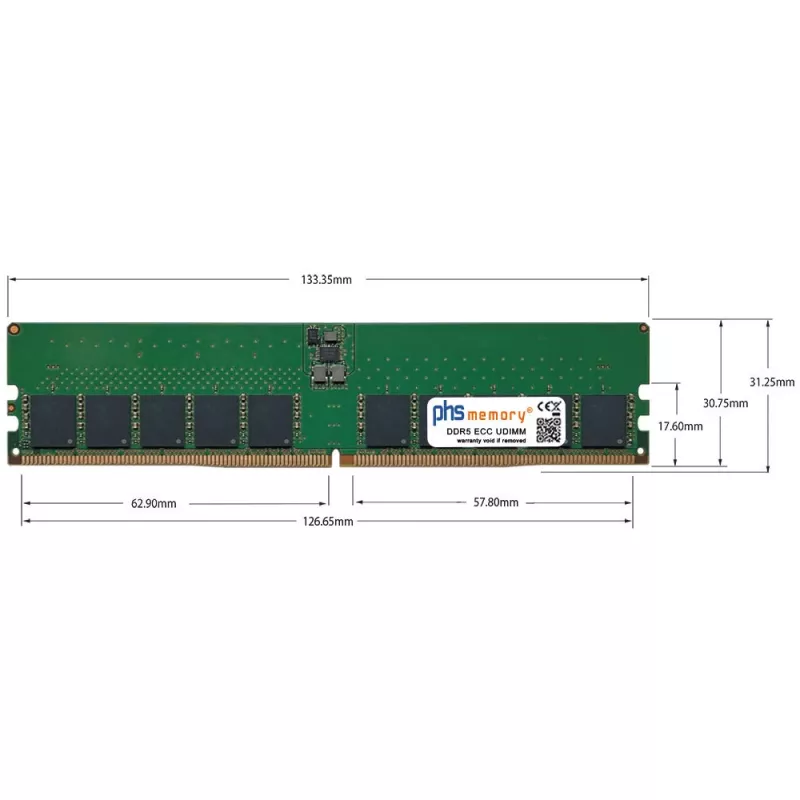

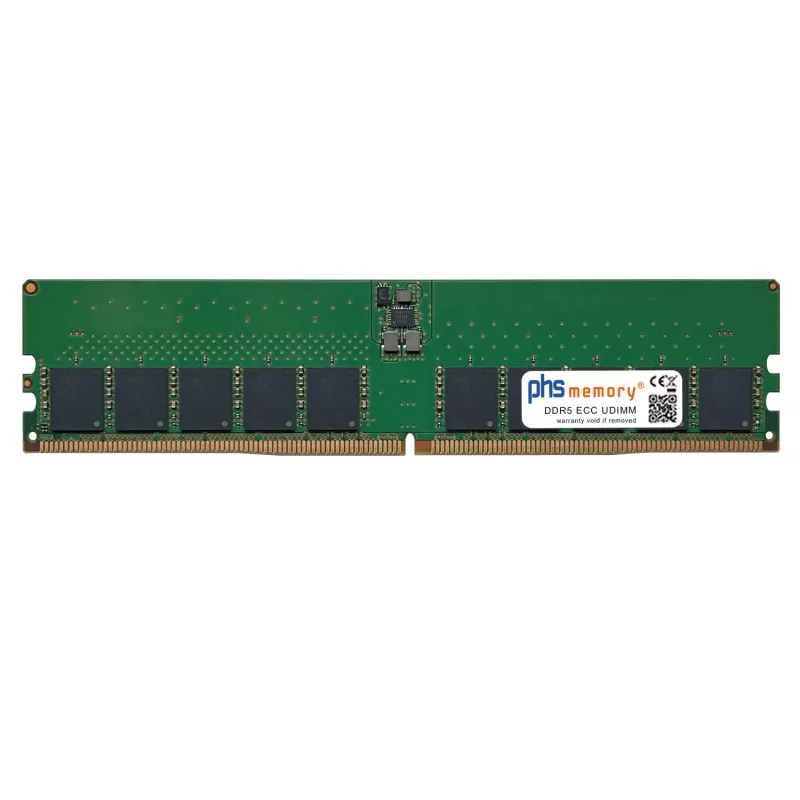

PHS-memory 32GB DDR5 UDIMM ECC 4800MHz PC5-38400E geheugenmodule voor Supermicro X13SCL-F (SP533439)

System administrators deploying Supermicro X13SCL-F motherboards in entry-level servers or workstations can rely on this 32GB DDR5 UDIMM ECC module for stable, error-corrected memory performance. It operates at 4800 MHz with a PC5-38400E rating, delivering a data transfer rate of 38.4 GB/s. The module is a single 32GB stick, leaving room for future expansion.

Key specifications

• Capacity: 32 GB
• Memory type: DDR5
• Module type: UDIMM (Unbuffered DIMM)
• Error correction: ECC
• Speed: 4800 MHz (PC5-38400E)
• CAS latency: CL40
• Voltage: 1.1 V
• Form factor: 288-pin DIMM
• Rank: 2Rx8 (Dual Rank x8)
• Features: On-die ECC, Module-level ECC
• JEDEC standard: Yes

Why choose it

ECC protection corrects single-bit memory errors, reducing the risk of data corruption and system crashes in always-on environments. DDR5 technology offers higher bandwidth and lower power consumption compared to DDR4, making it suitable for modern server platforms.

Ideal use cases

• Supermicro X13SCL-F based servers
• Entry-level workstations requiring data integrity
• Virtualization hosts with moderate memory demands
• Network-attached storage (NAS) systems

Good to know

The module is unbuffered, which is typical for single-socket server boards. It is specifically validated for compatibility with the Supermicro X13SCL-F, ensuring reliable operation. Installation is straightforward: align the notch, press firmly into the DIMM slot, and secure the side clips.
