Plateaubodem EFB Elektronik 691651FGR.8

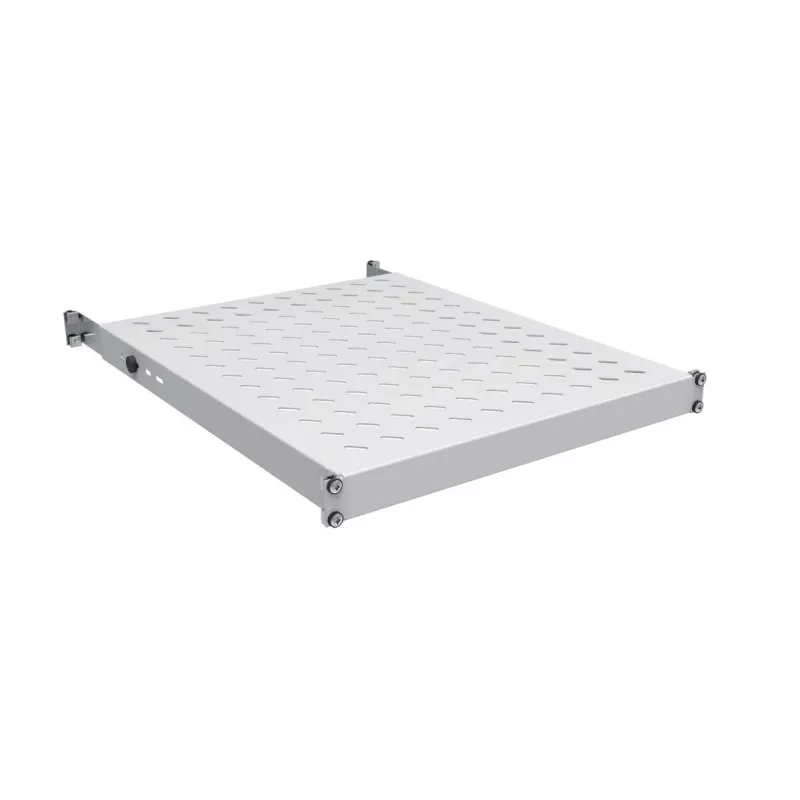

The EFB Elektronik 691651FGR.8 is a steel shelf for 19" network and server cabinets that provides a stable platform for devices and accessories. It is 482.6 mm wide (19"), has a nominal depth of 550 mm and an adjustable rear mounting depth range of 0–100 mm, allowing adaptation to different cabinet interiors. The shelf is finished in grey and is intended for front- and rear-profile mounting in standard 19" racks.

Advantages

Constructed from steel sheet for durability and load-bearing capacity, the shelf fits standard 19" mounting profiles and offers rear-sided mounting depth adjustment to accommodate varying cabinet depths. The grey finish provides a neutral, professional appearance suitable for network and server environments.

Suitable for

• Mounting non-rackmount equipment in 19" network and server cabinets
• Storing accessories, tools and small devices within racks
• Use in cabinets where rear mounting depth needs fine adjustment (0–100 mm)

Key specifications

• Brand: EFB Elektronik
• Model / MPN: 691651FGR.8
• EAN: 4049759252540
• Width: 482.6 mm (19")
• Depth (nominal): 550 mm
• Maximum depth adjustment (rear-sided): +0 .. 100 mm
• Material: Steel sheet
• Colour: Grey

How to use

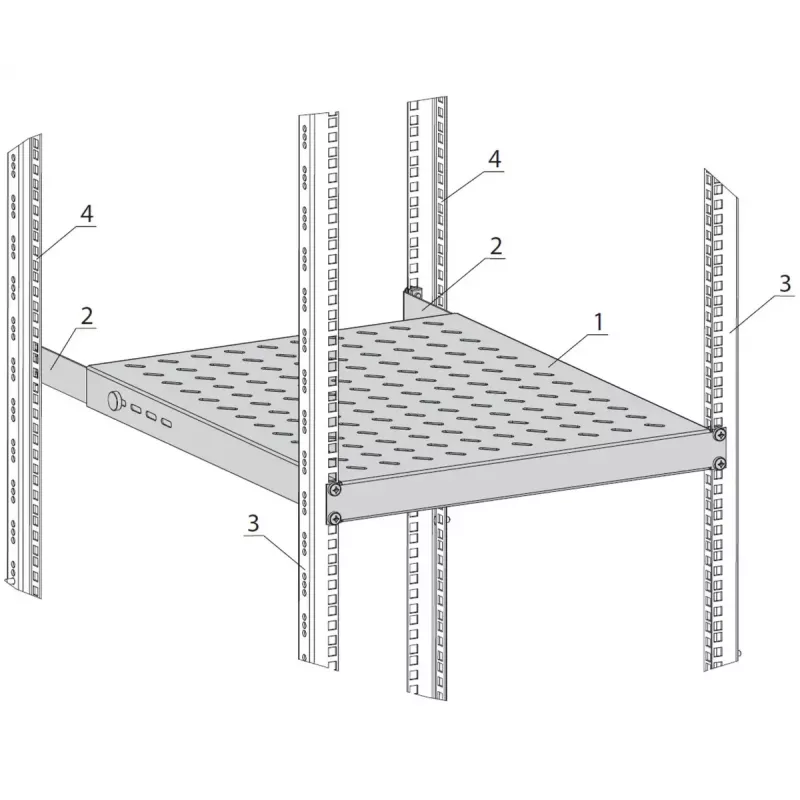

Mount the shelf in a 19" cabinet by securing it to the front and rear 19" profiles. Adjust the rear-sided mounting depth within the specified +0 to 100 mm range to align the shelf with the cabinet interior. Ensure all mounting screws are tightened and that the shelf is level before placing equipment on it. Observe the cabinet's maximum load ratings and distribute weight evenly across the shelf.

Recommendations

Verify compatibility with your cabinet’s mounting profiles and available depth before installation; use appropriate rack screws and, if necessary, additional support for heavy equipment.
