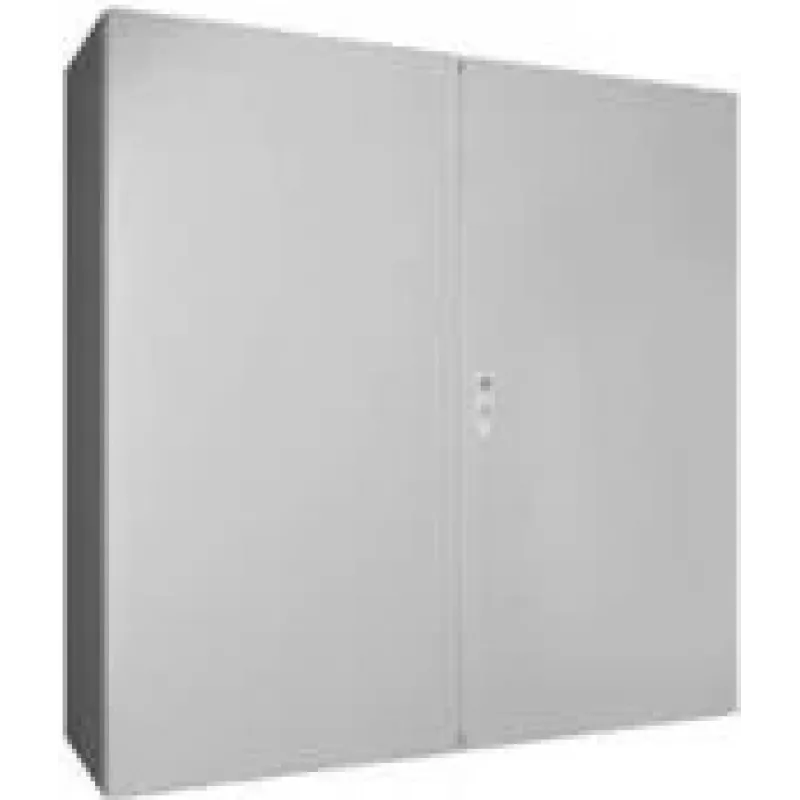

RITTAL AX 1116.000 compacte behuizing 1200x400x210mm plaatstaal lichtgrijs IP66

Industrial environments demand enclosures that protect sensitive electrical components from dust, moisture, and mechanical impact. The RITTAL AX 1116.000 compact enclosure provides a robust housing solution with IP66 protection and a NEMA 4 rating, ensuring reliable operation in demanding conditions.

Who is it for

This enclosure is intended for panel builders, system integrators, and maintenance engineers who need a durable, wall-mountable enclosure for control systems, distribution equipment, or instrumentation in factories, processing plants, and outdoor installations.

Main features

• Sheet steel construction with dip-primed, powder-coated surface for corrosion resistance
• Light grey (RAL 7035) finish for a clean, professional appearance
• Single door with 130° opening angle and 3 mm double-bit lock for secure access
• Includes zinc-plated mounting plate for easy component installation
• Multi-piece gland plate for flexible cable entry
• Compact size: 1200 mm height, 400 mm width, 210 mm depth

Specifications

• Material: Sheet steel
• Material thickness (enclosure): 1.25 mm
• Material thickness (door): 1.5 mm
• Material thickness (mounting plate): 2.0 mm
• Colour: Light grey (RAL 7035)
• Protection rating: IP66
• NEMA rating: NEMA 4
• Height: 1200 mm
• Width: 400 mm
• Depth: 210 mm
• Mounting type: Wall mounting
• Approvals: UL, cUL, TÜV, EAC

Tips

When installing, ensure the mounting surface is flat and capable of supporting the enclosure's weight. Use appropriate cable glands with the multi-piece gland plate to maintain the IP66 protection rating.
