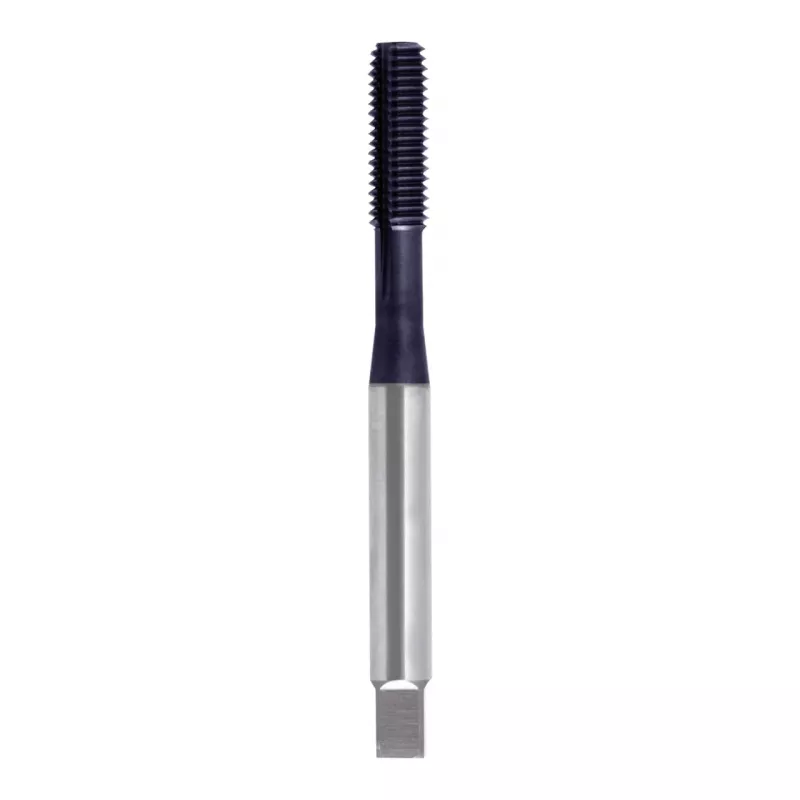

RUKO GEF-DIN2174-HSSCo-TiAlN-60°-M-6x1,0 machinedraadtap

For machinists and metalworking professionals who need reliable thread cutting in through holes, the RUKO GEF-DIN2174-HSSCo-TiAlN-60°-M-6x1,0 machine tap delivers precision and durability. Engineered for high-performance tapping in a range of materials, this spiral point tap pushes chips forward, making it ideal for through-hole applications.

Key specifications

• Thread type: Metric
• Nominal diameter: M6
• Thread pitch: 1.0 mm
• Standard: DIN 2174
• Material: HSSCo (High-Speed Steel Cobalt)
• Coating: TiAlN (Titanium Aluminum Nitride)
• Thread tolerance: ISO 2 (6H)
• Thread angle: 60°
• Flute type: Spiral point
• Chamfer form: Form C (2-3 threads)
• Overall length: 90 mm
• Thread length: 18 mm
• Shank diameter: 6.0 mm
• Square drive: 4.9 mm
• Number of flutes: 3
• Recommended materials: Steel (up to 1200 N/mm²), stainless steel, cast iron, non-ferrous metals, titanium alloys
• Coolant recommendation: Emulsion, oil, air, dry

Why choose it

The TiAlN coating provides high hardness and heat resistance, extending tool life even in demanding conditions. The cobalt-alloyed high-speed steel base offers excellent toughness and wear resistance. The spiral point design efficiently evacuates chips forward, reducing clogging and improving thread quality in through holes.

Ideal use cases

• Machine tapping of through holes in steel components
• Threading stainless steel parts in manufacturing
• Creating metric threads in cast iron housings
• Precision tapping in non-ferrous metals and titanium alloys

Good to know

Designed for machine use with a reinforced shank for stable clamping. The Form C chamfer (2-3 threads) provides a good balance of easy starting and thread depth. Suitable for use with emulsion, oil, air, or dry machining conditions.
