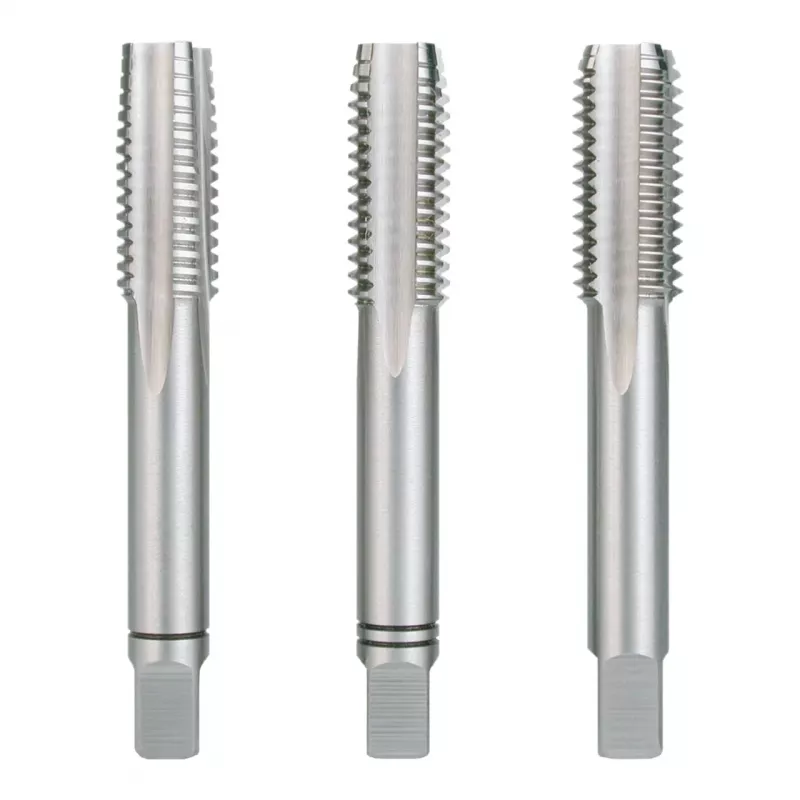

RUKO HGB-DIN352-HSS-M27x3,0mm handdraadtap

Hand tap for cutting metric ISO threads M27 with a pitch of 3.0 mm, manufactured to DIN 352 from high-speed steel. The straight flute design with four flutes ensures reliable chip evacuation in through and blind holes.

Advantages

High-speed steel provides good wear resistance and cutting performance in unalloyed and alloyed steels up to 800 N/mm², cast iron, and non-ferrous metals. The bright finish reduces friction during tapping.

Suitable for

• General purpose hand tapping in through holes and blind holes
• Unalloyed and alloyed steels up to 800 N/mm²
• Cast iron and non-ferrous metals

Key specifications

• Thread standard: Metric ISO thread
• Nominal diameter: M27
• Pitch: 3.0 mm
• Standard: DIN 352
• Material: High-speed steel (HSS)
• Tolerance class: 6H
• Cutting direction: Right-hand
• Flute type: Straight flute
• Number of flutes: 4
• Overall length: 125 mm
• Thread length: 50 mm
• Shank diameter: 20.0 mm
• Square drive size: 16.0 mm
• Surface finish: Bright (uncoated)

Recommendations

Use with appropriate tapping lubricant for best results. Ensure the tap is aligned perpendicular to the workpiece to avoid thread damage.
