RUKO HGB handtap-set DIN 5157 HSS-G 3/4 x 14, 2-delig

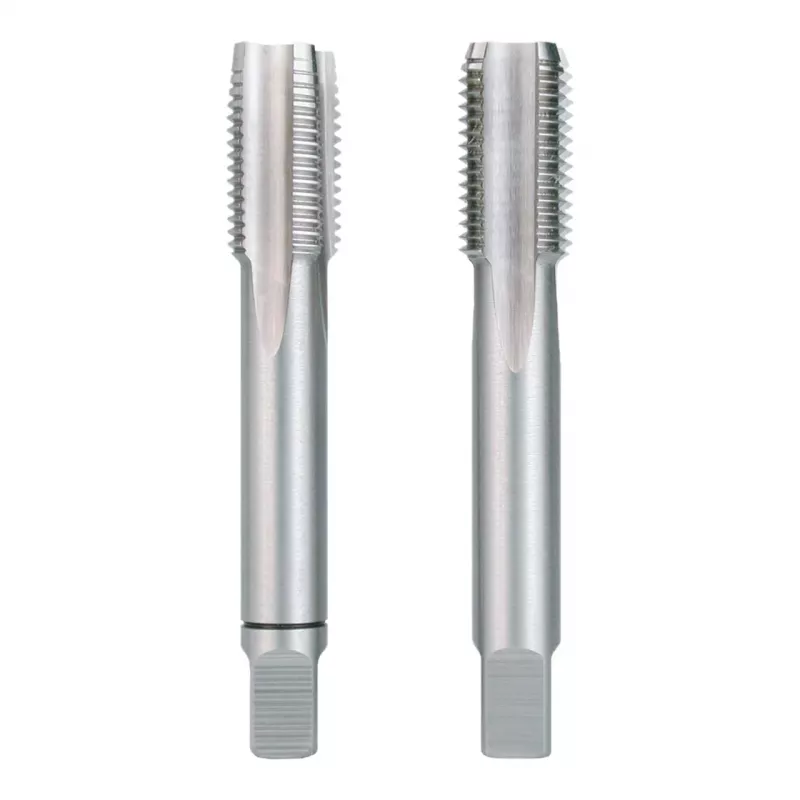

This 2-piece hand tap set cuts G 3/4 x 14 parallel pipe threads (BSP) in unalloyed and alloyed steels, malleable cast iron, non-ferrous metals, and plastics. Manufactured from bright HSS-G high-speed steel to DIN 5157, the set includes a taper tap for starting and a plug tap for finishing, both with right-hand cutting direction and ISO 2 (6H) tolerance for precise internal threads.

Advantages

HSS-G high-speed steel provides high wear resistance and long tool life. The bright, uncoated surface reduces friction and improves chip evacuation. The set covers both roughing and finishing in one package, ensuring consistent thread quality.

Suitable for

• Cutting internal G 3/4 pipe threads in steel and cast iron
• Threading non-ferrous metals and plastics
• Manual threading applications with a tap wrench

Key specifications

• Thread standard: G (BSP parallel)
• Nominal size: 3/4 inch, 14 TPI
• Material: HSS-G high-speed steel
• Standard: DIN 5157
• Total length: 90 mm, thread length: 30 mm
• Shank diameter: 14 mm, square drive: 11 mm
• Recommended core hole diameter: 24.117 mm
• Tolerance: ISO 2 (6H)
• Cutting direction: right-hand

Recommendations

Use with a suitable tap wrench and cutting oil for best results. Pre-drill the core hole to 24.117 mm. For through holes, finish with the plug tap; for blind holes, use the taper tap first.
