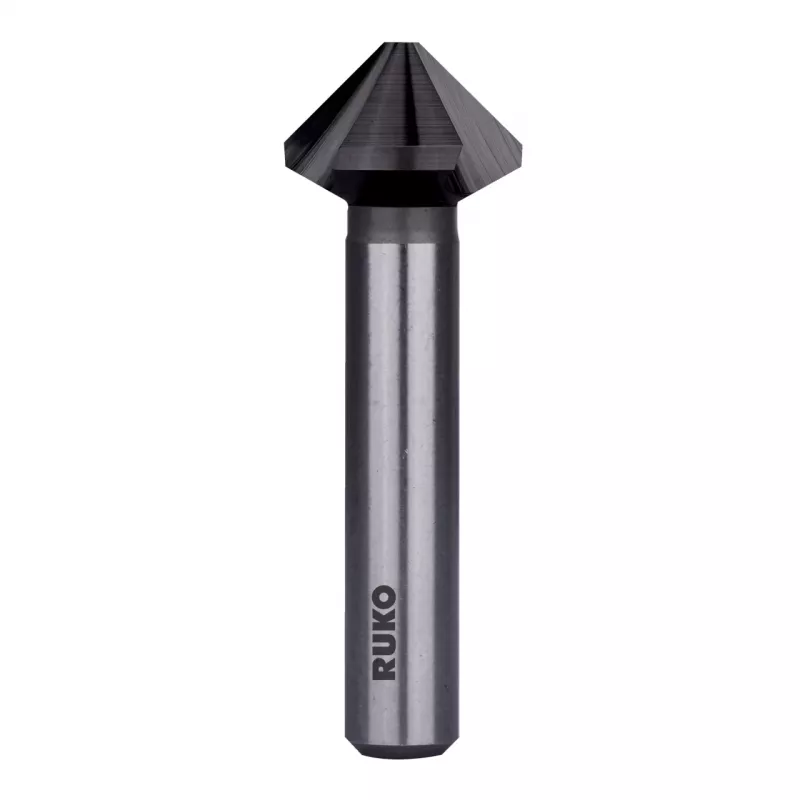

RUKO KES-DIN335-HSS-TiAlN-90°-Ø13,4mm verzinkboor

Machinists and metalworkers use this RUKO countersink to deburr and chamfer holes in steel, stainless steel, cast iron, non-ferrous metals, and plastics. The 90° cutting angle creates a standard countersink for flat-head screws, while the TiAlN coating provides high heat and wear resistance for extended tool life.

Key specifications

• Tool type: Countersink
• Standard: DIN 335 C
• Material: HSS (High-Speed Steel)
• Coating: TiAlN (Titanium Aluminum Nitride)
• Cutting angle: 90°
• Cutting diameter (d1): 13.4 mm
• Shank type: Cylindrical
• Shank diameter (d2): 10 mm
• Overall length (l1): 56 mm
• Number of flutes: 3
• Direction of cut: Right-hand
• Application: Deburring, chamfering, countersinking
• Suitable materials: Steel, stainless steel, cast iron, non-ferrous metals, plastics
• Manufacturing process: Ground profile
• Tolerance: h8
• Heat resistance: High
• Wear resistance: High
• Coolant supply: External

Why choose it

The TiAlN coating significantly increases the tool's resistance to high temperatures and wear, making it suitable for demanding machining tasks. The three-flute design ensures smooth cutting and good chip evacuation.

Ideal use cases

• Deburring drilled holes
• Chamfering edges for screw heads
• Countersinking in metalworking and fabrication

Good to know

The cylindrical shank with h8 tolerance fits standard drill chucks and collets. External coolant supply is recommended during operation.
